YT-59955

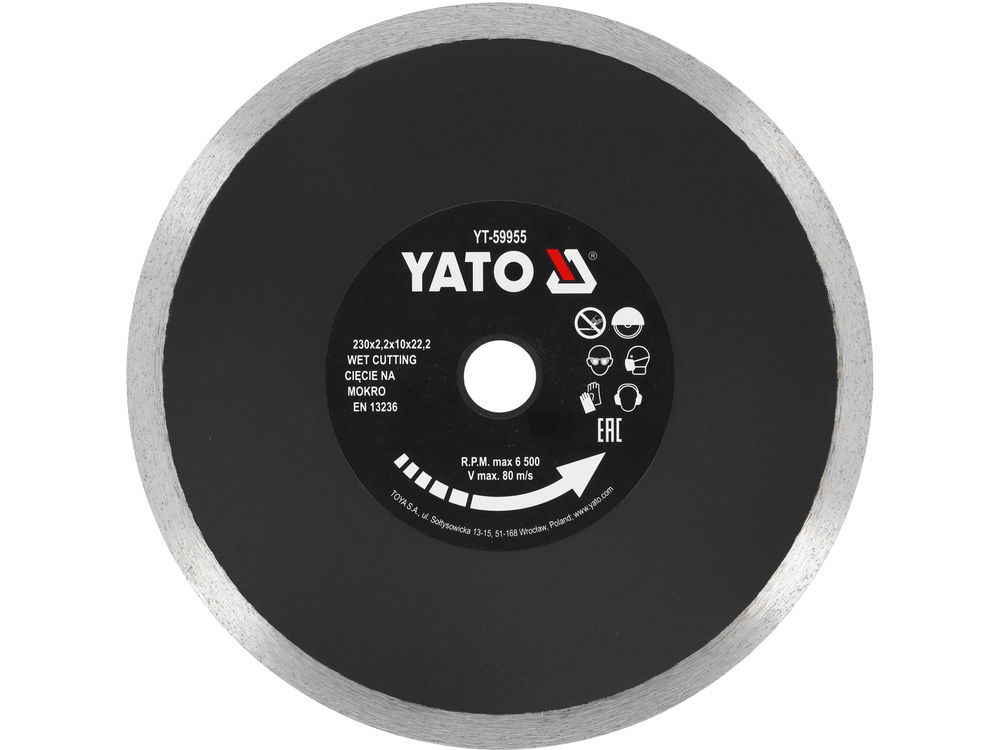

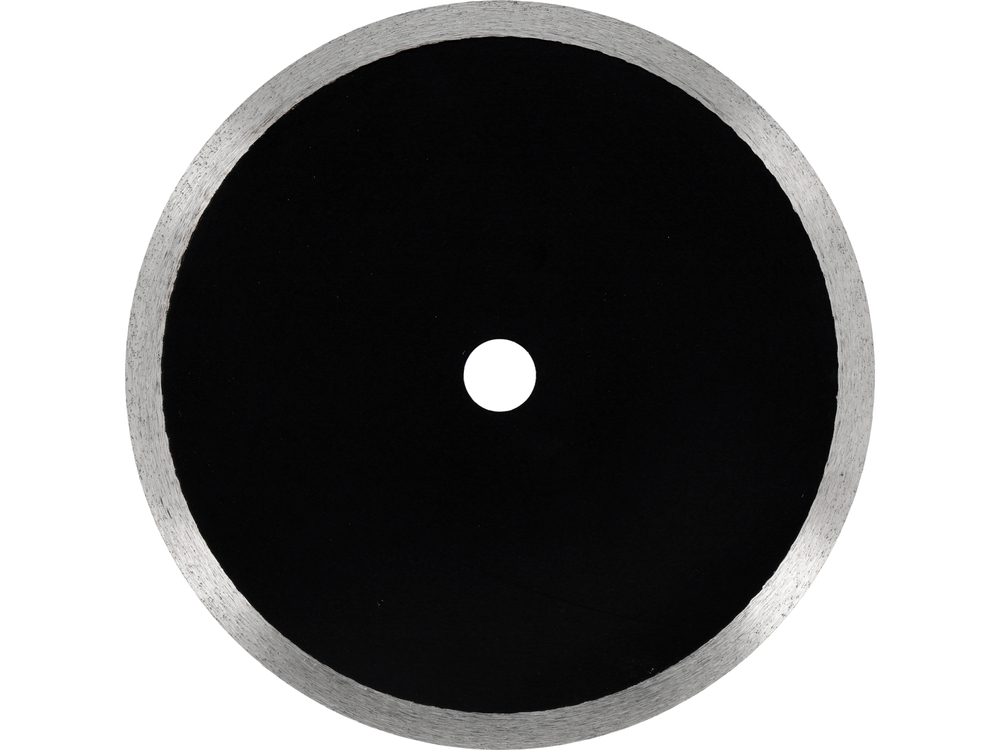

DIAMOND BLADE FOR TILES CONTINUOUS RIM 230MM
Brand
Symbol
YT-59955
Producer code
5906083044489
Series
Diameter
230 mm
Mounting diameter
22.2 mm
The height of the cutting segment
10 mm
Cutting segment thickness
2.2 mm
Chemical composition of the cutting segment
Fe 20%, Cu 55%, SN 7%, Ni 8%, every 10%, diamond coating 15%
Material
steel 65Mn
Turnout
6500 min⁻¹
Linear speed of the shield
80 m/s
Application
ceramic tiles, tiles, stone tiles
Type of work
wet
The blade is designed for precise and clean dry or wet cutting.
- high 10 mm segment increases the life of the disc
- reduced cross-sectional area allows to cut faster and more precisely, without chipping the cut edges and with less load on the grinder
- segment with optimally selected cobalt hardness and selected A-grade industrial diamond granules
- clean dry and wet cutting of stoneware and ceramics
