YT-59981

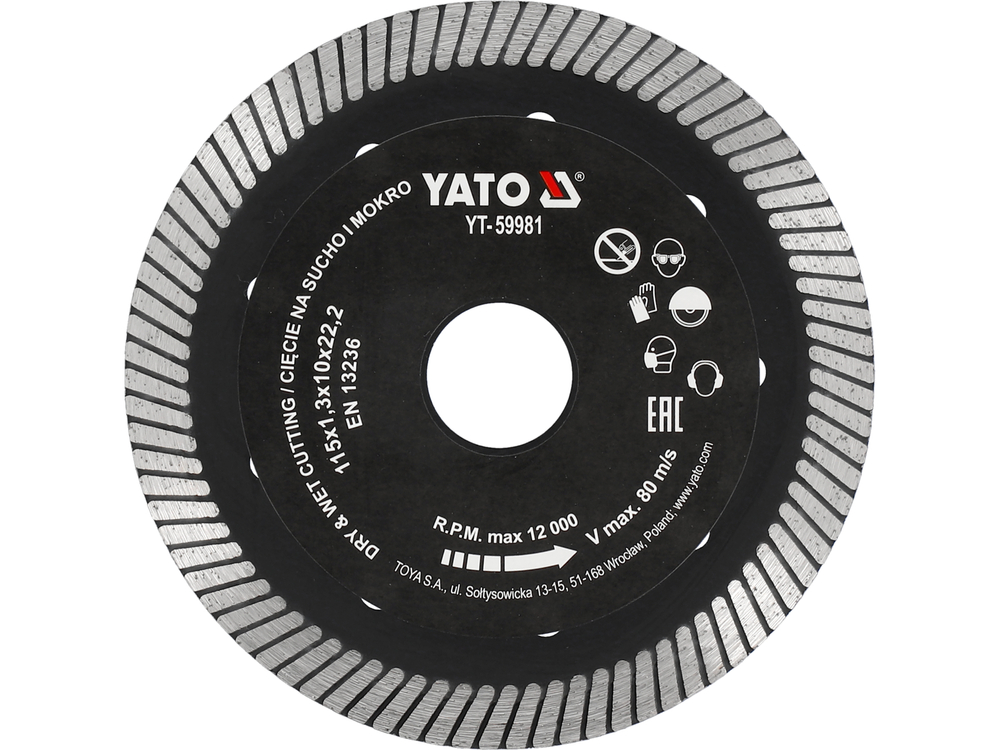

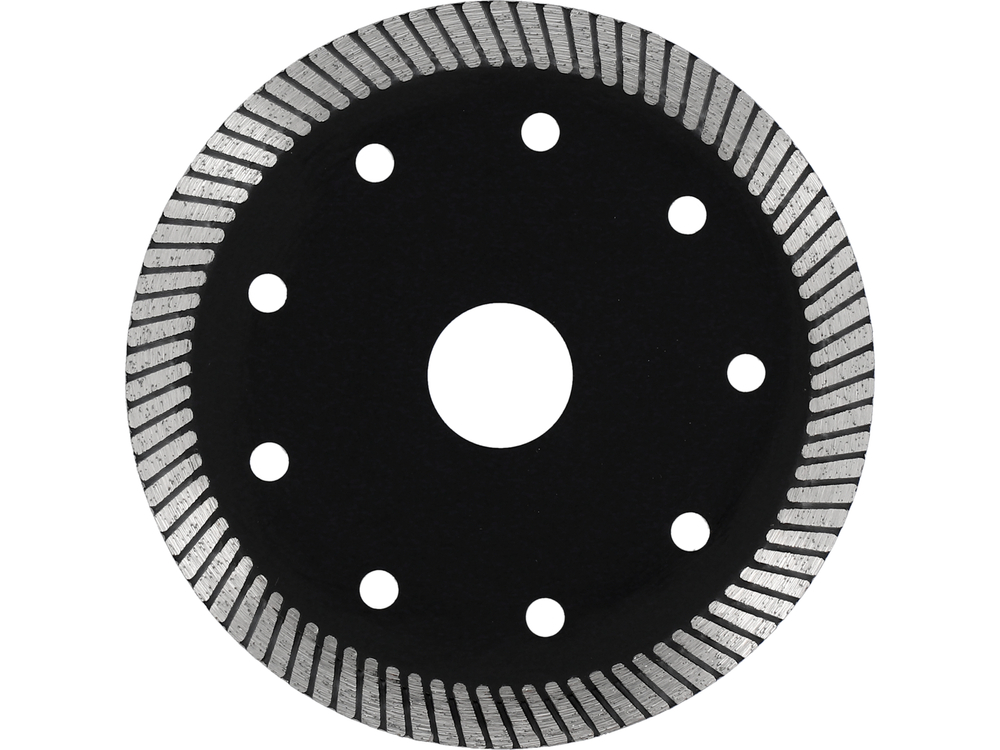

DIAMOND BLADE TURBO FOR HARD COMPOSITE TILES 115MM
Brand
Symbol
YT-59981
Producer code
5906083044557
Series
Diameter
115 mm
Mounting diameter
22.2 mm
The height of the cutting segment
10 mm
Cutting segment thickness
1.3 mm
Chemical composition of the cutting segment
Fe 20%, Cu 55%, SN 7%, Ni 8%, every 10%, diamond coating 15%
Material
steel 65Mn
Turnout
12000 min⁻¹
Linear speed of the shield
80 m/s
Application
reinforced concrete, granite, clinker, silicates
Type of work
dry, wet
The blade is designed for precise and clean wet cutting .
- high 10 mm segment increases the life of the disc
- reduced cross-sectional area allows to cut faster and more precisely, without chipping the cut edges and with less load on the grinder
- segment with optimally selected cobalt hardness and selected A-grade industrial diamond granules
- very fast high quality cutting
- easy straight cutting "by hand" with an angle grinder
