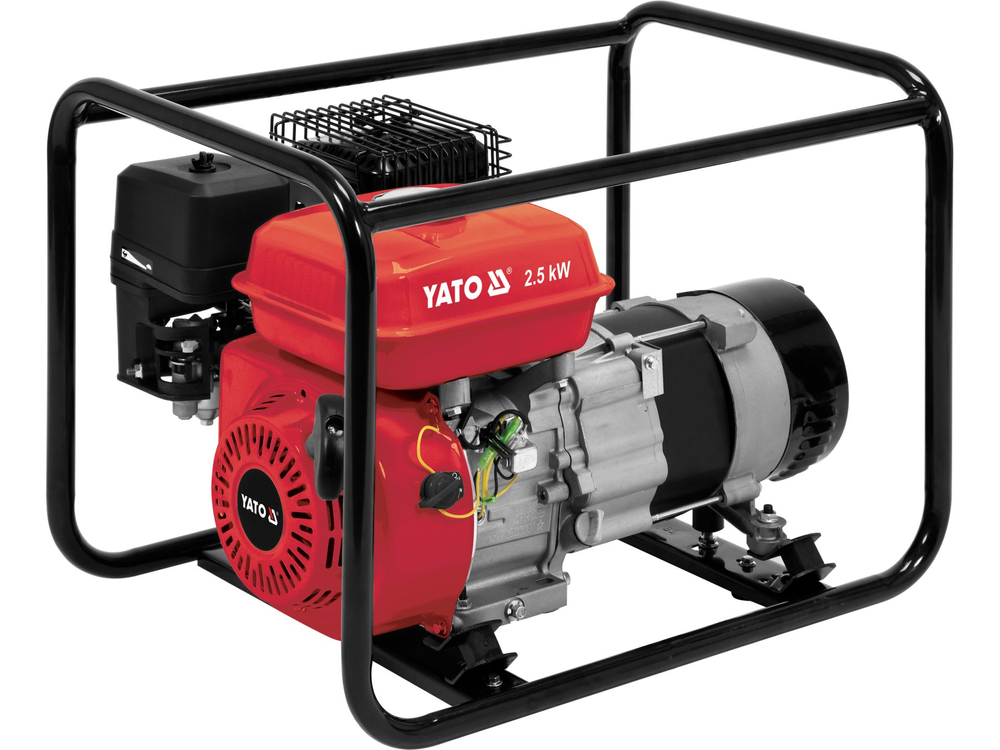

4-stroke air-cooled generator. Indispensable wherever the lack of electric power does not allow to carry out construction, cleaning and road works. Fuel tank with a capacity of 3.6 l enables the device to operate for 8 hours.

• AVR voltage stabilization protects powered electrical equipment from damage and ensures that the unit reaches full power
• thermal protection against overload
• motor type: OHV
• durable and easy-to-use starting system
• overheat-resistant winding
• frame made of powder-coated 22 mm thick tubing
• socket: 2 x 230 V
• noise level: 95 dB
• fuel type: unleaded gasoline

The generator has possibility to work in economy mode, then the engine speed is automatically regulated depending on the connected load. This reduces noise and fuel consumption.

Parameters:

Generator:

• Rating frequency [Hz]: 50
• COP generator power [W]: 2500
• maximum power (S2 5 min) [W]: 2700
• power factor: 1.0
• rated current (A.C.) [A]: 10.9
• electrical insulation class: I
• enclosure protection (IP) rating: IP23M
• performance class: G1
• performance class: A

Motor:

• Number of cylinders: 1
• Number of strokes: 4
• Fuel type: unleaded gasoline
• type of oil [SAE]: 15W-40
• Fuel consumption (at 75% load) [l/h]: 2.54
• Engine capacity [cm3]: 196
• maximum power [kW]: 2.5
• maximum rpm [min-1]: 3600
• cooling: powietrwith
• fuel tank capacity [l]: 3.6
• oil tank capacity [l]: 0.6
• spark plug type: F7RTC

Equipment:

• Dimensional dimensions (L x W. x height) [mm]: 585 x 425 x 425
• weight [kg]: 38
• operating temperature range [deg. C]: 0 - +40
• maximum operating altitude [m above sea level]: 1000
