YT-85460
POWER GENERATOR 5500W AVR
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Moc maksymalna
5500 (S2 5 min) W
Power
4250 W
Voltage
230 a.c., 400 a.c. (3P/N/PE), 12 d.c. V
Frequency
50 Hz
Engine (motor) capacity
389 cm³
Socket quantity
3 (230 a.c. x2, 400 a.c.)
Fuel tank capacity
25 l
Fuel type
unleaded petrol
Oil tank capacity
1.1 l
Oil type
10W-40
Max. fuel consumption
4.27 l/h
Direct current
8.3 A
Alternating current
5.2 A
Wheels
yes
Wheel quantity
2
Transportation holder
yes
Handle quantity
2
Dimensions
680x510x540 mm
Cooling
air
Automatic voltage regulation
yes
Engine (motor) type
CP188F
Ignition plug type
F7RTC
Max. engine (motor) power
7.5 kW
Max. engine (motor) rotations
3600 min⁻¹
Idling speed engine (motor) rotations
1800 min⁻¹
Cylinders number in engine (motor)
1
Strokes number in engine (motor)
4
Compression degree
8.5 : 1
Power factor
1
Working temperature range
0~40 ˚C
Max. operating altitude
1000 m n.p.m.
Quality class
A
Performance class
G1
Electric insulation class
I
Protection grade
IP23M
Acoustic pressure
75.0 ± 2.62 dB(A)
Acoustic power
93.7 ± 2.62 dB(A)
Weight
85 kg
Symbol
YT-85460

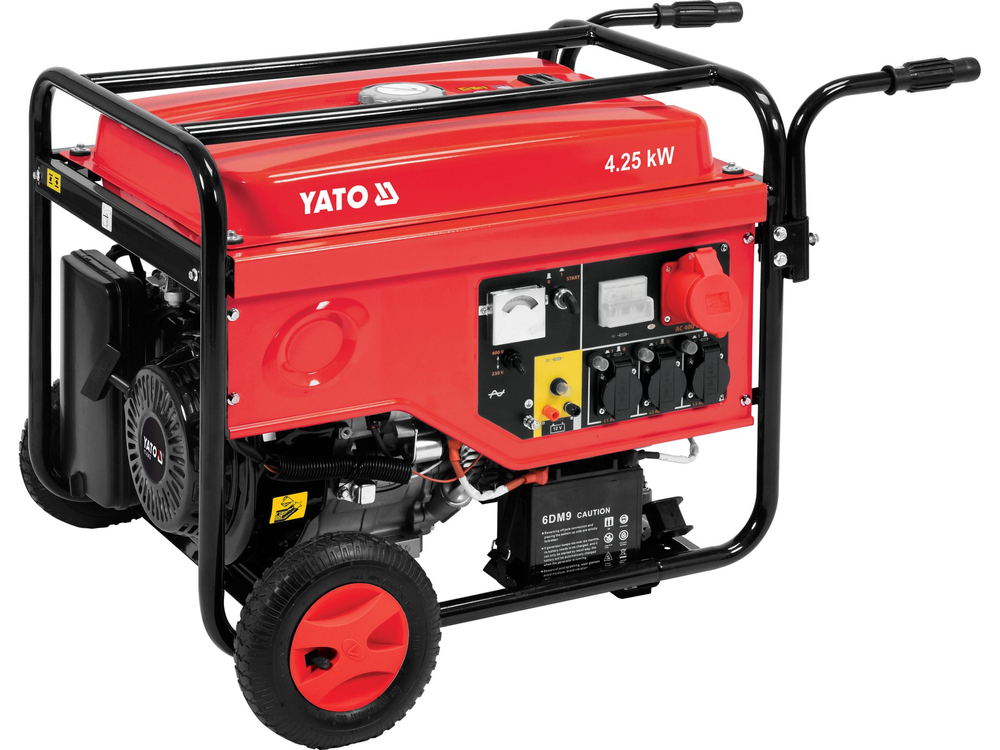

A high-powered generator set, suitable for operation in harsh conditions and under full load. Its design makes it possible to supply power to buildings and machinery, for example, during prolonged network failures or wherever both 1-phase (230 V) and 3-phase (400 V) power is needed. Useful for construction sites, repair services and farms.
- starting system with a key or traditionally - with a cable
- possibility to connect high-power devices, such as a welder, concrete mixer, brick saw, plastering unit or pump
- AVR voltage stabilization
- 4-stroke OHV engine
- insulated copper winding protected against overheating thanks to thermal cut-out switch 10
- maximum alternator power: 5500 W, constant power: 4250 W
- 3 230 V sockets and 1 400 V socket
- oil type: SAE 10W-40
- spark plug type: F7RTC spark plug
- handles and pumped wheels for easy transport
