YT-82350
DRYWALL SANDER 710W 215MM WITH EXTENSION
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
710 W
Rotations
600-1500 (disc), 3000-6000 (delta) min⁻¹
Voltage
230-240 V a.c.
Frequency
50 Hz
Diameter of the disc for fixing discs
225 mm
Sanding disc diameter
210, 215, 225 mm
Spindle thread size
M6
Length
≤4 m
Vacuum self suction system
yes
Electronic rotation adjustment
yes
Electric insulation class
II
Protection grade
IP20
Acoustic pressure
88.0 ± 3.0 dB(A)
Acoustic power
99.0 ± 3.0 dB(A)
Vibrations
3.48 ± 1.5 / 3.51 ± 1.5 m/s²
Weight
3.39 kg
Set includes
grinder, head with disk, delta head, extension, snake, sandpaper disk x6 (P60, P80, P100, P120, P180, P240), sheet of sandpaper x6 (P60, P80, P100, P120, P180, P240)
Application
plaster, plasters
Symbol
YT-82350

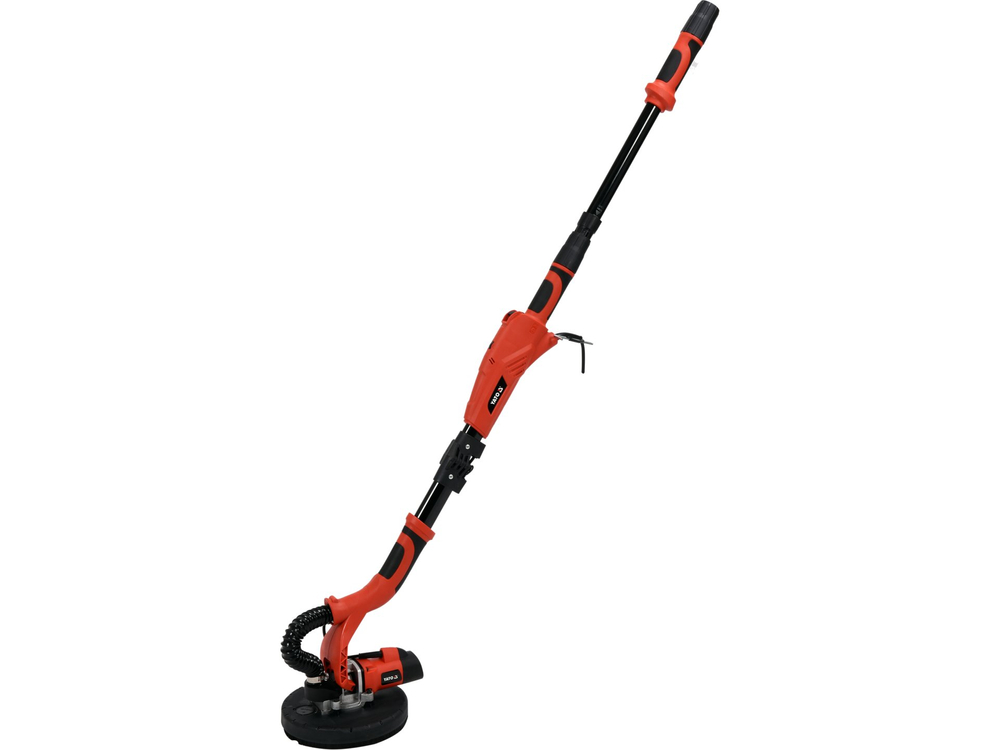

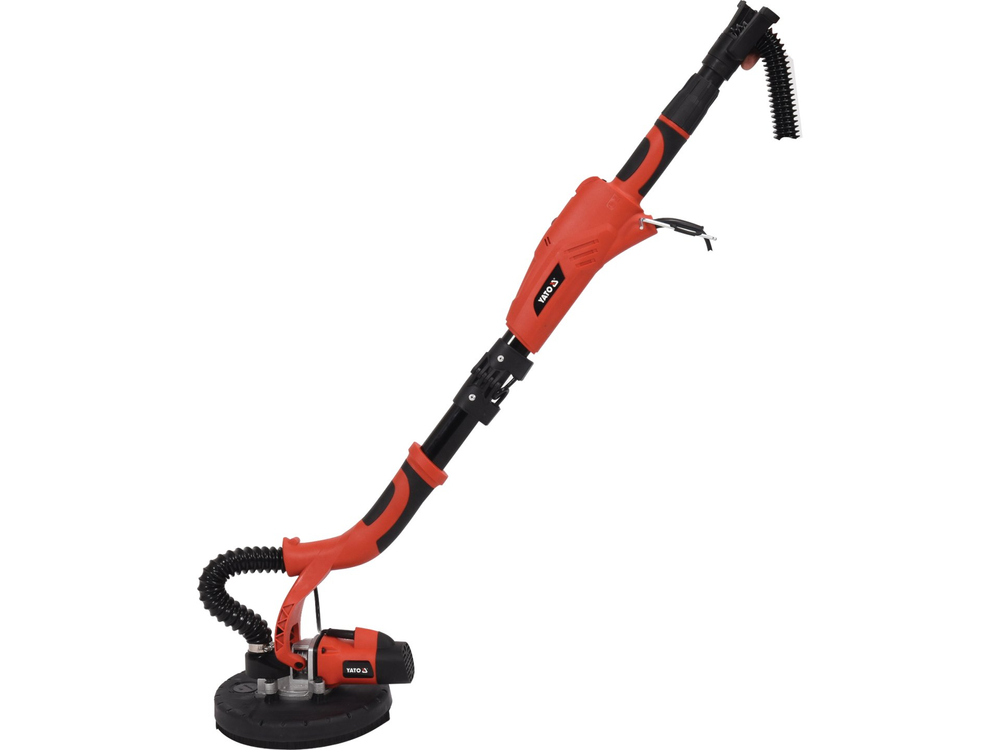

Plaster grinder 710w on boom with disc 215mm
Grinder on an extension arm designed for grinding gypsum drywall and mesh backing plaster used in polystyrene insulation systems. The extension arm makes it easy to grind walls and ceilings up to a height of 4 m without the need for platforms and ladders.
- Allows sanding of surfaces at any angle

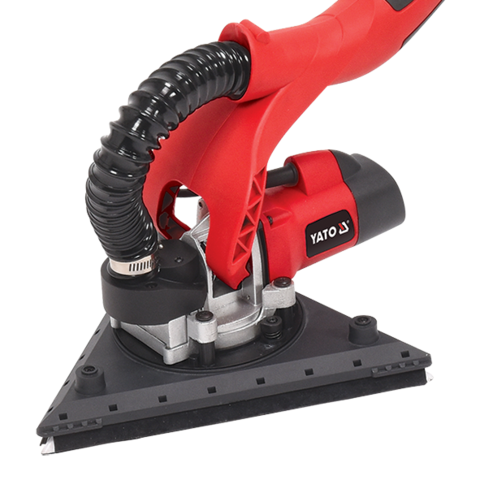

- additional triangular head makes it easier to sand corners
- balanced center of gravity prevents strain on the operator when working at full tool length
- effective dust extraction system
- possibility to connect with a hose vacuum cleaner YT-85715 equipped with a filter shaker with a capacity of 30 L
- robust drive housing
- motor protected against dust and dirt
- large diameter of the disk (225 mm) accelerates smoothing of smoothness
- stepless speed adjustment within the range of 600-1500 rpm (round head) and 3000-6000 rpm (triangular head)

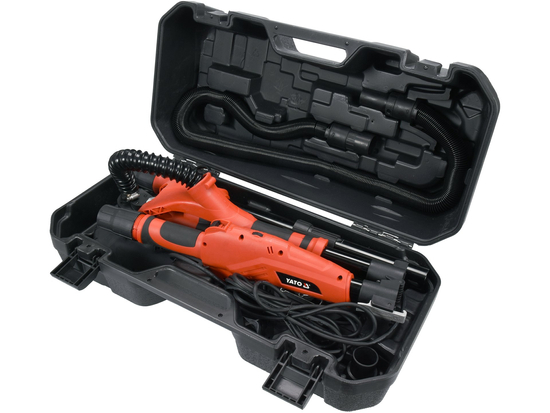

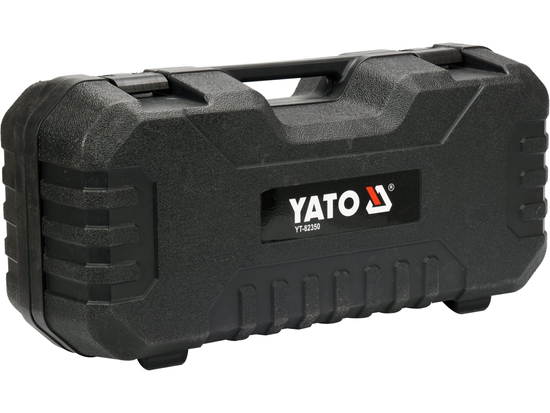

- packaged in a sturdy carrying case
Parameters:
- mains voltage [V]: 230 - 240
- rated power [W]: 710
- rated speed (disk) [min-1]: 600 - 1500
- rated oscillation (delta) [min-1]: 3000 - 6000
- spindle size: M6
- disc diameter for disc mounting [mm]: 215
- diameter of sandpaper discs [mm]: 225 / 215 / 210
- weight [kg]: 3,39
- degree of protection: IP20
- the grinder has a folding boom, which saves space during storage, as well as facilitates transportation
- the grinder is equipped with a flexible hose, which allows you to connect the grinder to a dust extraction system such as an industrial vacuum cleaner
- the on/off switch is equipped with a locking mechanism that allows it to be left in the “on” position without having to hold it down all the time. This facilitates long-term operation

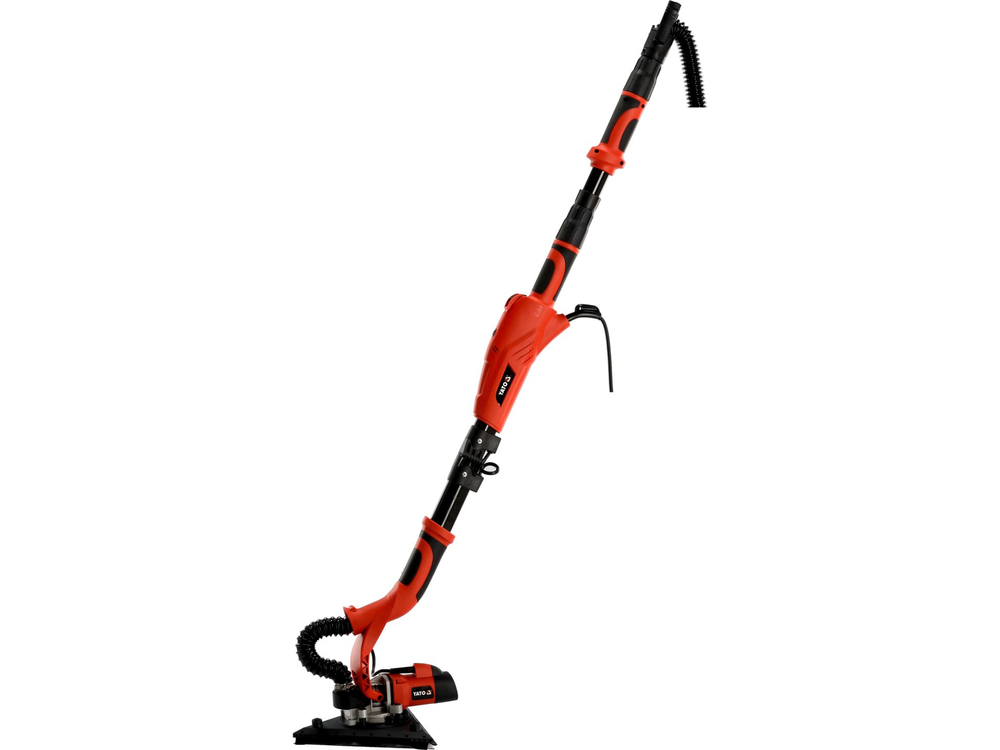

- the grinder has a factory-installed head with a rotating disk. The head is designed for grinding large surfaces. The grinder also comes with a triangular-shaped (delta) work head for sanding in corners. The head grinds by means of oscillation
- the head is fixed with a snap and its change does not require additional tools
Included:
- additional delta head
- hose

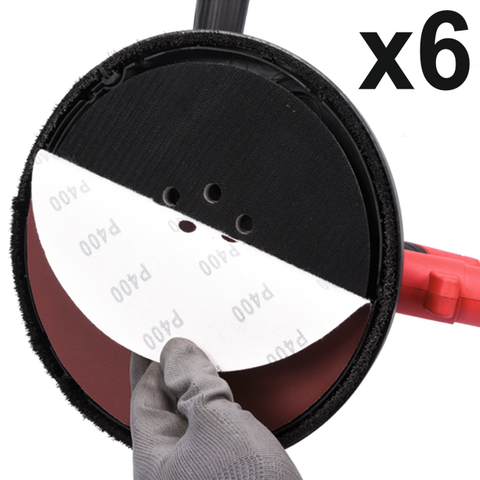

- 6 abrasive papers for round head in grit 60-240

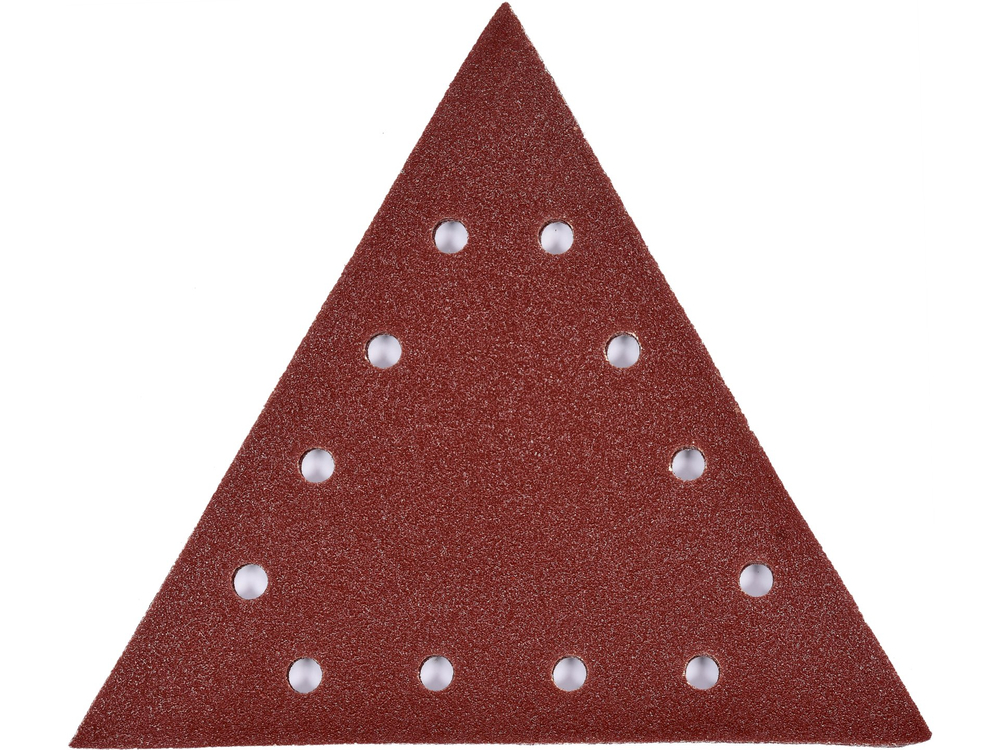

- 6 abrasive papers for triangular head in grit 60-240
