81773

DIGITAL MULTIMETER

+ Add to compare Add to shopping list

WIELOFUNKCYJNY MIERNIK CYFROWY

Size

uniwersalny

36,62 zł

incl. VAT / pcs.

Call and order: 71 32 46 330

Buy now, pay in 30 days

14 days for easy returns

Buy now, pay in 30 days

Buy on installment

Official manufacturer's store

Safe shopping

Brand

Vorel

Symbol

81773

Producer code

5906083042607

Series

GRF

AC voltage measurement

0-600 V a.c.

DC voltage measurement

0-600 V d.c.

0-10 A

Resistance measurement

0-2 MΩ

Transistor HFE measurement

PNP, NPN

Circuit continuity test

0-100 Ω

Conduction test

Yes

LED test

Yes

Material

ABS

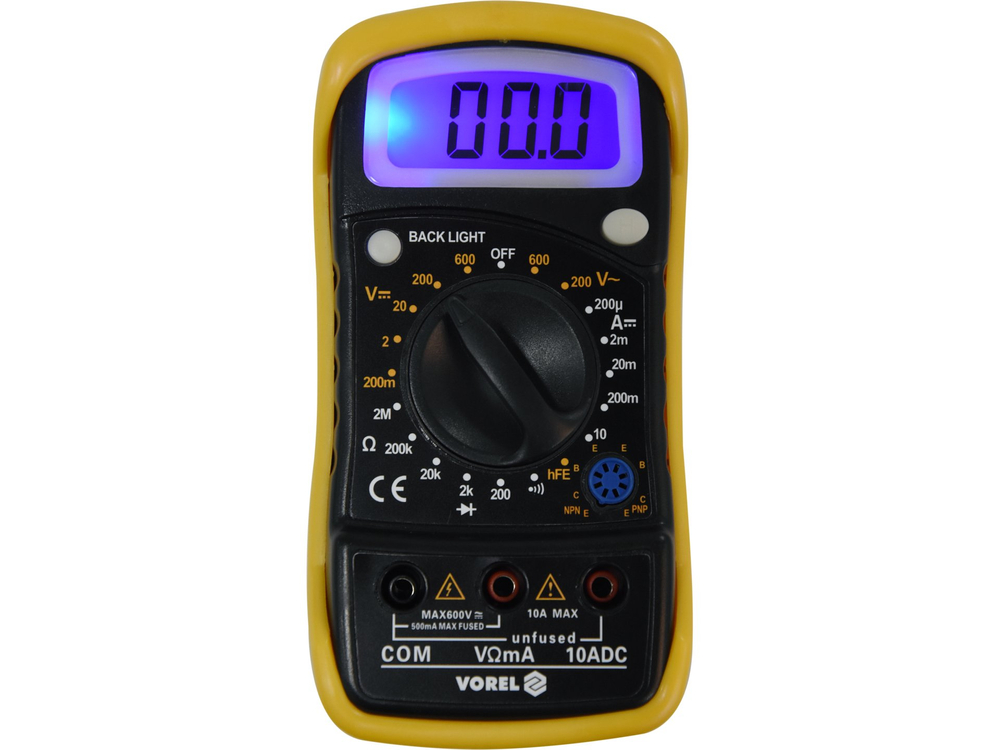

LED backlight

Yes

Sound signal

Yes

Data Hold

Yes

Power supply

battery

Type of battery

9V; 6F22

Application

electric

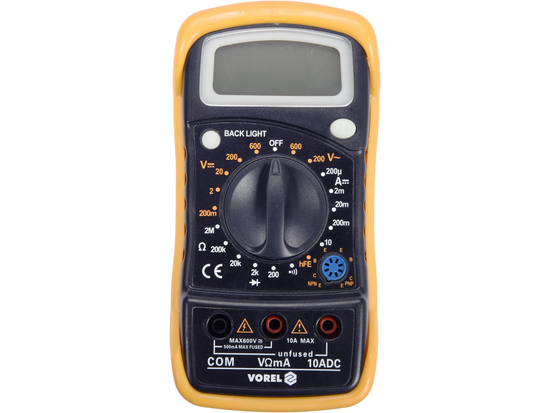

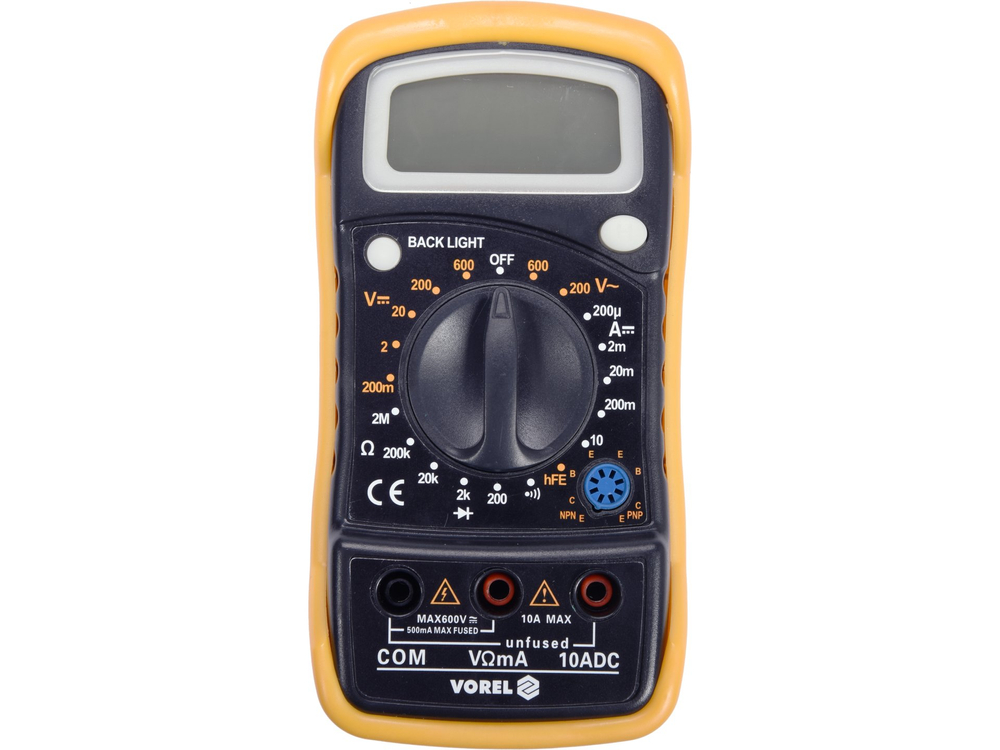

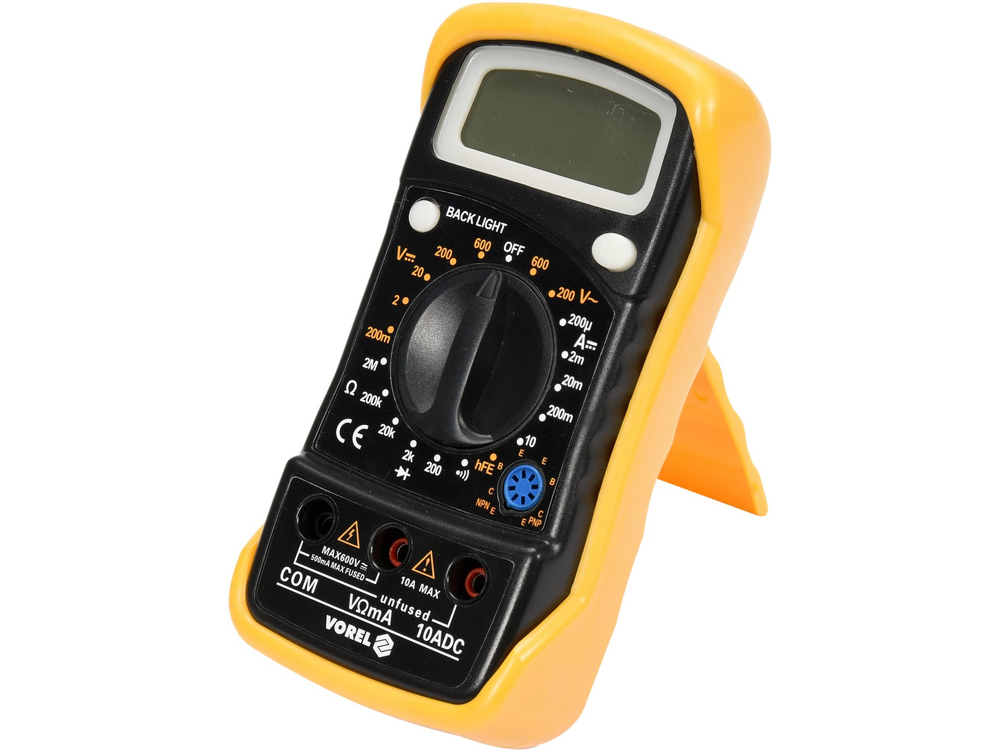

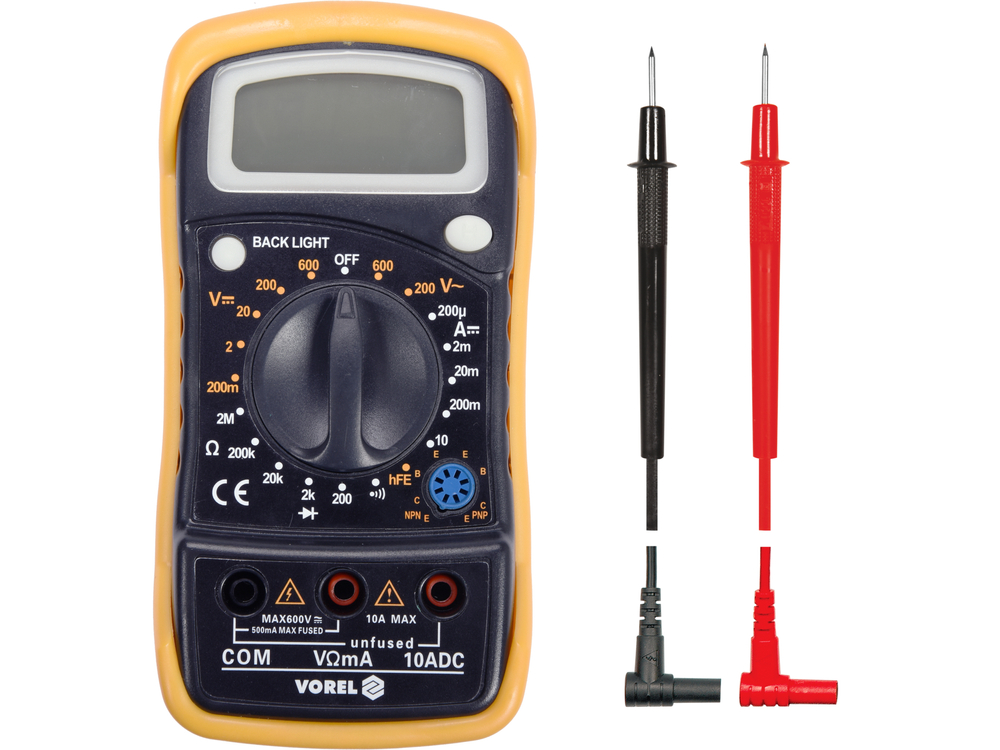

The universal meter 81773 with a manual range for each measurement enables the implementation of basic and advanced electrical measurements. An additional protection against mechanical damage is the so -called Holster - a rubber housing stretched onto the device housing. Basic measurements measurement of alternating voltage: A.C. 0-600V Fixed voltage measurement: D.C. 0-600V DC measurement: D.C. 0-10A resistance measurement: 0-2mΩ diode test: IF 1MA, UR 1.5V circumference continuity test: 0-100Ω Additional measurements of HFE transistors test: 0-1000, built-in measuring socket . Calculations for the measurement result: 235V Measurement accuracy of 81773 meter for this range is: ± (2% + 10), 1v resolution 1V measurement error calculation Pattern: (measurement result x 2%) + 10 x Calculation resolution: (235 x 2%) + 10 x 1 = 4.7 + 10 = 14.7v result taking into account the measuring error for indicating & nbsp The accuracy for a given measurement is in the user manual. *Meter 81773 does not have the TRUE RMS measurement function, which is why the above result is consistent with the facts only for the correct sinusoidal course. Built -in Data Hold functions - behavior on the display of the currently measured value. Additional information LCD display, & nbsp; maximum display displayed: 1999 screen lighting sound signal in the circuit continuity test for resistance below 30Ω In the set of measuring probes, the measuring probe with overload protections, measuring socket 10A without a fuse of housing ABS + so -called plastic Holster, i.e. a rubber housing that protects the meter against mechanical damage, low battery level. Power supply: 9V battery (6F22) Note in the case of measuring unknown values using a meter with a manual change in the range using the knob, you should make measurements in order to the largest range to the giving range The most accurate result - otherwise we risk damage to the device.

To download

User manual 81773
