YT-09695
AIR DRILL COMPOSITE BODY
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Max. working pressure
0.63 MPa
Required air flow
141 l/min
Rotations
20000 min⁻¹
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Max. toolholder size
10 mm
Casing material
composite
Speed adjustment
yes
Rotation switch
no
Rotated air exhaust
360˚
Acoustic pressure
92.0 ± 3.0 dB(A)
Acoustic power
103.0 ± 3.0 dB(A)
Vibrations
6.2 ± 1.5 m/s²
Weight
0.66 kg
Set includes
pneumatic drill, air inlet connector
Symbol
YT-09695

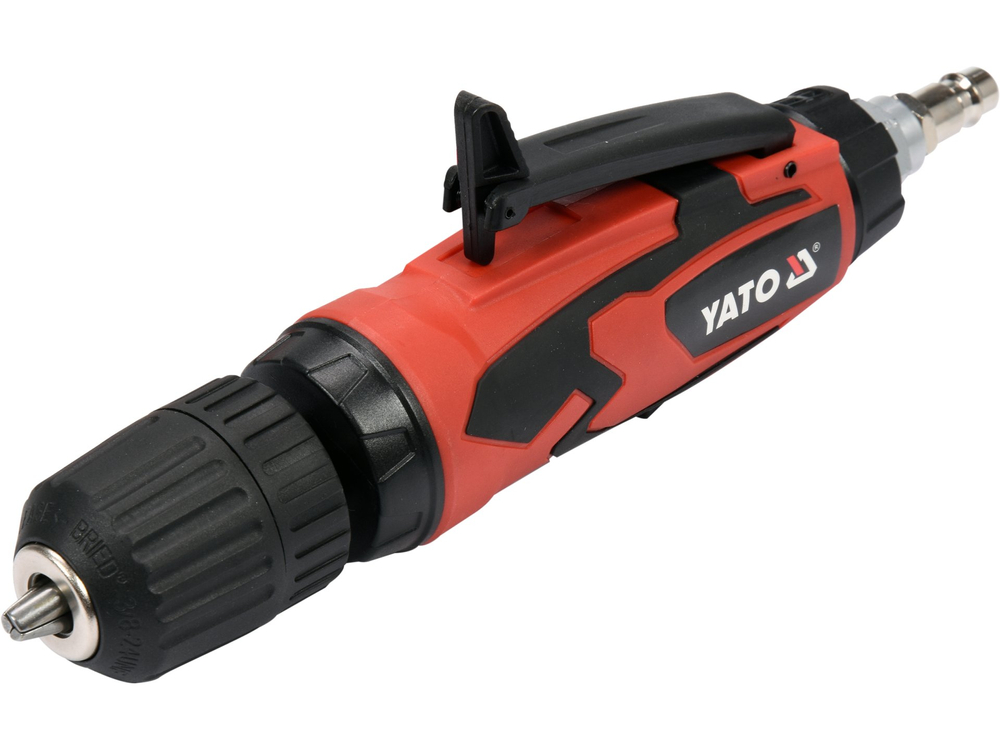

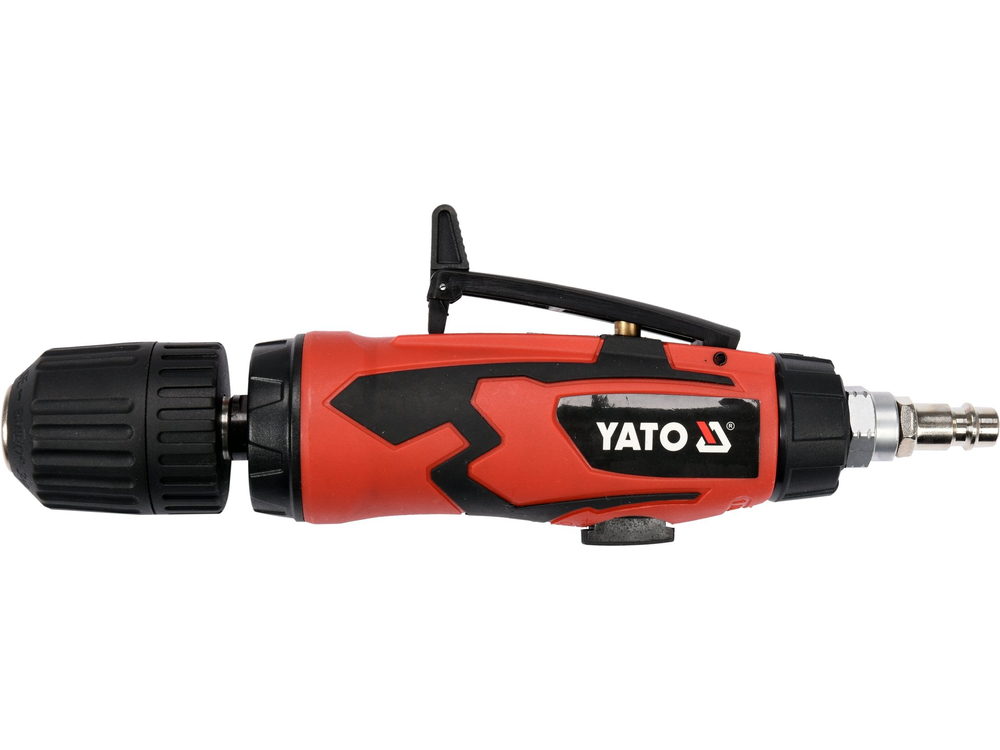

Professional pneumatic drill powered by a stream of compressed air under pressure. Designed for drilling in metal, wood, plastic and when it is necessary to drill without impact. It is perfect for use in spaces with limited maneuvering area. Used in automotive service and industry.
- bore diameter: 10 mm
- pressure: 0.63 MPa
- power output: 141 l/min
- max speed: 20,000 rpm
- max./min
- infinitely variable speed control
- rotary air blower 360°
- lightweight composite housing and small size for comfortable work
- low vibration
- lock on switch protects against unwanted activation
- standard connection
