YT-09633
AIR DIE GRINDER COMPOSITE BODY
Brand
Symbol
YT-09633
Producer code
5906083044434
Series
Max. working pressure
0.63 MPa
Air flow required
113 l/min
Turnover
25000 min⁻¹
Professional diameter
50 mm
Air connection diameter (PT)
standard
The inner diameter of the air supply hose
3/8 (9.5 mm)"
Housing material
composite
Speed regulation
Yes
Rotary air blow
360˚
Acoustic pressure
97.0 ± 3.0 dB(A)
Acoustic power
108.0 ± 3.0 dB(A)
Vibrations
0.9 ± 1.5 m/s²
Weight
0.33 kg
Contents of the set
pneumatic grinder, hose connector, key to the tool holder x2

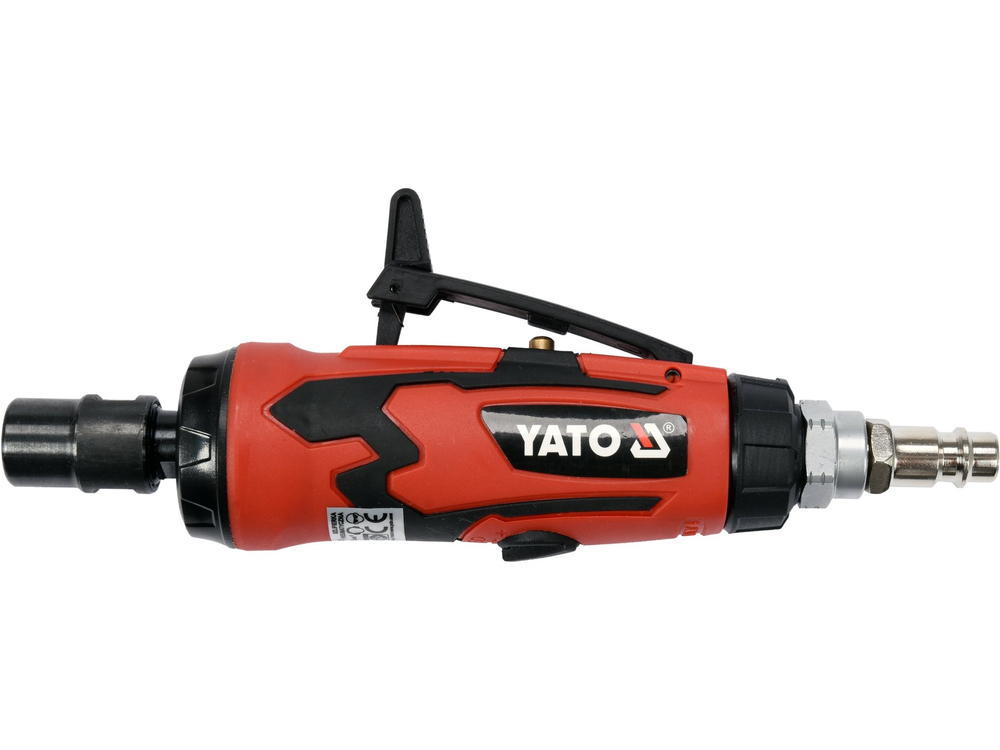

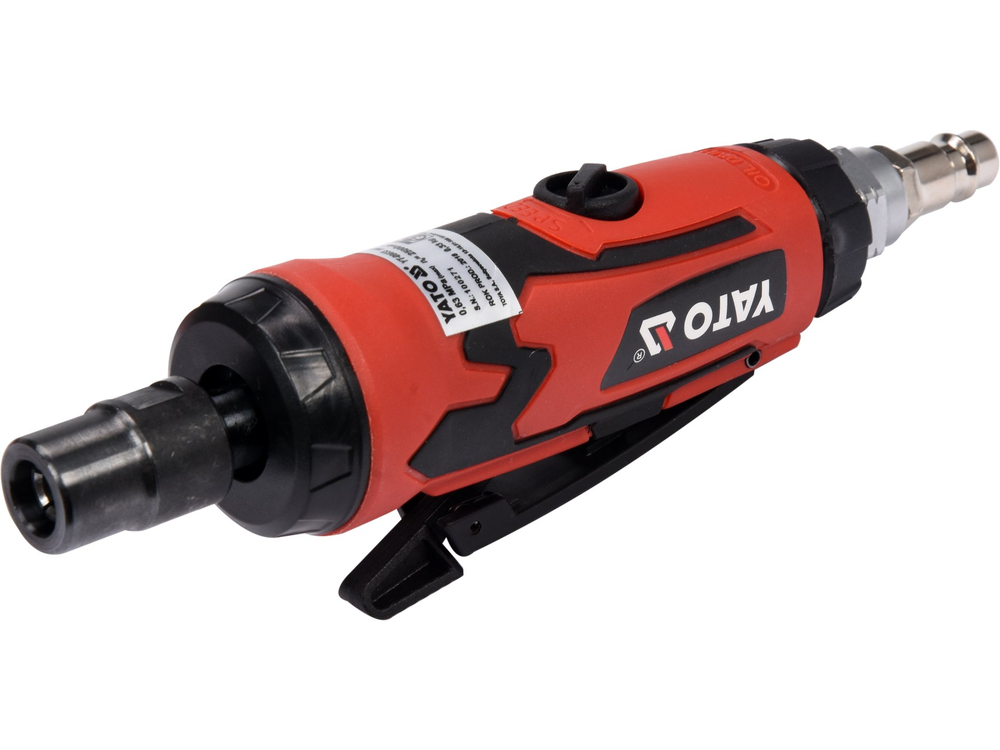

Pneumatic grinder powered by a stream of compressed air under pressure. With the help of appropriate discs it allows cutting and grinding of various materials
Applied in automotive service and industry.
- spindle diameter: 6 mm
- pressure: 0.63 MPa
- capacity: 113 l/min
- max speed: 25,000 rpm
- max./min
- smooth speed control
- rotary air blower 360°
- lightweight composite housing and small size provide comfortable operation
- block in the switch protects against unwanted activation
- standard connection
- included: wrenches for fixing additional equipment in the handle, connection to compressed air system
