YT-09803

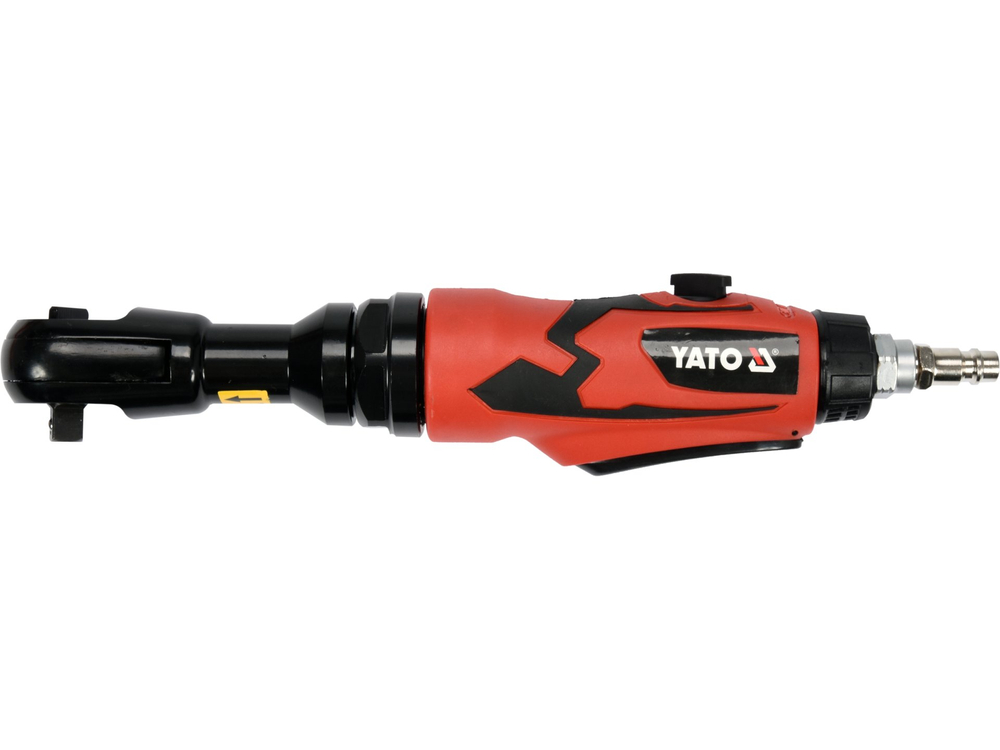

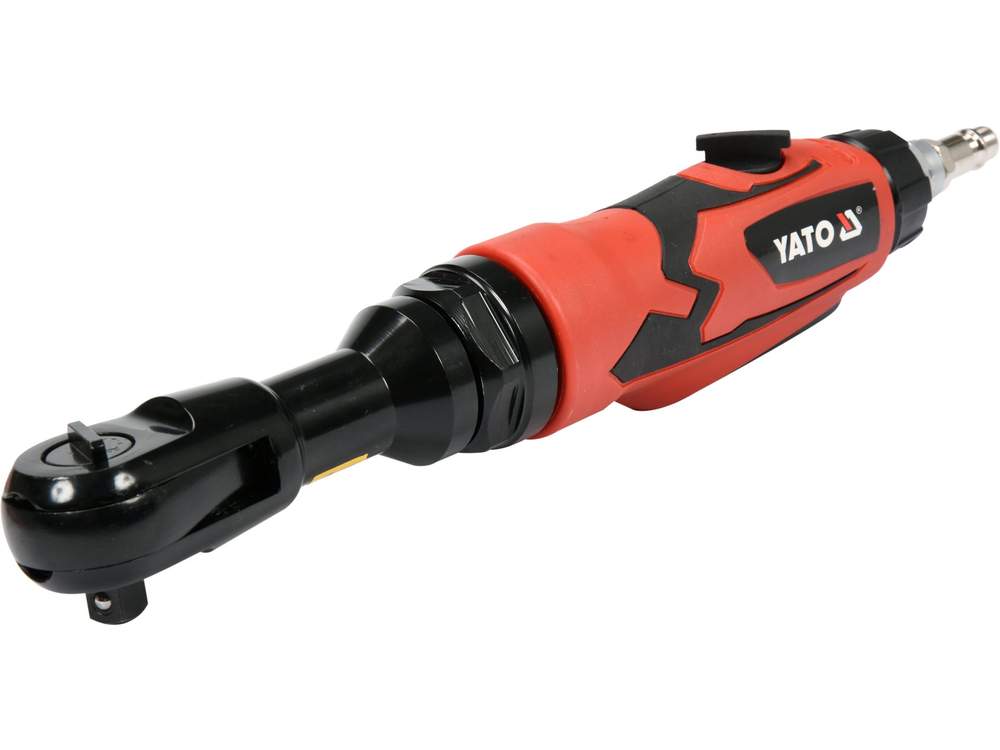

AIR RATCHET WRENCH 1/2" COMPOSITE BODY
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Holder size
1/2" (12.7 mm)
Toolholder type
Driver
Max. working pressure
0.63 MPa
Rotations
160 min⁻¹
Max. torque
80 Nm
Required air flow
142 l/min
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Length
285 mm
Casing material
composite
Rotation switch
yes
Speed adjustment
yes
Rotated air exhaust
360˚
Acoustic pressure
94.0 ± 3.0 dB(A)
Acoustic power
105.0 ± 3.0 dB(A)
Vibrations
2.6 ± 1.5 m/s²
Weight
1.4 kg
Set includes
pneumatic ratchet, hose connector
Symbol
YT-09803
![](https://pim.toya.pl/piktogramy/CALE_inch-mm_inch-cm/image-thumb__59485__Sklep_pikto/1-2_inch_12%2C7_mm.png")
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52595__Sklep_pikto/0%2C63_MPa.png")
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__57219__Sklep_pikto/142_l-min.png")
![](https://pim.toya.pl/piktogramy/Nm_nm/image-thumb__52836__Sklep_pikto/80_Nm.png")
![](https://pim.toya.pl/piktogramy/min-1/image-thumb__60216__Sklep_pikto/160_min-1.png")
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION_PARAMETER/image-thumb__60482__Sklep_pikto/360_AIR_EXHAUST_ENG.png")
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION/image-thumb__59061__Sklep_pikto/SPEED_REGULATOR_ENG.png")
![](https://pim.toya.pl/piktogramy/kg_g_g-min_g-h_g-m2/image-thumb__57230__Sklep_pikto/1%2C4_kg.png")
![](https://pim.toya.pl/piktogramy/PICTURES_DESCRIPTION/image-thumb__69323__Sklep_pikto/ULTRA_LIGHT_ENG.png")
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION/image-thumb__66737__Sklep_pikto/COMPOSITE_BODY_ENG.png")
![](https://pim.toya.pl/piktogramy/PICTURES_DESCRIPTION/image-thumb__60328__Sklep_pikto/COUPLE_01_STANDARD.png")
Speed and Precision in Action
The pneumatic ratchet YT-09803 is a reliable tool for heavy-duty work. It provides quick assembly and disassembly, saving your time and effort.
Advantage in Every Detail - Comfort and Efficiency
- Ideal for intensive work in vulcanization and automotive plants
- Reduces the time for mounting and dismounting threaded connections and components
- Facilitates work in hard-to-reach places, increasing ergonomics
- Smooth speed adjustment for precise control
- Right/left rotation switch provides versatility
- 360° air exhaust ensures cleanliness of the work area
- Lightweight and durable composite housing ensures user comfort
- Compact dimensions facilitate tool maneuvering
- Socket lock prevents accidental detachment
- Standard connection for easy integration with pneumatic system
Fast Assembly
Lightweight Housing
Speed Adjustment
Work in Tight Spaces
Secure Socket
Technical Parameters
- Spindle Size: 1/2″ (12.5 mm)
- Maximum Torque: 80 Nm
- Rotational Speed: 160 rpm
- Housing Material: Composite
- Maximum Operating Pressure: 0.63 MPa
- Air Flow Requirement: 142 l/min
- Weight: 1.4 kg
