YT-09803

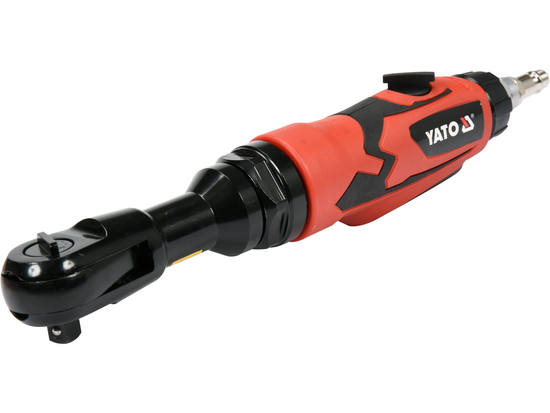

AIR RATCHET WRENCH 1/2" COMPOSITE BODY
Brand
Symbol
YT-09803
Producer code
5906083044380
Series
Tool handle size
1/2 (12.7 mm)"
Type tool handle
rope
Max. working pressure
0.63 MPa
Turnover
160 min⁻¹
Torching max.
80 Nm
Air flow required
142 L/min
Air connection diameter (PT)
standard
The inner diameter of the air supply hose
3/8 (9.5 mm)"
Length
285 mm
Housing material
composite
Rotation direction switch
Yes
Speed regulation
Yes
Rotary air blow
360˚
Acoustic pressure
94.0 ± 3.0 dB(A)
Acoustic power
105.0 ± 3.0 dB(A)
Vibrations
2.6 ± 1.5 m/s²
Weight
1.4 kg
Contents of the set
Pneumatic ratchet, hose connector
A pneumatic ratchet powered by a stream of compressed air under pressure. Designed for heavy-duty work in vulcanizing
and automotive plants– quick assembly and disassembly of threaded connections and components. It replaces hand-driven ratchets, reducing the time of performing
service operations and facilitating work in hard-to-reach places.
- Torque: 80 Nm
- Pressure: 0.63 MPa
- Productivity: 142 l/min
- Max speed: 160 rpm
- Max./min
- smooth speed control
- right/left rotation switch
- rotary air blast 360°
- .lightweight composite housing and small size ensure comfortable working
- clamp to prevent the cap from disengaging
- standard connection
- spindle size: 1/2″ (12.5mm)
