YT-09676

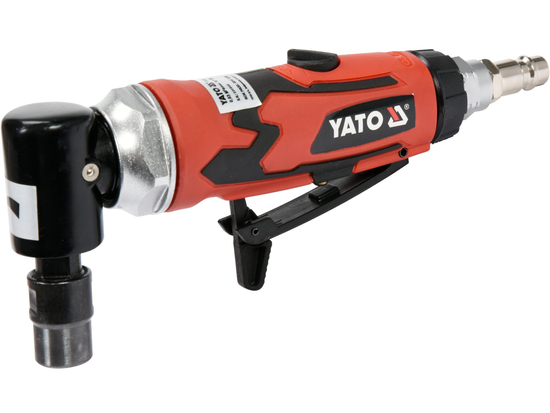

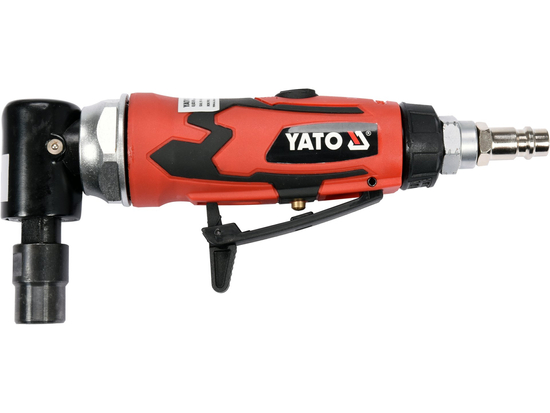

AIR ANGLE DIE GRINDER COMPOSITE BODY
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Max. working pressure
0.63 MPa
Required air flow
113 l/min
Rotations
20000 min⁻¹
Max. accessories diameter
50 mm
Toolholder size
1/4" (6.3 mm)
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Casing material
composite
Speed adjustment
yes
Rotated air exhaust
360˚
Acoustic pressure
92.0 ± 3.0 dB(A)
Acoustic power
103.0 ± 3.0 dB(A)
Vibrations
1.4 ± 1.5 m/s²
Weight
0.48 kg
Set includes
pneumatic grinder, hose connector, tool holder key x2
Symbol
YT-09676
Professional pneumatic grinding machine powered by a stream of compressed air under pressure. With the appropriate discs, it allows cutting and grinding of various materials Used in automotive service and industry.
- spindle diameter: 6 mm
- pressure: 0.63 MPa
- power output: 113 l/min
- max speed: 20,000 rpm
- max./min
- płynna regulacja prędkości obrotowej
- obrotowy wydmuch powietrza 360°
- lekka, kompozytowa obudowa i niewielkie wymiary zapewniają komfortową pracę
- block in the switch protects against unwanted activation
- standard connection
- included: wrenches for attaching additional equipment to the handle, connection to the compressed air system
