YT-09904
AIR HAMMER COMPOSITE BODY
Brand
Symbol
YT-09904
Producer code
5906083044403
Series
Max. working pressure
0.63 MPa
Air flow required
113 l/min
Stroke frequency
4500 min⁻¹
Tool handle size
10 mm
Air connection diameter (PT)
standard
The inner diameter of the air supply hose
3/8 (9.5 mm)"
Housing material
composite
Acoustic pressure
95.0 ± 3.0 dB(A)
Acoustic power
106.0 ± 3.0 dB(A)
Vibrations
20.0 ± 4.5 m/s²
Weight
0.95 kg
Contents of the set

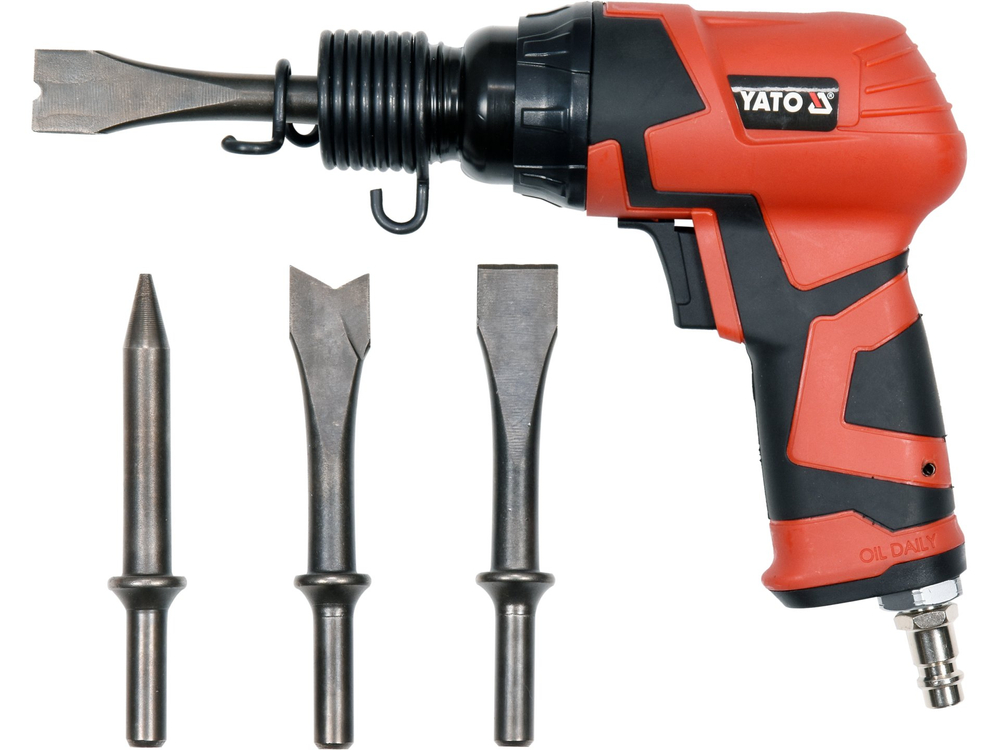

pneumatic hammer, snake connector, spring, chisels and pierces x4
A pneumatic hammer powered by a stream of compressed air. Designed for separating with chisels, chisels and punches elements joined by welding and riveting technology. It allows cutting, chiseling and piercing of metal and sheet metal in tinsmith workshops, automobiles, manufacturing plants, during DIY.
- pressure: 0.63 MPa
- capacity: 113 l/min
- stroke frequency of 4,500 strokes/min ensures rapid progress of work
- lightweight composite housing and small size ensure comfortable work
- standard connection
- included: 4 chisels
