YT-09717

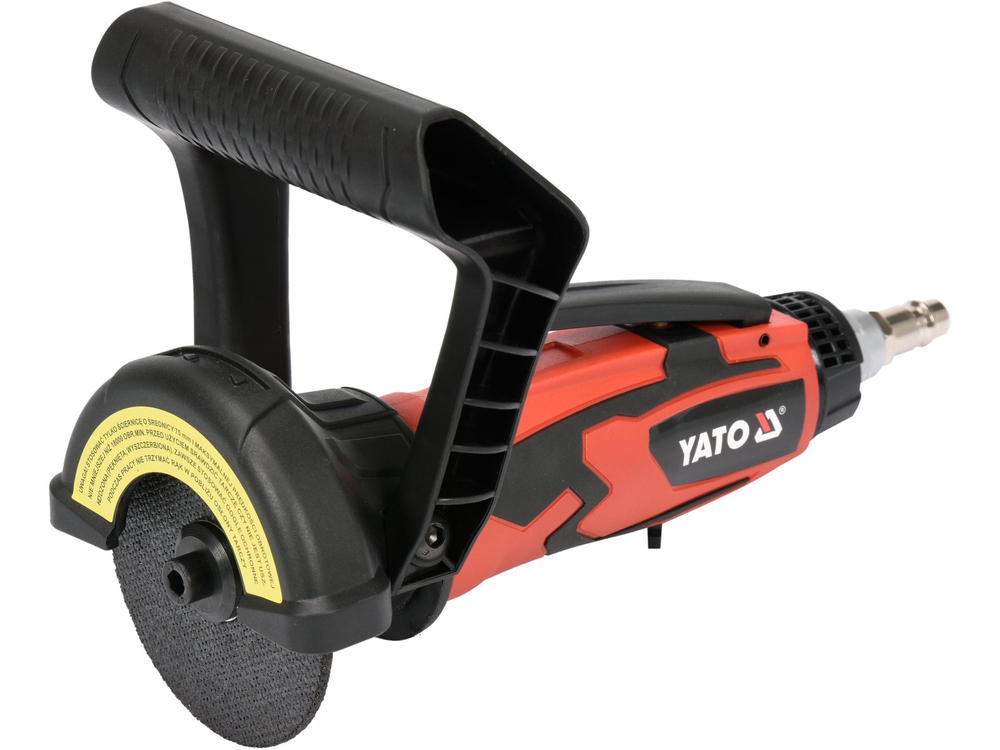

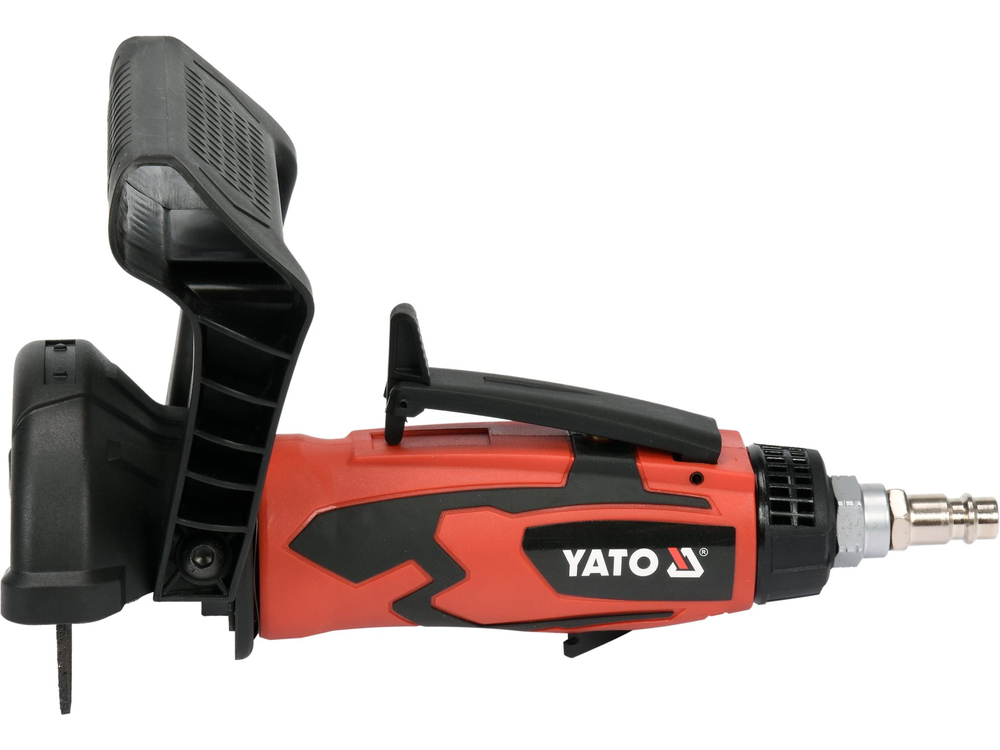

AIR CUT OFF TOOL COMPOSITE BODY
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Max. working pressure
0.8 MPa
Required air flow
170 l/min
Rotations
18000 min⁻¹
Disc diameter
75 mm
Holder size
3/8" (9.5 mm)
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Casing material
composite
Speed adjustment
yes
Rotated air exhaust
360˚
Acoustic pressure
90.0 ± 3.0 dB(A)
Acoustic power
101.0 ± 3.0 dB(A)
Vibrations
1.2 ± 1.5 m/s²
Weight
0.7 kg
Set includes
pneumatic cutter, cutting disc, air inlet connector, key for mounting and replacing the cutting disc x2
Symbol
YT-09717
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52607__Sklep_pikto/0%2C8_MPa.png")
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52647__Sklep_pikto/170_l-min.png")
![](https://pim.toya.pl/piktogramy/min-1/image-thumb__60214__Sklep_pikto/18000_min-1.png")
![](https://pim.toya.pl/piktogramy/DISK/image-thumb__61041__Sklep_pikto/DISK_75x9%2C5_mm.png")
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION_PARAMETER/image-thumb__60482__Sklep_pikto/360_AIR_EXHAUST_ENG.png")
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION/image-thumb__59061__Sklep_pikto/SPEED_REGULATOR_ENG.png")
![](https://pim.toya.pl/piktogramy/kg_g_g-min_g-h_g-m2/image-thumb__69328__Sklep_pikto/0%2C7_kg.png")
![](https://pim.toya.pl/piktogramy/PICTURES_DESCRIPTION/image-thumb__69323__Sklep_pikto/ULTRA_LIGHT_ENG.png")
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION/image-thumb__66737__Sklep_pikto/COMPOSITE_BODY_ENG.png")
![](https://pim.toya.pl/piktogramy/PICTURES_DESCRIPTION/image-thumb__60328__Sklep_pikto/COUPLE_01_STANDARD.png")
Professional pneumatic cutter powered by a stream of pressurized compressed air. With the help of cutting discs, it allows cutting through metal, body parts, sheet metal structures. Used in automotive service and industry.
- diameter of the disc: 75 mm
- pressure: 0.8 MPa
- capacity: 170 l/min
- max speed: 18,000 rpm
- max./min
- smooth speed control
- rotary air blower 360°
- lightweight composite housing and small size ensure comfortable operation
- shield shield
- block in switch protects against unwanted activation
- standard connection
Usage warnings:
Note: Use only a grinding wheel with a diameter of 75 mm and a maximum speed of not less than 18,000 rpm.Before use, check the disc for damage (cracked, chipped).
Always use protective goggles.
When working, do not keep your hands near the blade guard.
