22612
STEP DRILL 4-32MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Diameter
4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
Rung quantity
15

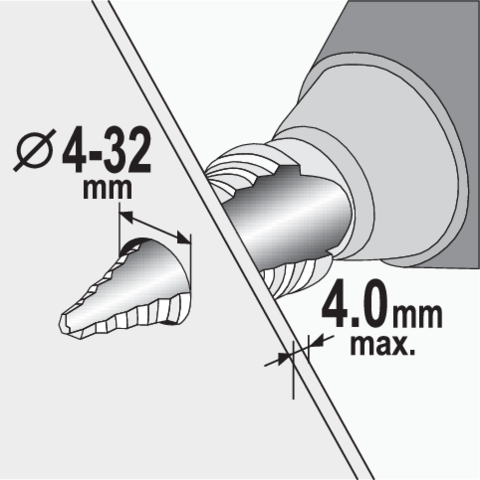

Max. cutting capacity
4 mm
Toolholder type
triangle
Material
HSS 4241
Surface finish
coated with titanium nitride
Application
steel
Symbol
22612

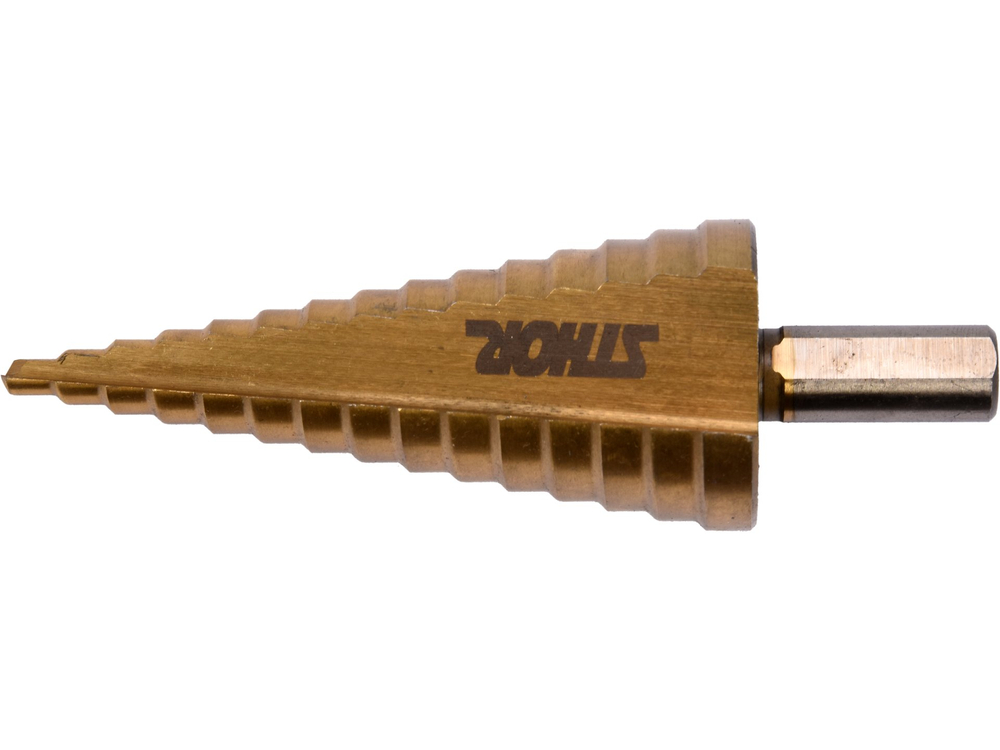

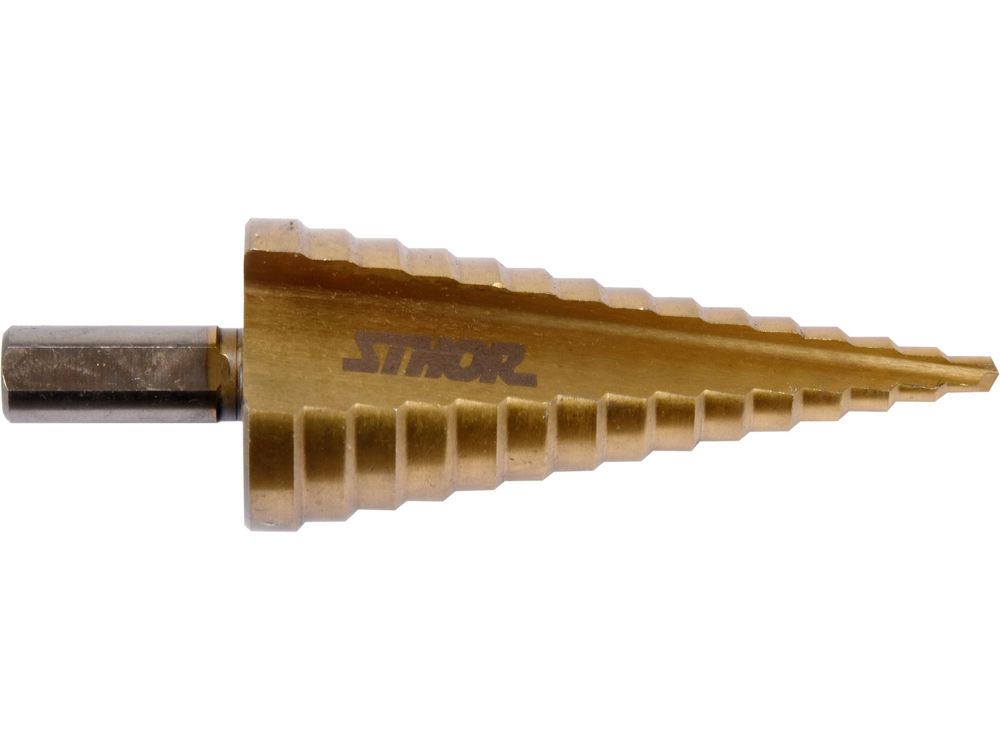

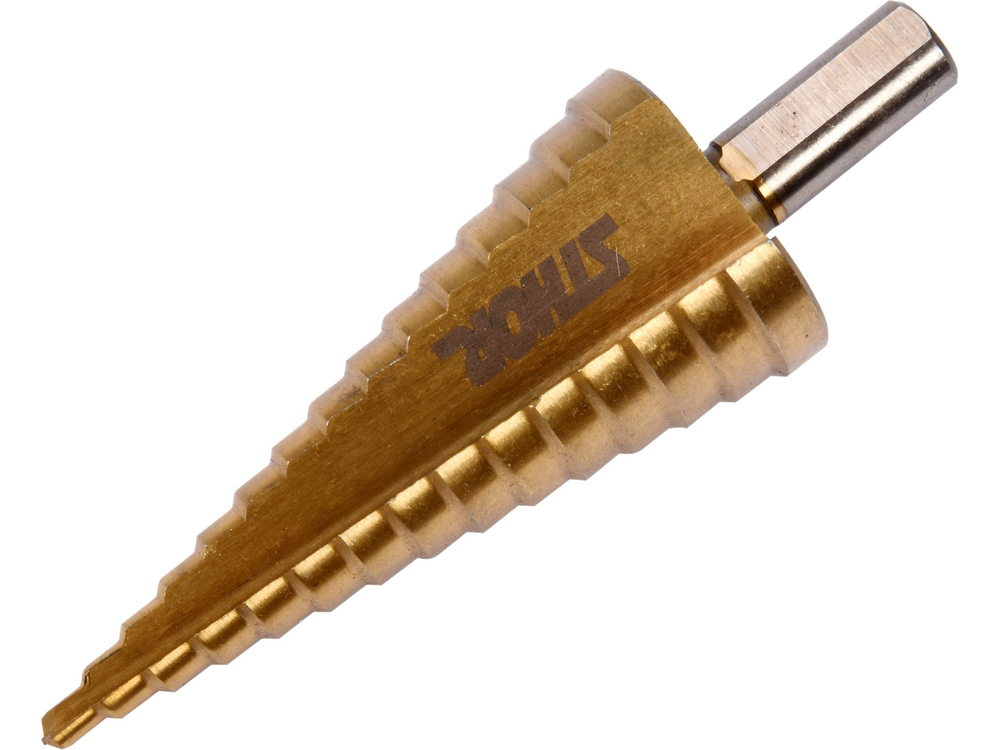

Step drill bit by STHOR 22612.
Designed for drilling in high-grade stainless, structural and cold-rolled steel, non-ferrous metals, steel sheets,plastics.
- the edges of the drilled hole remain clean and without burrs
- the drill bit does not escape on rounded surfaces
- self-centering on rounded and slippery surfaces
- the drill bit is easy to use./li>
- fast heat dissipation when drilling in hard materials
- made of HSS high-speed steel coated with titanium nitride
- stepped in 2 mm increments
- Cylindrical shank.
Usage warnings:
Warning! Always use personal safety equipment at work.
