YT-09528
PNEUMATIC WRENCH 1/2" 1000NM
Brand
Symbol
YT-09528
Producer code
5906083049736
Series
Tool handle size
1/2 (12.7 mm)"
Type tool handle
rope
Type of stroke mechanism
TWIN HAMMER
Max. working pressure
0.63 MPa
Recommended operating pressure
0.63 MPa
Air flow required
120 l/min
Turnover
6000 min⁻¹
Torching max.
1000 Nm
Size of the quick coupling
standard
Air connection diameter (PT)
standard
The inner diameter of the air supply hose
3/8 (9.5 mm)"
Length
190 mm
Housing material
aluminium
Rotation direction switch
Yes
Acoustic pressure
92.0 ± 3.0 dB(A)
Acoustic power
103.0 ± 3.0 dB(A)
Vibrations
5.47 ± 1.5 m/s²
Weight
2.7 kg
Contents of the set
pneumatic key, hose connector
Application
industry, mechanical workshops, car services

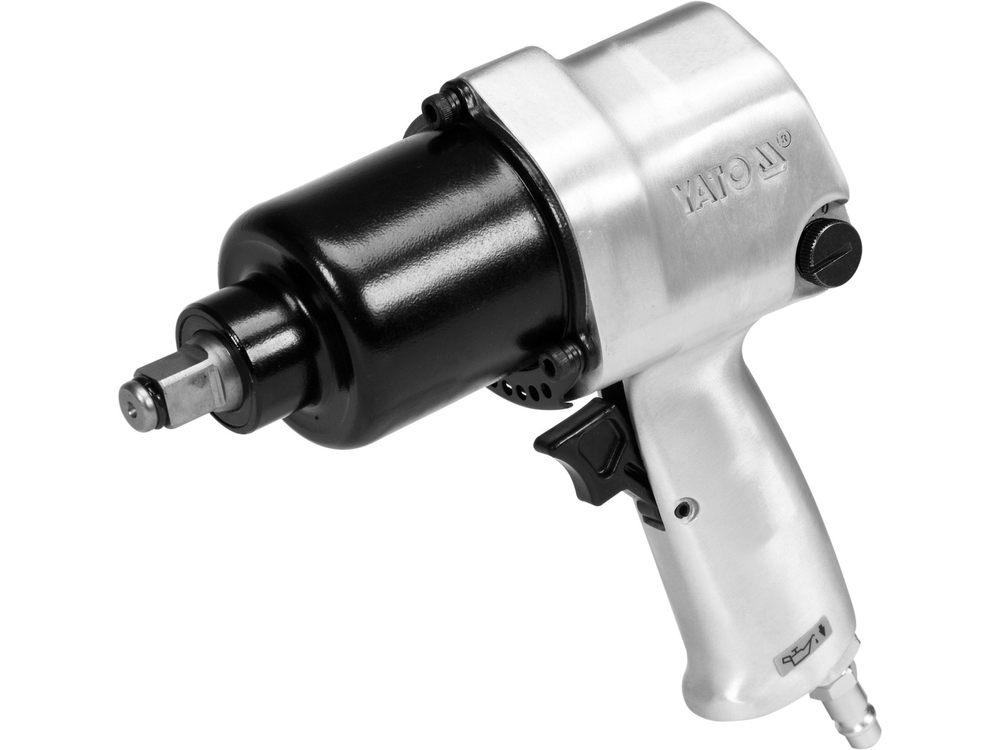

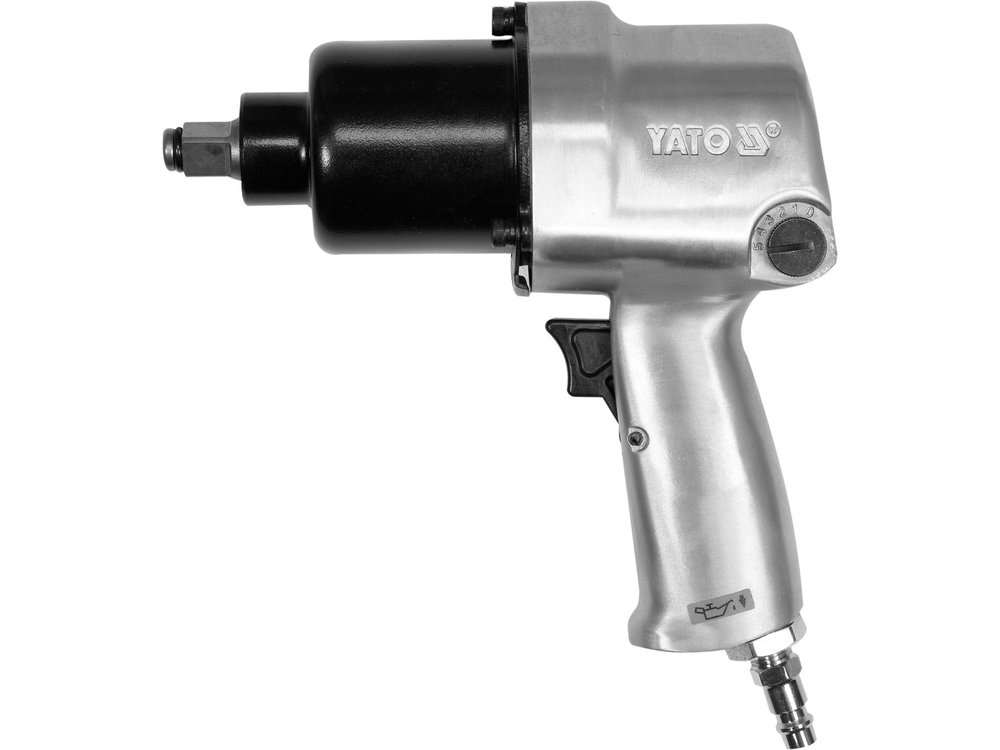

Professional wrench recommended for use in mechanic workshops and auto repair shops. The small size and weight make it easy to tighten or loosen screws in areas with limited access.

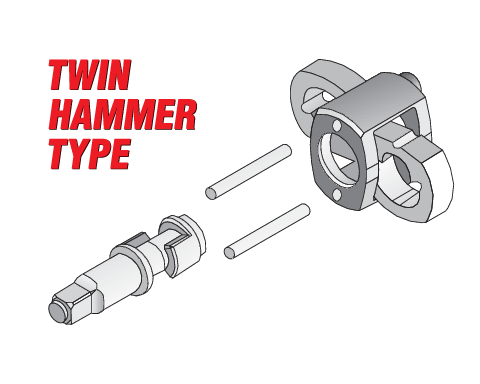

- The „twin hammer” mechanism allows high torque to be achieved with low compressed air requirements./strong>, while ensuring long wrench life
- 5-stage torque adjustment
- max. torque: 1000 Nm
- max speed: 6000 rpm
- low air consumption: 120 l/min
- right/left direction switch
- durable aluminum body
- ergonomic profile
- drive 1/2”
- length: 190 mm
- weight: 2.7 kg
