YT-82173

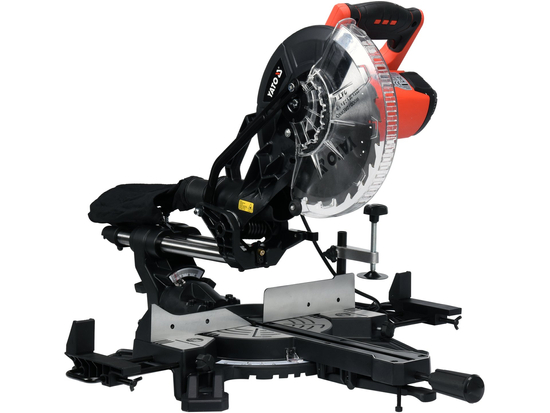

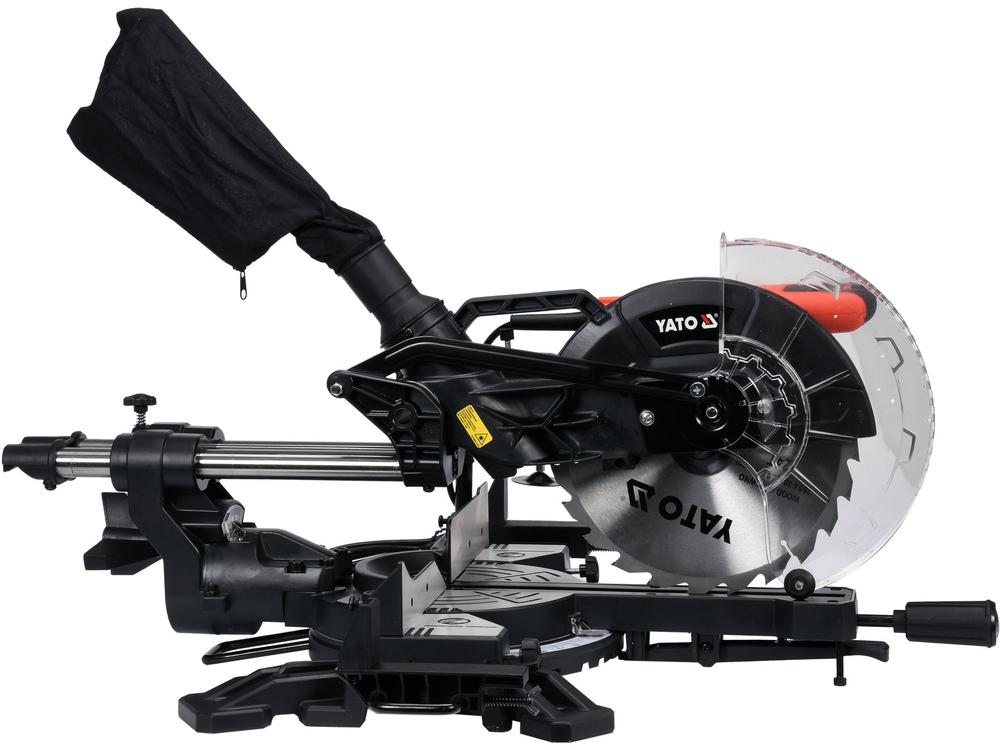

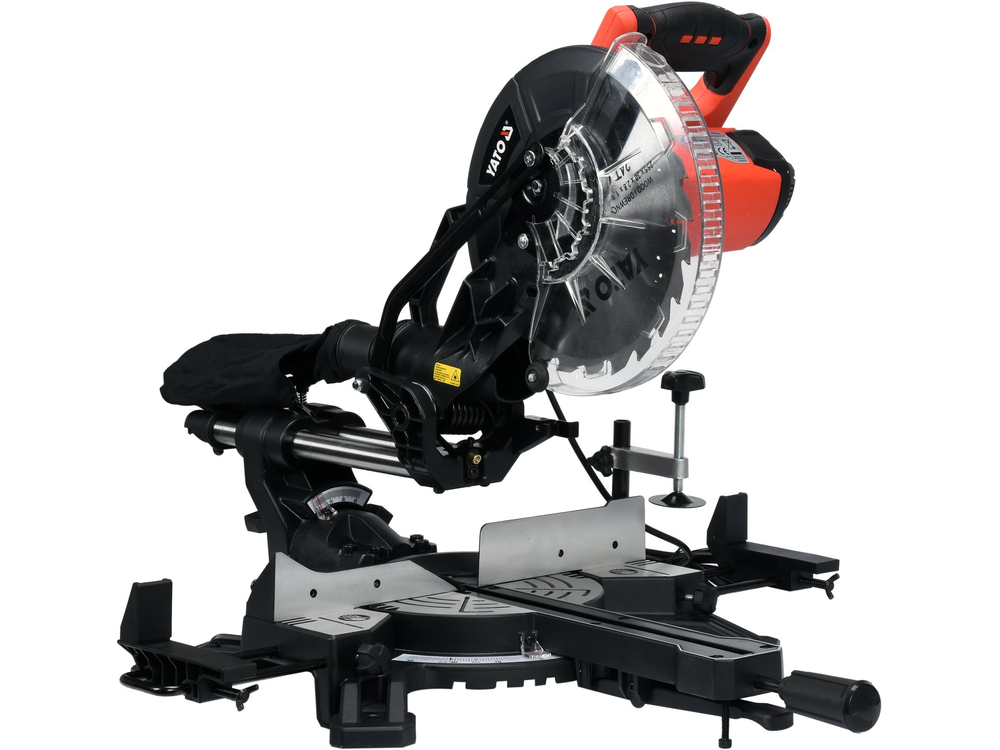

MITER SAW 255MM 1800W WITH LASER
- Ukośnica z tarczą 250mm, otwór mocujący tarczy 30mmDuży zasięg cięcia Łożyskowany posuw Precyzyjne nastawy kątowePodpory do cięcia długich elementów Ścisk do mocowania przecinanego materiałuStabilna i równa podstawaOstrze regulow
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Application
wood, panels, laminates, plastics
Power
1800 W
Rotations
5000 min⁻¹
Voltage
220-240 V a.c.
Frequency
50 Hz
Cutting disc outer diameter
255 mm
Cutting disc internal diameter
30 mm
Cutting disc max. thickness
3 mm
Number of teeth
24
Max. cutting height x max. cutting length rotating angle at level 0° / gradient 0°
70x305 mm
Max. cutting height x max. cutting length rotating angle at level 45° / gradient 0°
70x210 mm
Max. cutting height x max. cutting length rotating angle at level 0° / gradient 45°
35x305 mm
Max. cutting height x max. cutting length rotating angle at level 45° / gradient 45°
35x210 mm
Min. dimensions of processed material processed
200x20x20 mm
Laser
yes
Laser class
2
Laser power
˂1 mW
Laser wave length
650 nm
Laser pointer colour
red
Wire length
3 m
Electric insulation class
II
Protection grade
IP20
Acoustic pressure
94.3 ± 3.0 dB(A)
Acoustic power
107.3 ± 3.0 dB(A)
Weight
15.2 kg
Set includes
miter saw, dust collection bag, circular saw, work table extension x2, work table clamp, work table locking screw
Compatible with
YT-60733
Symbol
YT-82173
![](https://pim.toya.pl/piktogramy/POWER_SUPPLY/image-thumb__60417__Sklep_pikto/220-240V_50Hz.png")
![](https://pim.toya.pl/piktogramy/W_kW/image-thumb__53047__Sklep_pikto/1800_W.png")
![](https://pim.toya.pl/piktogramy/min-1/image-thumb__65703__Sklep_pikto/5000_min-1.png")
![](https://pim.toya.pl/piktogramy/DISK/image-thumb__61037__Sklep_pikto/DISK_255x30x2%2C8_mm.png")
![](https://pim.toya.pl/piktogramy/G_M_P_PM_T_E/image-thumb__59561__Sklep_pikto/24T.png")
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION_PARAMETER/image-thumb__80619__Sklep_pikto/90st-70mm_45st-35mm_CUTTING_DEPTH_ENG.png")
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION_PARAMETER/image-thumb__79611__Sklep_pikto/90st-305mm_45st-210mm_CUTTING_LENGTH_ENG.png")
![](https://pim.toya.pl/piktogramy/PICTURES_DESCRIPTION/image-thumb__60365__Sklep_pikto/II_CLASS_LASER_ENG.png")
![](https://pim.toya.pl/piktogramy/CABLE/image-thumb__50867__Sklep_pikto/CABLE_3_m.png")

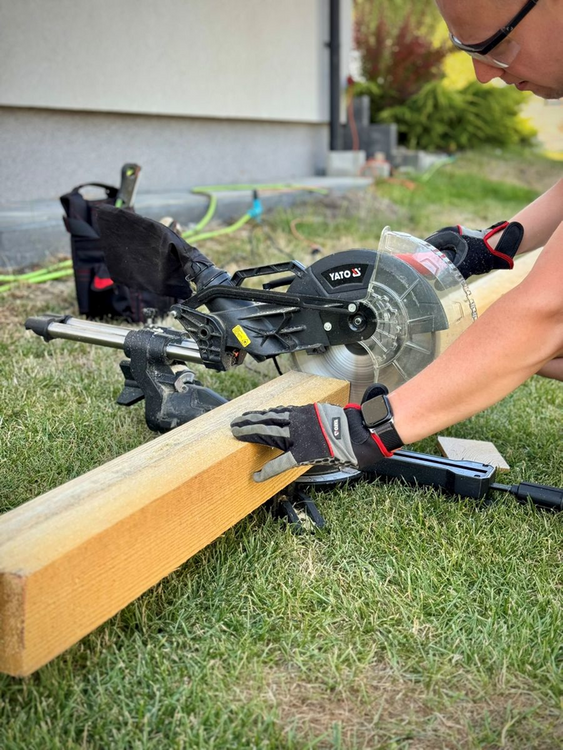

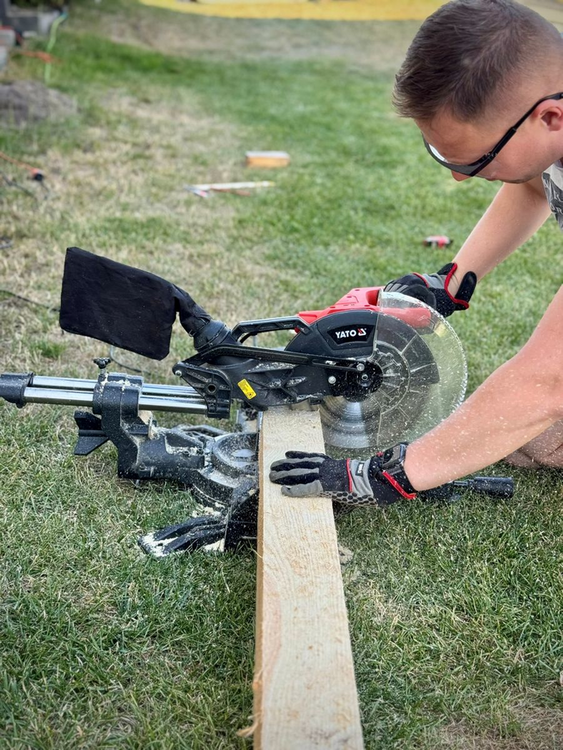

Professional miter saw designed for cutting skirting boards, panels, fascia, parquet, baseboards and PVC, cable ducts, edge banding, laths, etc. Ensures precise and fast cutting of materials.
- laser cutting line indicator
- side supports for cutting longitudinal elements

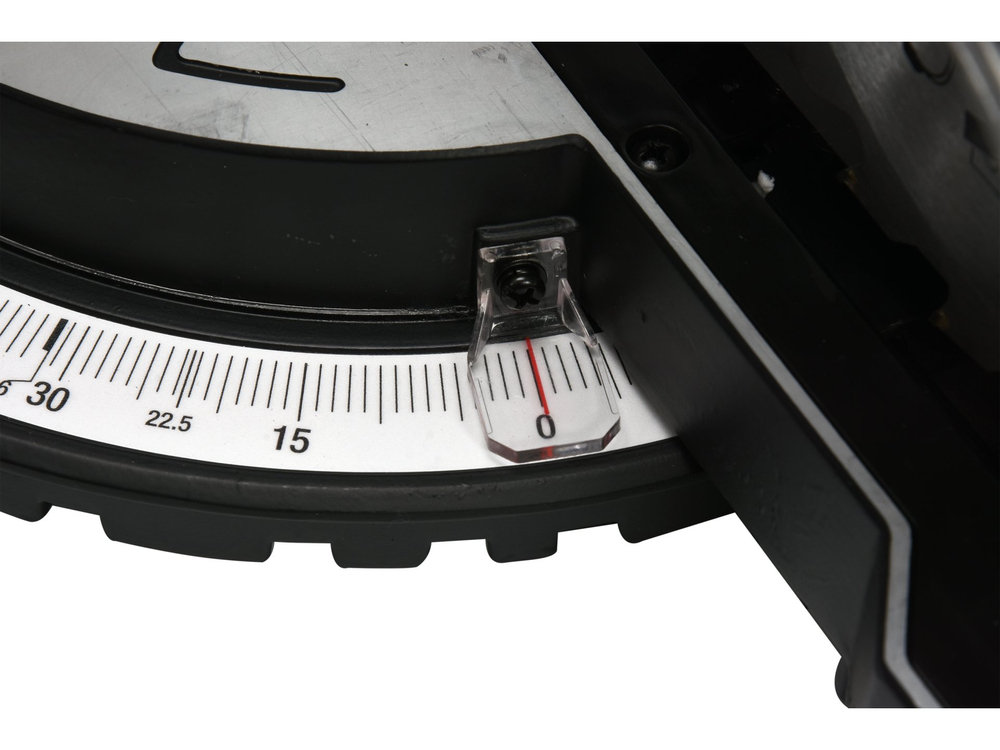

- stable and flat base with precise angle adjustment in vertical and horizontal
- bearing blade feed
- smoothly operating tilting blade guard integrated with the switch
- clamp integrated with the base allows safe and quick fixing of the workpiece
- built-in dust extraction system
- compact dimensions and transport handle in the central part of the housing ensure proper balance and ease of carrying

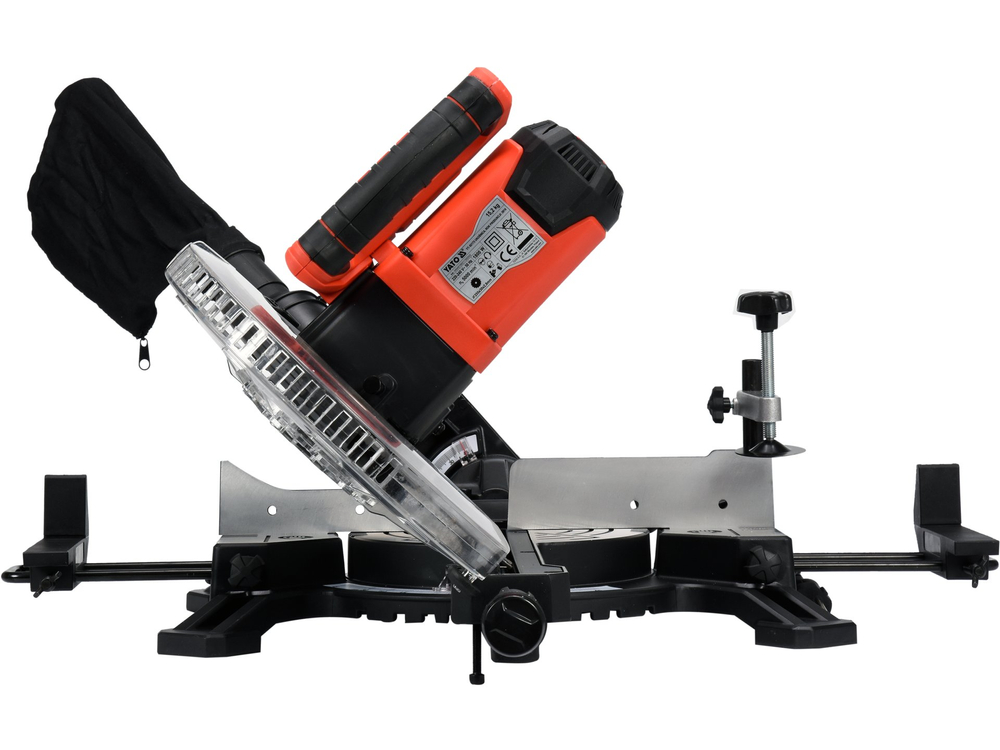

- blade adjustable vertically and horizontally
- blade mounting hole: 30 mm
- dust bag included
Parameters:
- Rated speed [min-1]: 5000
- Rated power [W]: 1800
- Saw blade: outer diam. x mounting diam. x max thickness [mm]: 255 x 30 x 3.0
Max. height x max. cutting length:
- horizontal rotation angle 0 deg. / tilt angle 0 deg [mm]: 70 x 305
- horizontal rotation angle 45 deg. / tilt angle 0 deg [mm]: 70 x 210
- horizontal rotation angle 0 deg. / tilt angle 45 deg [mm]: 35 x 305
- horizontal rotation angle 45 deg. / tilt angle 45 deg. [mm]: 35 x 210
WATCH VIDEO
Usage warnings:
Caution: laser radiation. Do not stare into the beam.Class 2 laser device.
