YT-07190

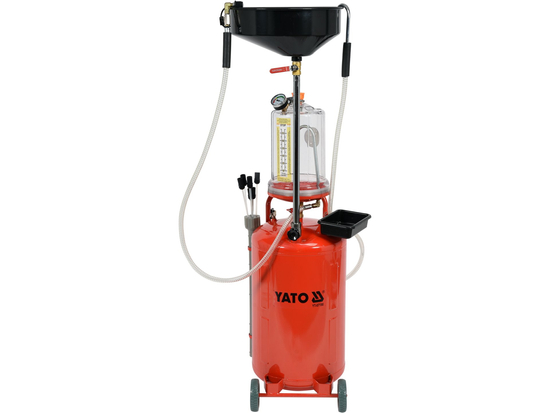

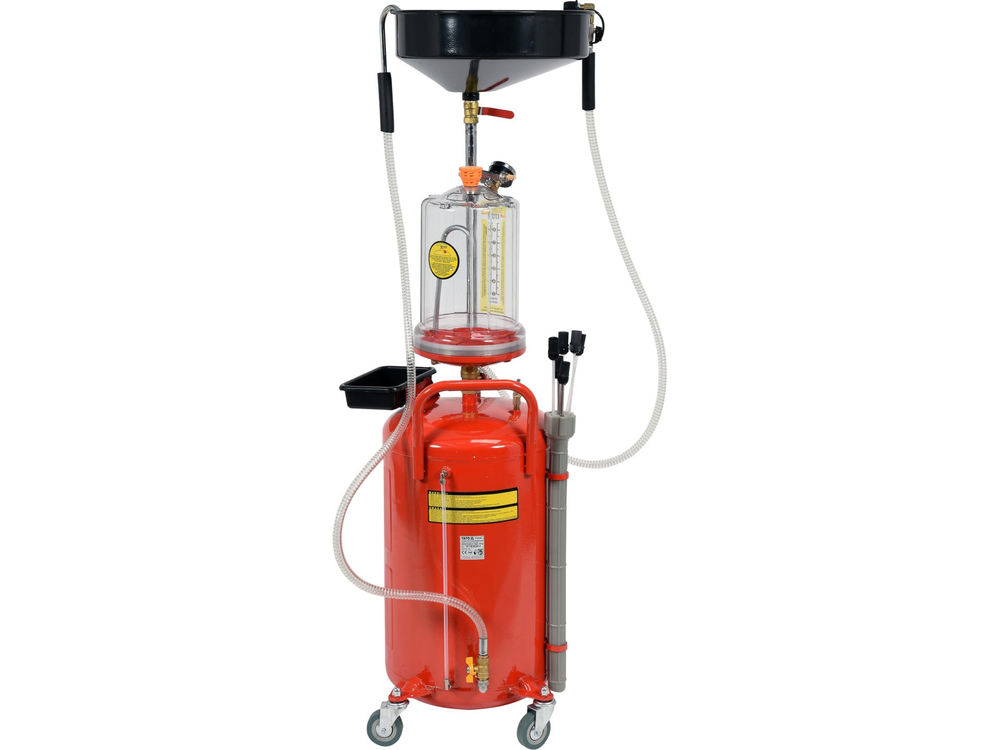

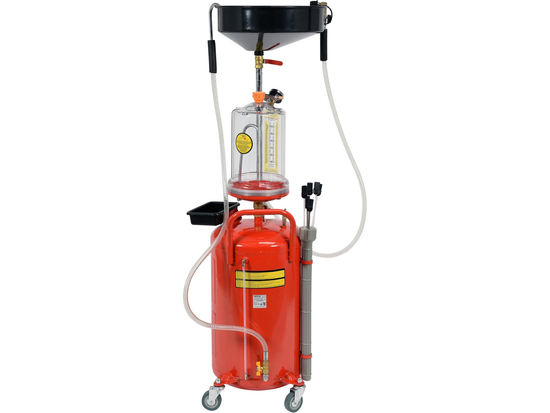

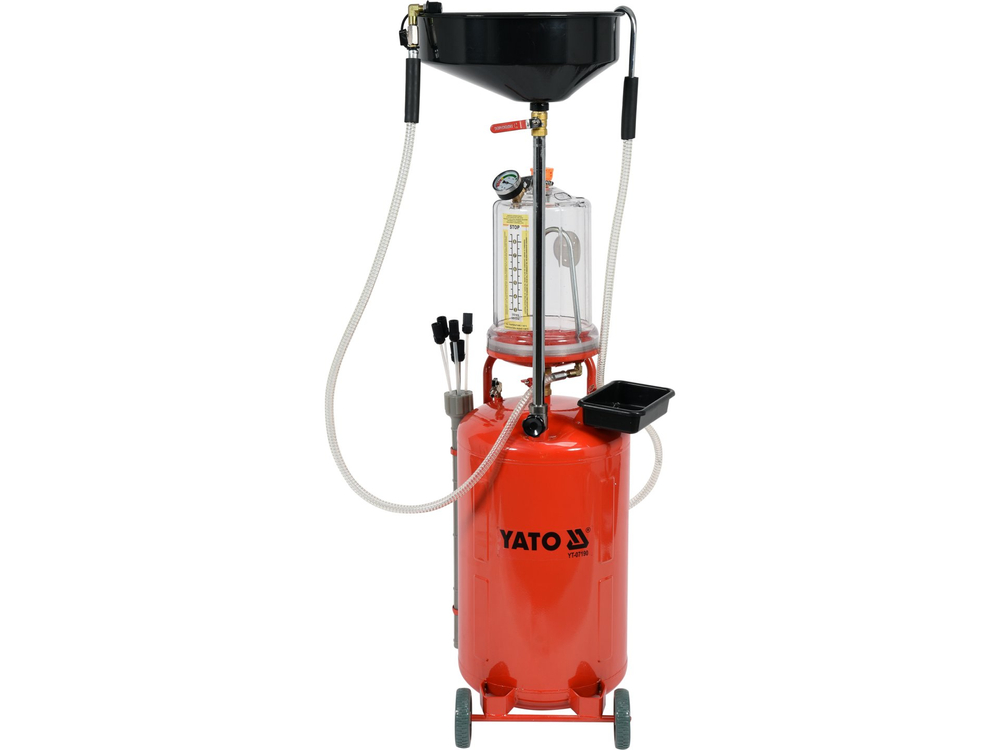

PNEUMATIC OIL DRAIN / EXTRACTOR 70L
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Max. extraction pressure
0.8 MPa
Recommended extraction pressure
0.7 MPa
Max. tank-emptying pressure
0.18 MPa
Required air flow
150 l/min
Produced vacuum
-1 ÷ 0 MPa
Tank capacity
90 l
Bowl capacity
10 l
Main tank capacity
70 l
Inspection tank capacity
10 l
Bowl diameter
410 mm
Height
150 cm
Air supply hose inside diameter
3/8" (9.5 mm)
Air connection diameter (PT)
standard
Wheels
yes
Wheel quantity
4
Liquid temperature
40~60 ˚C
Acoustic pressure
101.2 ± 3.0 dB(A)
Acoustic power
119.8 ± 3.0 dB(A)
Weight
20 kg
Set includes
pneumatic sink and suction machine, suction probe x6 (flexible probe x4: 5x780 mm, 6x780 mm, 6x780 mm, 8x780 mm; metal probe x2: 6x730 mm, 8x730 mm)
Symbol
YT-07190
Pneumatic beaker-sucking machine
Professional beaker-sucking machine with control tank allows for fast oil drainingós of automobile enginesós and gearboxesós. Used for draining and sucking oil and operating fluids from carsós, motorcycles and agricultural machinery.
- tank with a capacity of 70 l

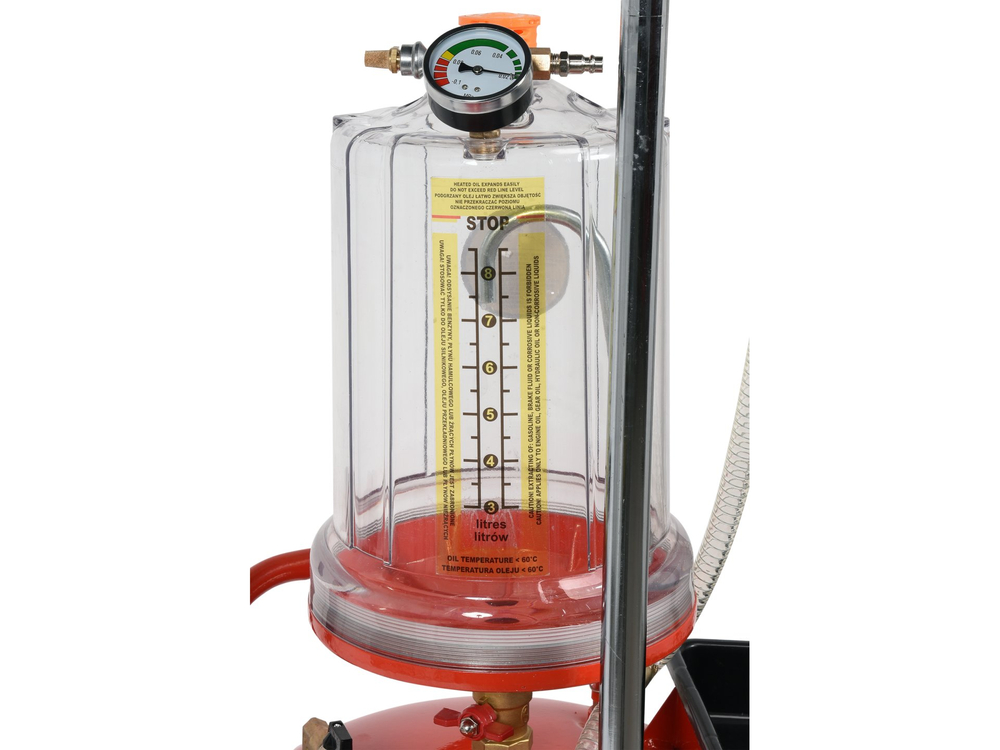

- control tank with a capacity of 10 l

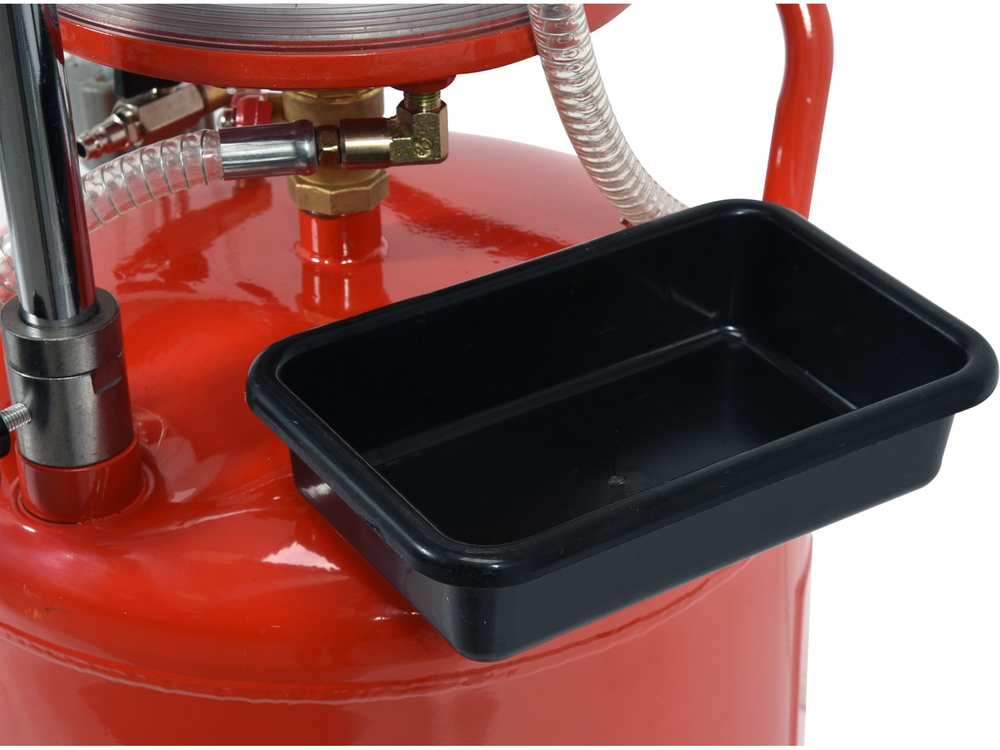

- wide funnel with a capacity of 10 l
- detailed suction of lingering oil from hoses
- working pressure: 8 bar
- suction pressure: 0.7-0.8 MPa
- pumping pressure: 0.18 MPa
- air consumption: 90 l/min
- equipped with 4 casters, including 2 swivel casters, for easy movement of the unit
- height: 150 cm
- storage holder for suction probes helps keep your work area neat and clean
- set of 6 suction probes – 4 flexible and 2 metal – fitting most models of carsów
