YT-82816
MITRE SAW 18V, 185 MM, 3600 MIN⁻¹ - BATTERY 4 AH
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Battery quantity
1
Rotations
3600 min⁻¹
Cutting disc outer diameter
185 mm
Cutting disc internal diameter
30 mm
Cutting disc max. thickness
2 mm
Voltage
18 V d.c.
Battery type
Li-Ion
Battery capacity
4000 mAh
Charger included
yes
Charging time
2 h
Number of teeth
40
Max. cutting height x max. cutting length rotating angle at level 0° / gradient 0°
51x203 mm
Max. cutting height x max. cutting length rotating angle at level 45° / gradient 0°
51x152 mm
Max. cutting height x max. cutting length rotating angle at level 0° / gradient 45°
35x203 mm
Max. cutting height x max. cutting length rotating angle at level 45° / gradient 45°
35x152 mm
Min. dimensions of processed material processed
200x20x20 mm
Laser
yes
Laser class
2
Laser power
˂ 1 mW
Laser wave length
650 nm
Laser pointer colour
red
Quick charging
yes
Charge level indicator
yes
Electric insulation class
III
Protection grade
IPX0
Acoustic pressure
83.14 ± 3.0 dB(A)
Acoustic power
96.14 ± 3.0 dB(A)
Weight
9 kg
Set includes
miter saw, dust collection bag, circular saw, work table clamp, work table locking screw
Compatible with
YT-60590
Application
wood, panels, laminates, plastics
Symbol
YT-82816

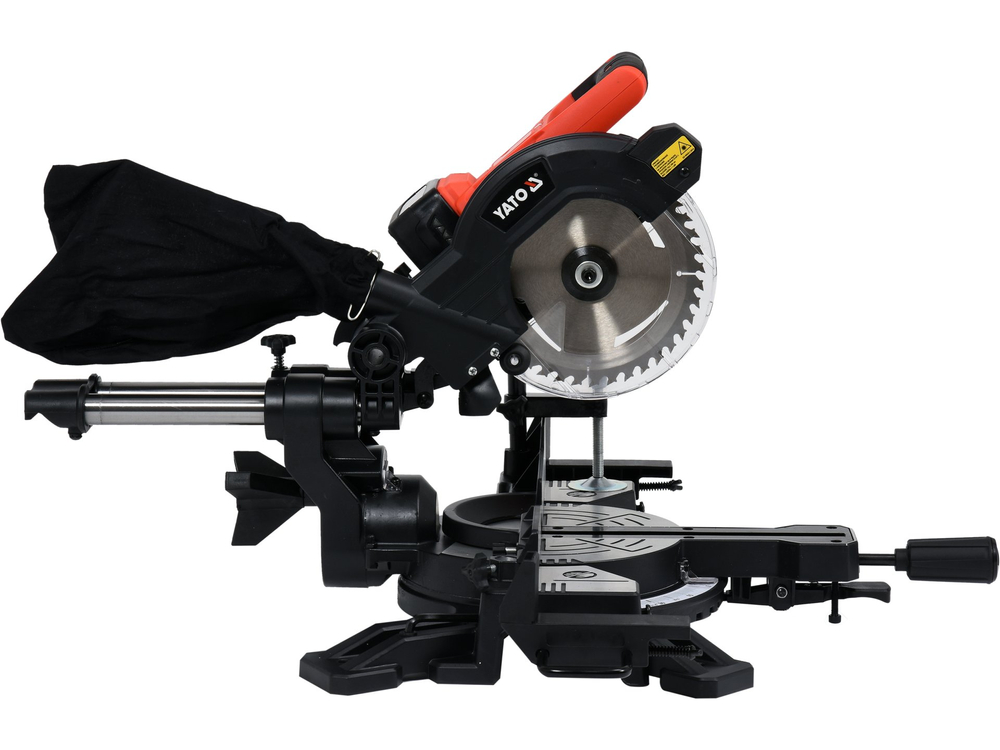

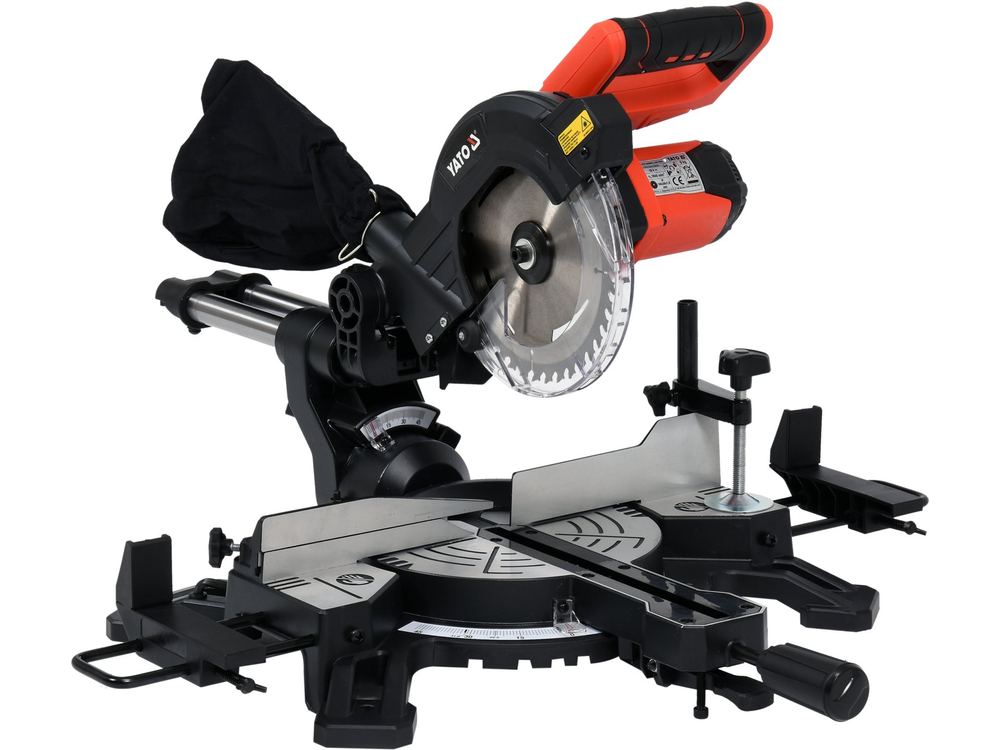

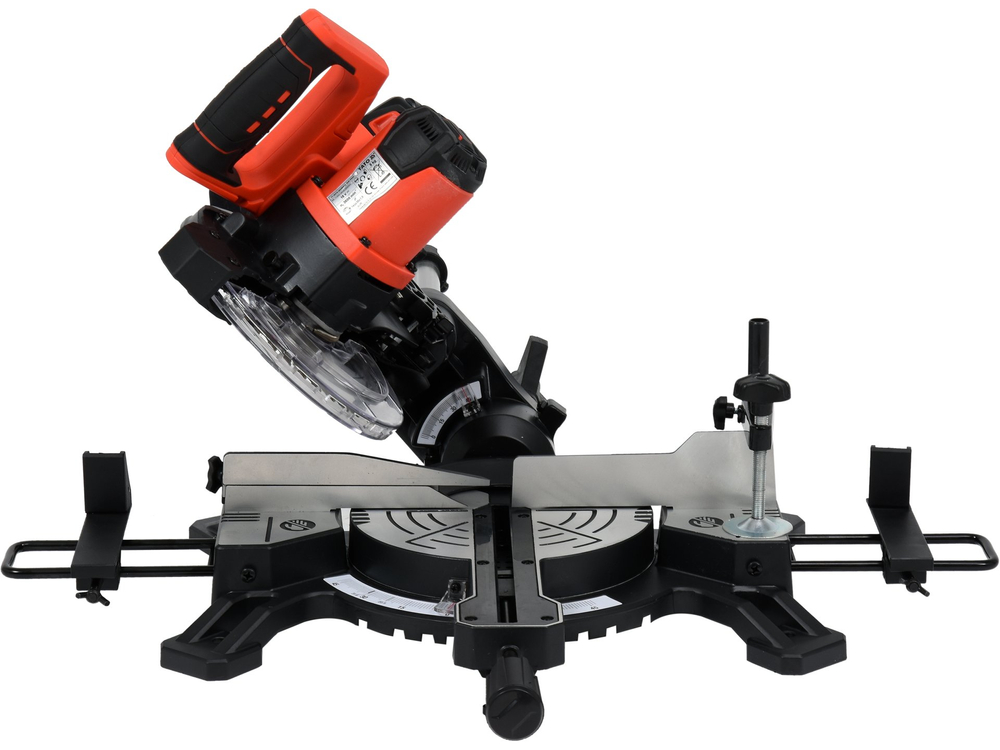

Professional mitre saw with feed designed for straight and angle cutting. Useful during renovation and construction work: cutting skirting boards, panels, soffit, parquetów, skirting boards and PVC, cable trays, scantlings, battens, etc. It provides precise and fast cuttingós of materialsós.
- stable metal base with precise vertical and horizontal cutting angle adjustment
- lateral extendable supports make it easy to cut elongated piecesós
- laser cutting line indicator
- bearing-mounted cutting blade feed
- smoothly operating pivoting blade guard, integrated with the switch
- base-integrated clamp for safe and quick immobilization of the workpiece<
- high performance - more than 100 cuts of 4 x 6 cm patches (with 4 Ah battery)

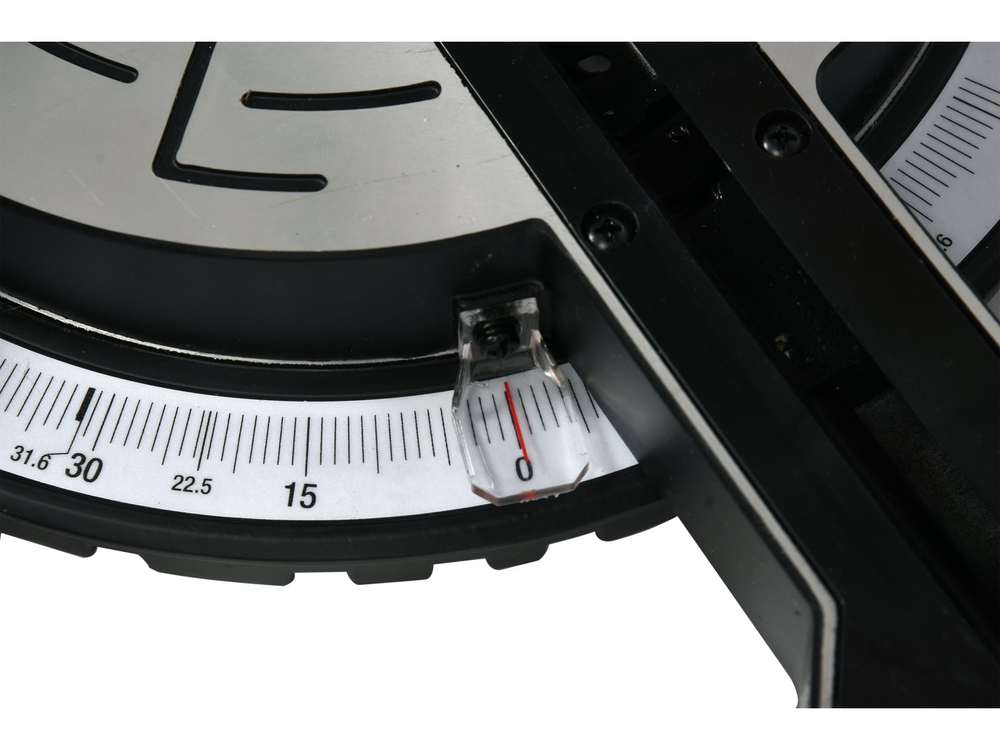

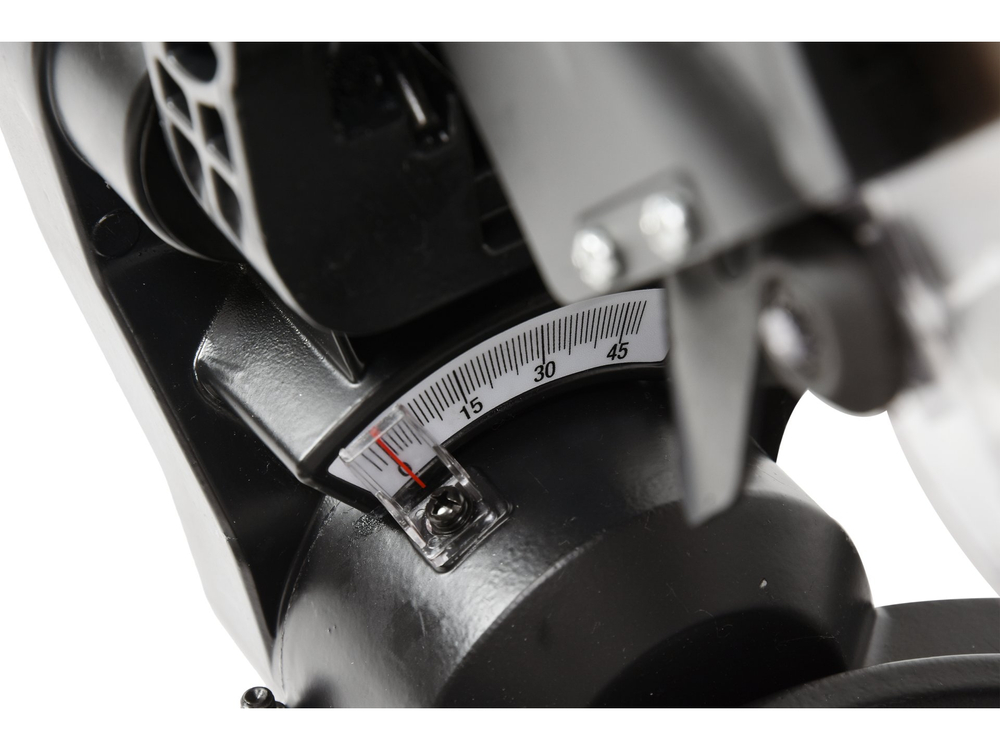

- readable angle graduation for precise cutting
- possibility to use a bag for wióry or connection of a vacuum cleaner
- compact dimensions and transport handle in the central part of the housing ensure proper balance and ease of carrying
- included: wióry bag, 185 mm disc with 30 mm mounting hole
- in stock spare batteries with capacities: 2 Ah (YT-82842), 3 Ah (YT-82843), 4 Ah (YT-82844)
Set:
- bucknife

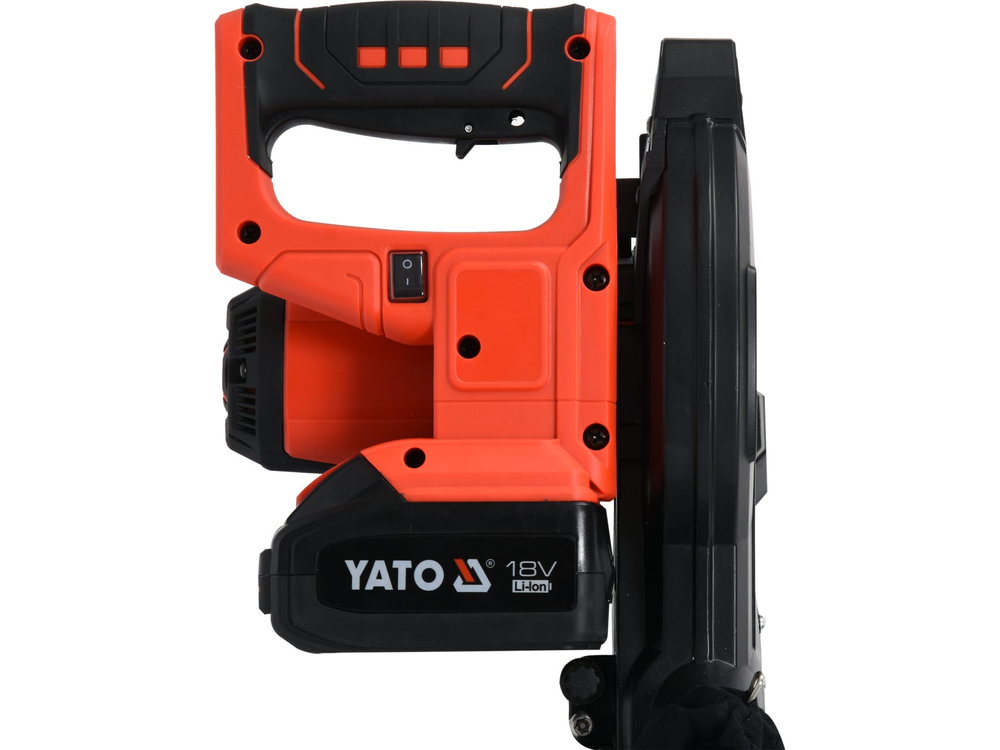

- Li-Ion 18V 4 Ah battery
- fast charger (2 h for 4 Ah battery)
SYSTEM 18 V
The 18 V System is a series of YATO cordless tools thatóre powered by the same durable battery. You can buy the devices in a set with a battery and fast charger, or solo, which is ideal when you're expanding youróy tool set.
Battery-powered power gives you freedom and greater comfort. In addition, YATO cordless tools are durable, handy and perfectly balanced. So that working with them is a pleasure.
- Professionalism
Power, modernity, refined solutions – all this we offer in a series of 18 V devices, created for the most demanding users and professionals.
- Saving
No need to buy multiple batteries and chargers for more tools. With the 18-volt system, you save money, space at home and the environment!
- Choiceór
When your demands grow, the 18-volt collection grows too. With a wide selectionór of tools for the home, workshop and garden, you can create the kit you really need.
Usage warnings:
Attention! Laser radiation. Do not stare into the beam.Class 2 laser device.
