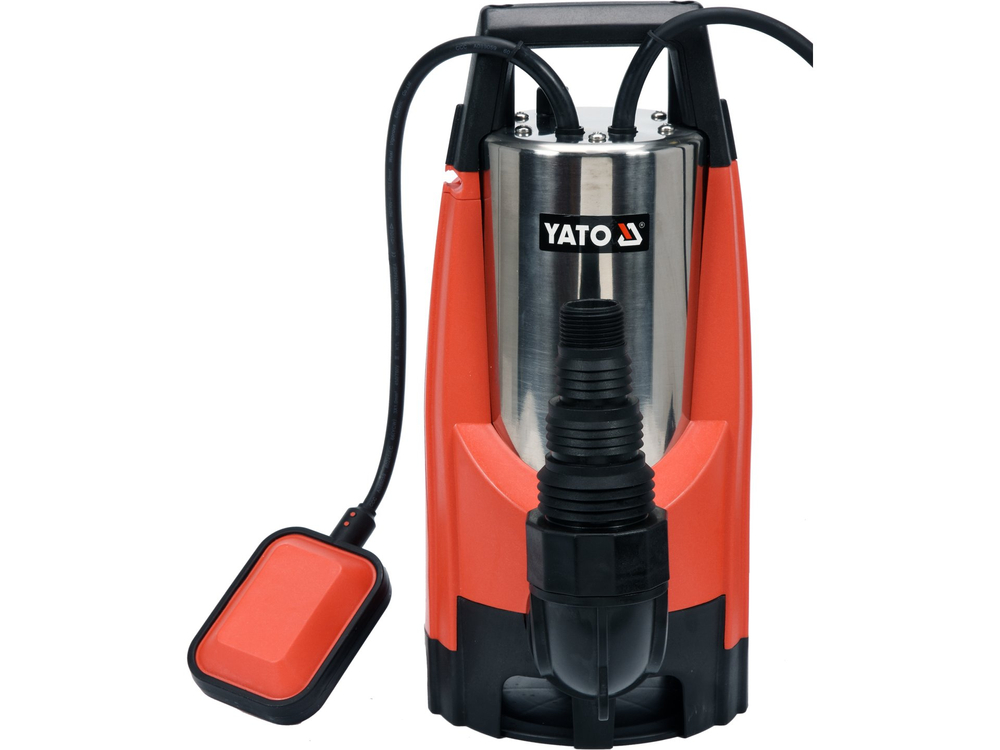

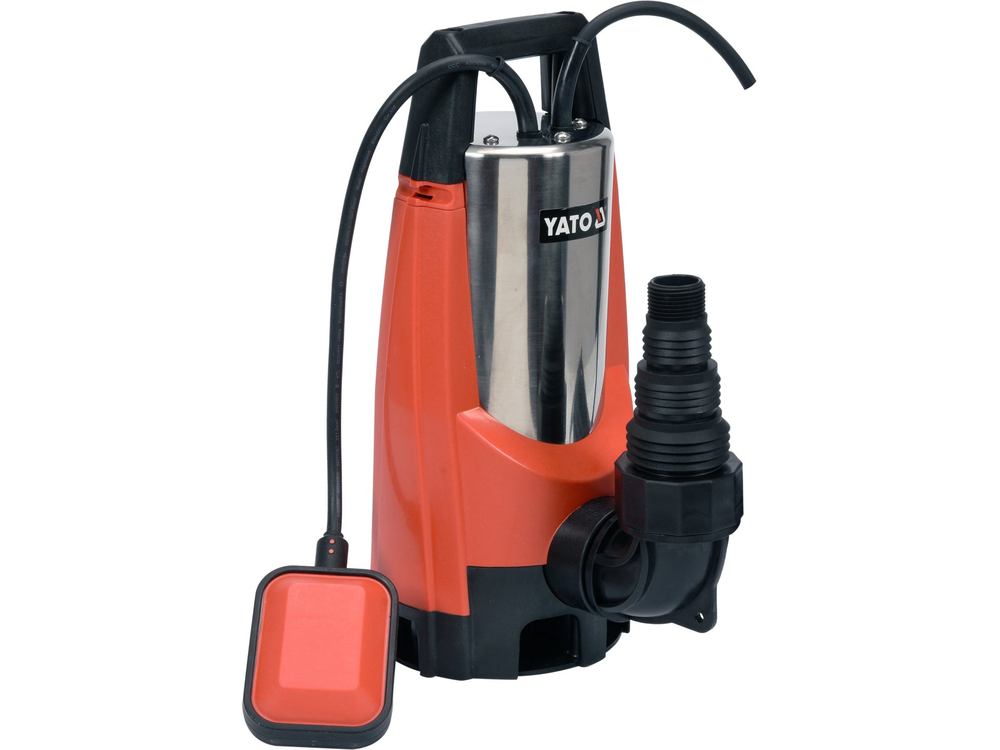

YT-85343
SUBMERSIBLE PUMP INOX 1100W
Brand
Symbol
YT-85343
Producer code
5906083051302
Series
Power
1100 W
Max. capacity
17000 l/h
Voltage
230 V a.c.
Frequency
50 Hz
Water connection diameter
G1, G1-1/4, G1-1/2
Max. pumping height
10 m
Depth of immersion
7 m
Min. shaft cross-section
40x40 cm
Max. Diameter of mechanical pollutants
30 mm
Water temperature
35 ˚C
Float switch
Yes
Thermal switch
No
Switching level
ok. 0.025 m
Exclusion level
ok. 0.025 m
Housing material
stainless steel
Dimensions (diameter x height)
220x350 mm
Length of cable
7 m
Electrical insulation class
I
Ingress protection
IPX8
Weight
7.3 kg
Contents of the set
submersible pump, a hose attachment
Designed for pumping out water from basements, garages, swimming pools and ponds.
Can be used in households and farms, on allotments, construction sites.
- solid housing made of durable and resistant to corrosion and biological conditions stainless steel (inox)
- max. depth of immersion: 7 m
- max water temp: 35°C
- max. diameter of dirt: 30 mm
- rubber cable length. 10 m
- included 1.5ʺ (38 mm)
