YT-85330
SUBMERSIBLE PUMP 400W
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
400 W
Max. capacity
11000 l/h
Voltage
220-240 V a.c.
Frequency
50 Hz
Water outlet diameter
G1, G1-1/4, G1-1/2
Max. head
5.8 m
Max. submersion depth
7 m
Min. shaft dimensions
40x40 cm
Max. foreign matter diameter
30 mm
Max. water temperature
35 ˚C
Float switch
yes
Thermal switch
yes
Power on level
ok. -0.35 m
Power off level
ok. -0.07 m
Casing material
PVC
Dimensions (diameter x height)
170x300 mm
Cable length
7 m
Electric insulation class
I
Protection grade
IPX8
Weight
3.8 kg
Set includes
submersible pump, base x2 (for dirty and clean water), connector for attaching the hose
Symbol
YT-85330

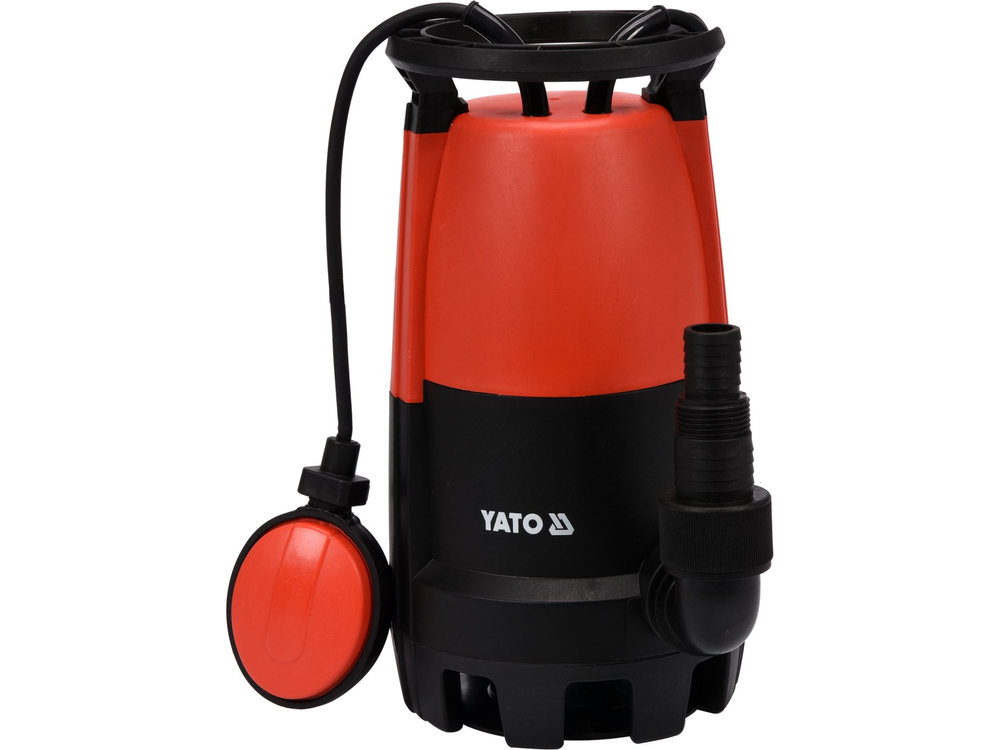

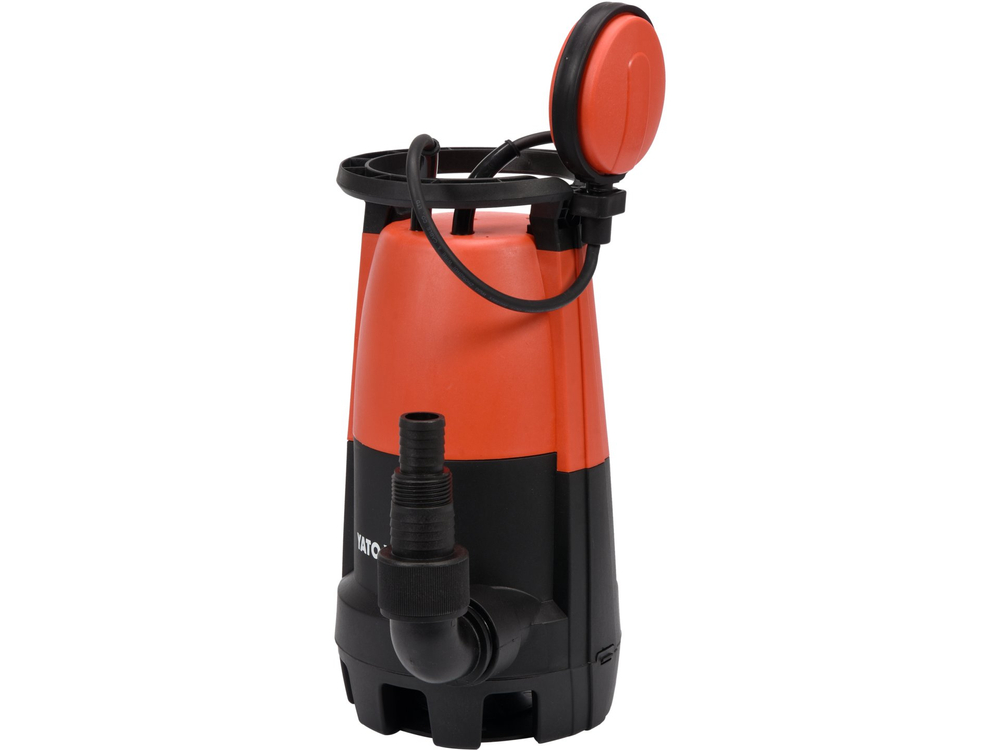

The 3-in-1 submersible pump for clean and dirty water is one of the most versatile and efficient pumps.
Designed for pumping and circulating clean and dirty water from rainwater tanks and wells. It can be used in households and farms, allotments, construction sites for pumping water out of poolsów, ponds, basements and excavationsów.
Can pump water practically to the level of 1 mm! - without putting on any of the twoów pump bases. This allows you to effectively drain flooded basements, remove water from swimming poolsós, ponds, rain barrelsós and any flooded areasós that need to be drained, etc.
The distinguishing features of this type of pump are:

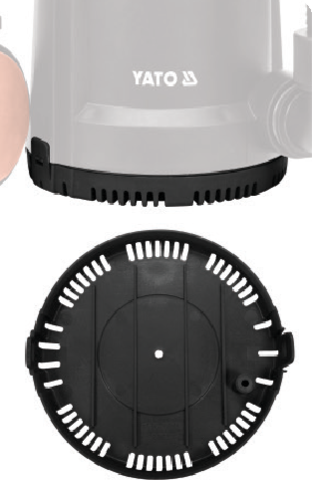

- interchangeable pump bases: dirty water pump base – can pump debris smaller than 30 mm; p.clean-water pumping unit - can pump debris smaller than 5 mm; work through pump base – pump water down to 1 mm level!
- possibility of automatic operation (switch float switch active) or continuous operation (switch float switch locked vertically on handle)
- compact design, ergonomics and light weight product<

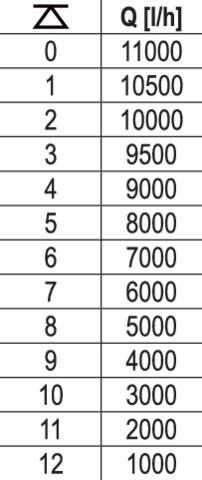

- very good performance: flow rate for a 400 W pump = 11 m3/h (with the head, as with any pump, the flow rate decreases)
- motor overload protection
- stainless steel rotor shaft, maintenance-free bearing and sealed housing ensure trouble-free use
Additional information:
- automatic float switch responding to changing water level
- .water-cooled motor with thermal switch to prevent overheating
- solid housing made of impact- and corrosion-resistant plastic
- max. submersion depth: 7 m
- max water temp: 35°C
- max. diameter of dirt: 30 mm
- rubber hoseód length. 10 m
Included:
- 2 bases – for clean and dirty water
- 1.5" (38 mm)
