Cutting bevel with 305mm 1800w blade with laser for cutting large parts

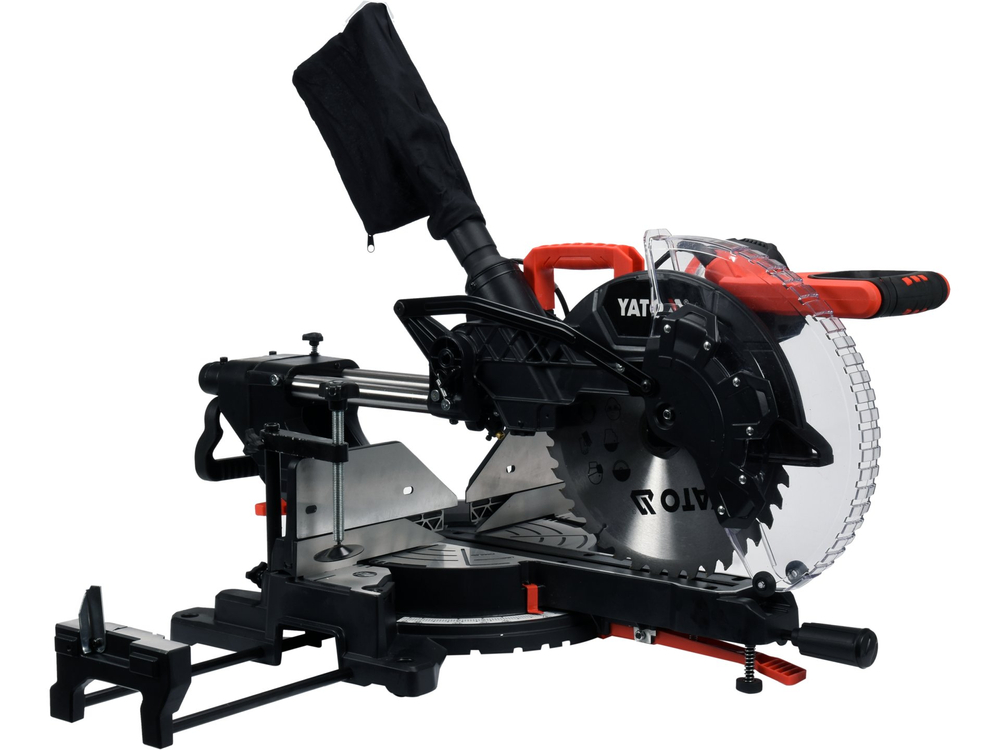

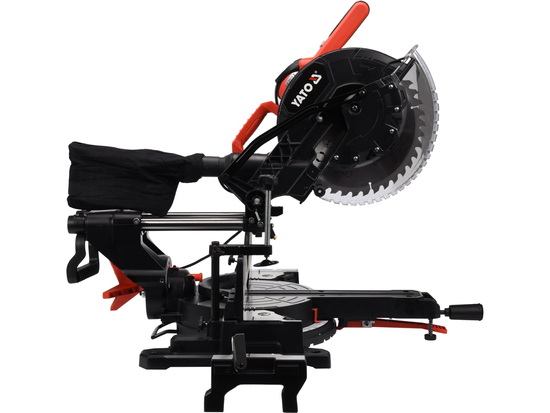

Professional mitre saw with feed and 305mm blade designed for straight and angular cutting of large elements (pillars, purlins, joists).

Purposeful during construction work. Provides precise and fast processing of materials with large cross sections.

Provides precise and fast processing of materials with large cross sections

Features of Yato mitre saw:

• stable base with precise vertical and horizontal cutting angle adjustment
• lateral extendable supports make it easy to cut elongated pieces
• .laser cutting line indicator
• bearing cutting wheel advance
• smooth-action pivoting blade guard, integrated into the switch
• .clamp integrated into the base ensures safe and quick immobilization of the workpiece
• readable angle graduation for precise cutting and stable settings
• .possibility of using a chip bag or connecting a vacuum cleaner
• compact dimensions and a transport handle in the central part of the housing ensure proper balance and easy handling

Package contents:

• cutting machine
• dust collection bag
• disc saw
• .workbench extensions
• workbench clamp
• workbench locking screw

Parameters:

• Rating voltage [V~]: 220 - 240
• Rating power [W]: 1800
• Rating speed [rpm]: 5000
• shield saw: diam. outer x clamping diameter x thickness max [mm]: 305 x 30 x 3.0
• minimum workpiece dimensions: H. x length x thickness [mm]: 20 x 200 x 20
• maximum bevel cutting angle [deg.]: 45
• insulation class: II
• grade of protection: IP20
• weight [kg]: 21

Max. height x max. cutting length:

• horizontal rotation angle 0 deg. / tilt angle 0 deg[mm]: 105 x 340
• horizontal rotation angle 45 deg.  / tilt angle 0 deg. [mm]: 105 x 235
• horizontal rotation angle 0 st. / tilt angle 45 st. [mm]: 60 x 340
• horizontal rotation angle 45 st. / 45 st. tilt angle [mm]: 60 x 235

The bevel allows you to set two types of angles:

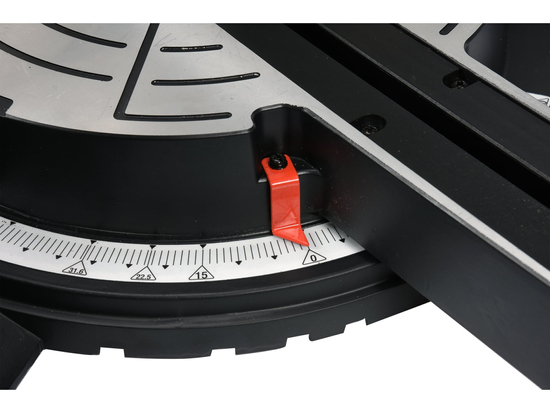

• longitudinal cutting angle: it is possible to rotate the head within +/- 45 degrees. To make it easier to set the head angle, the bevel has a scale with a ratchet that allows easy setting of the head at the most common angles .nbsp;(0; 15; 22.5; 31.6; 45 degrees)

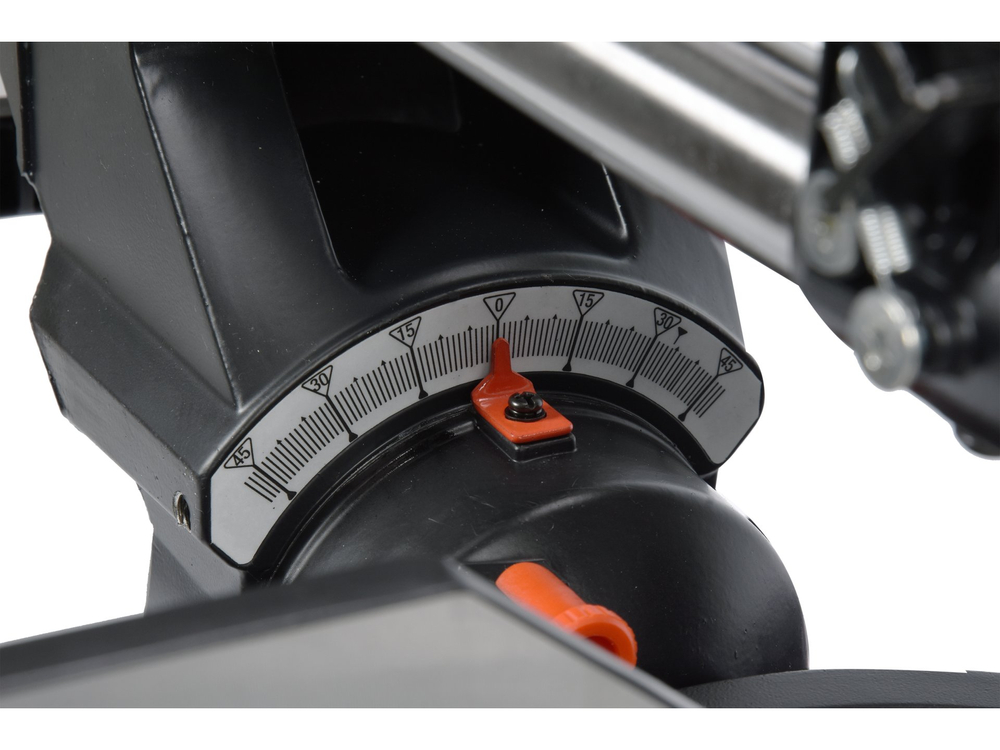

• cross-cutting angle (bevel): it is possible to tilt the cutting head by an angle not exceeding 45 degrees. When setting the angle, you can use the scale marked on the base of the table

The cutter is equipped with a spigot that enables the connection of an attached bag or an external dust extraction system.
