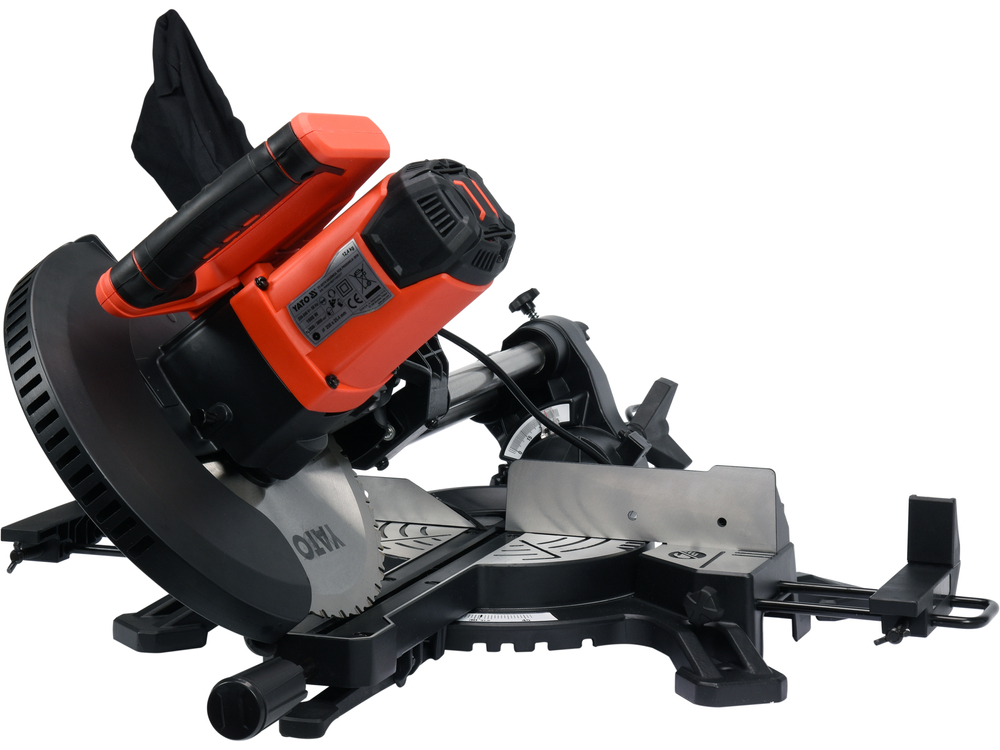

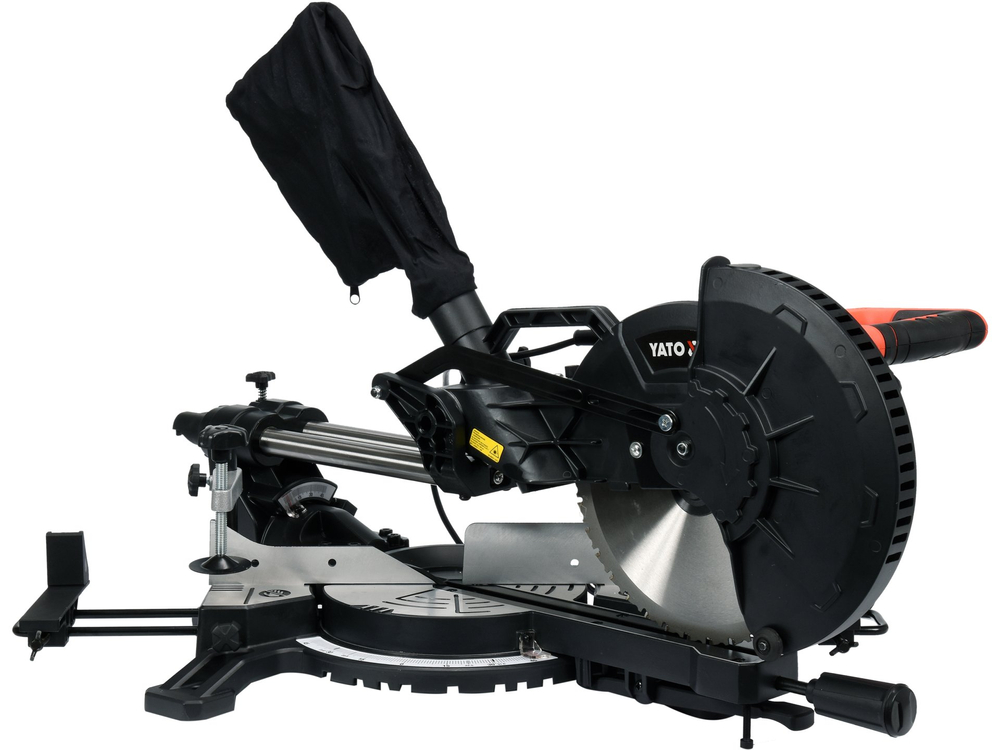

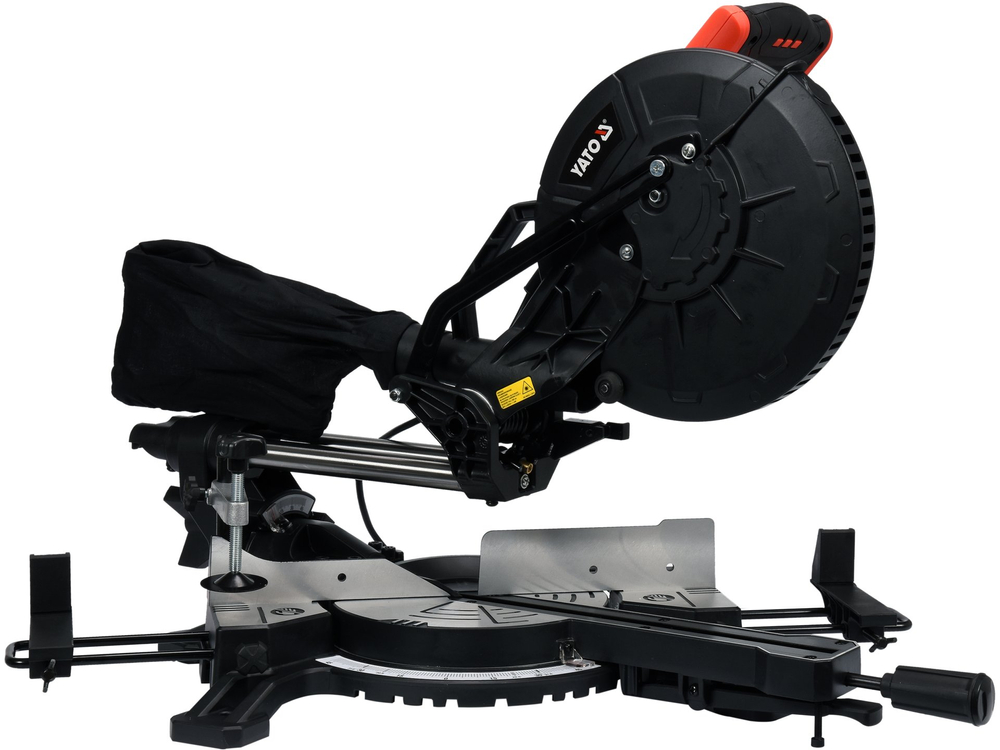

Cutting bevel 255mm for wood and steel 1800w with two gears and feed function.

Professional bevel with feed designed for straight and angle cutting of wood and steel.

Purposeful for repair and construction work, including cutting:

• floor skirting boards
• panels
• soffits
• parquetting
• .skirting boards and PVC
• cable plugs
• scantlings
• battens
• steel profiles, e.g. for railings and gates, etcfor railings and gates, etc.

Provides precise and fast processing of materials.

Features of Yato mitre saw:

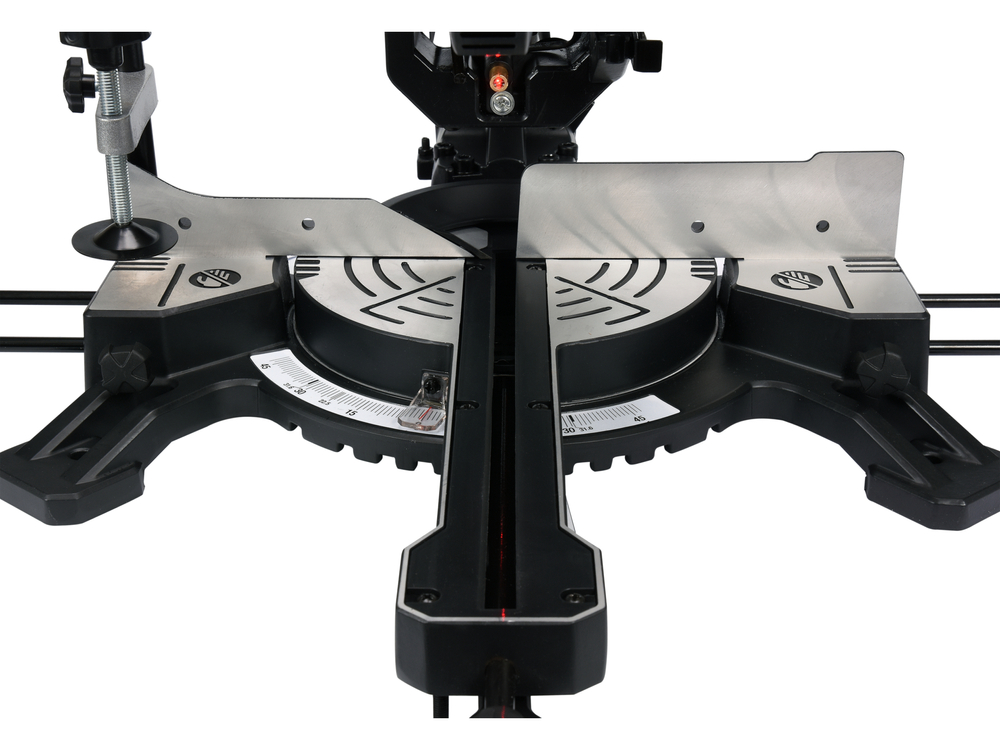

• stable base with precise vertical and horizontal cutting angle adjustment
• lateral extendable supports make it easy to cut elongated workpieces
• laser cutting line indicator
.
• bearing cutting wheel advance
• smooth-operating pivoting blade guard, integrated with the on/off switch
• bearing blade advance
. /li>
• clip integrated into the base ensures safe and quick immobilization of the workpiece
• .easy-to-read angle graduation ensures precise cutting
• possibility to use a chip bag or connect a vacuum cleaner
• compact dimensions and a transport handle in the center of the housing ensure proper balance and ease of carrying

Included:

• cut-off machine
• dust collection bag
• disc saw
• workbench extensions
• workbench extensions
./li>
• work table clamp
• work table locking screw
• disc 255 x 25.4 mm

Parameters:

• Rating voltage [V~]: 220 - 240
• Rating power [W]: 1800
• Rating speed 2nd gear [min-1]: 3800
• Rating speed 1st gear [min-1]: 2500
• shield saw: diam. Outer x attachment diameter x thickness max. [mm]: 255 x 25.4 x 1.4
• minimum workpiece dimensions: H. x length x thickness [mm]: 20 x 200 x 5
• maximum bevel cutting angle [deg.]: 45
• insulation class: II
• grade of protection: IPX0
• weight [kg]: 12.4

Max height x max cutting length:

• horizontal rotation angle 0 deg. / tilt angle 0 deg[mm]: 75 x 305
• horizontal rotation angle 45 st.  /tilt angle 0 st. [mm]: 75 x 210
• horizontal swivel angle 0 st. / tilt angle 45 st. [mm]: 40 x 305
• horizontal swivel angle 45 st. / tilt angle 45 st. [mm]: 40 x 210

The bevel allows you to set two types of angles:

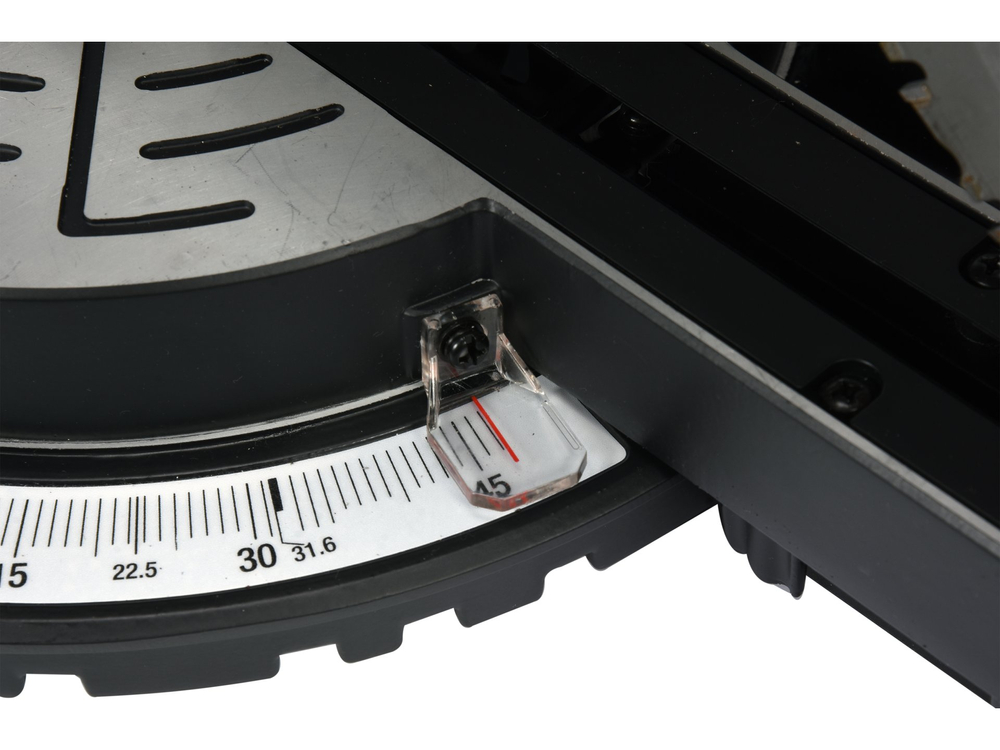

• longitudinal cutting angle: it is possible to rotate the head within +/- 45 degrees. To make it easier to set the angle of the head, the bevel has a scale with a ratchet that allows easy setting of the head in the most common angles (0; 15; 22.5; 31.6; 45 degrees)

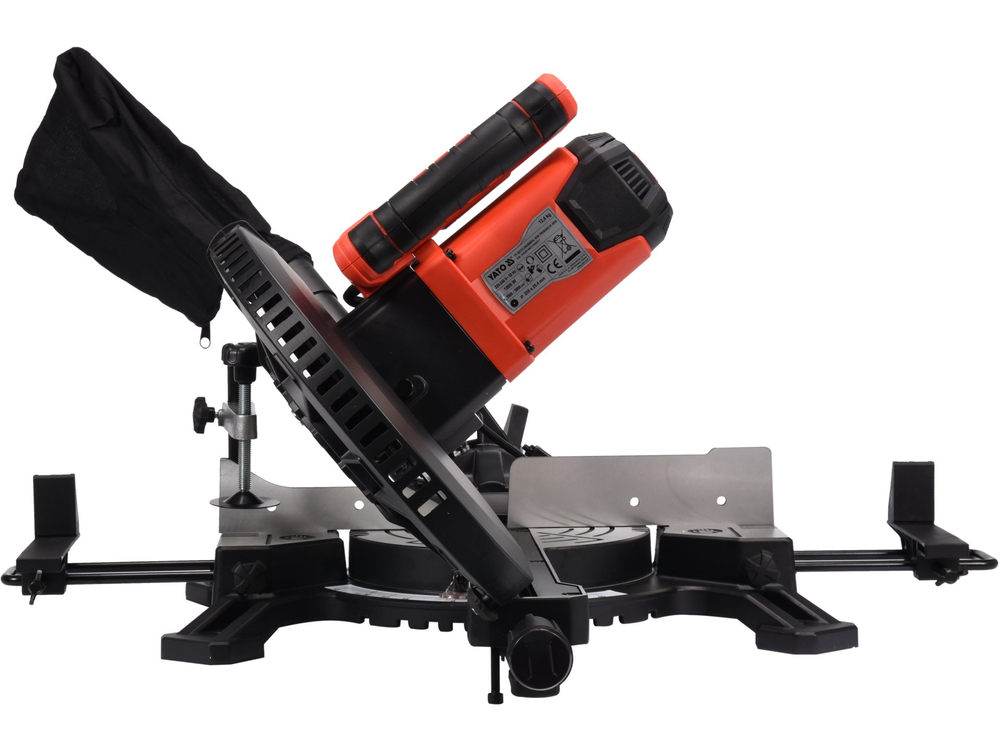

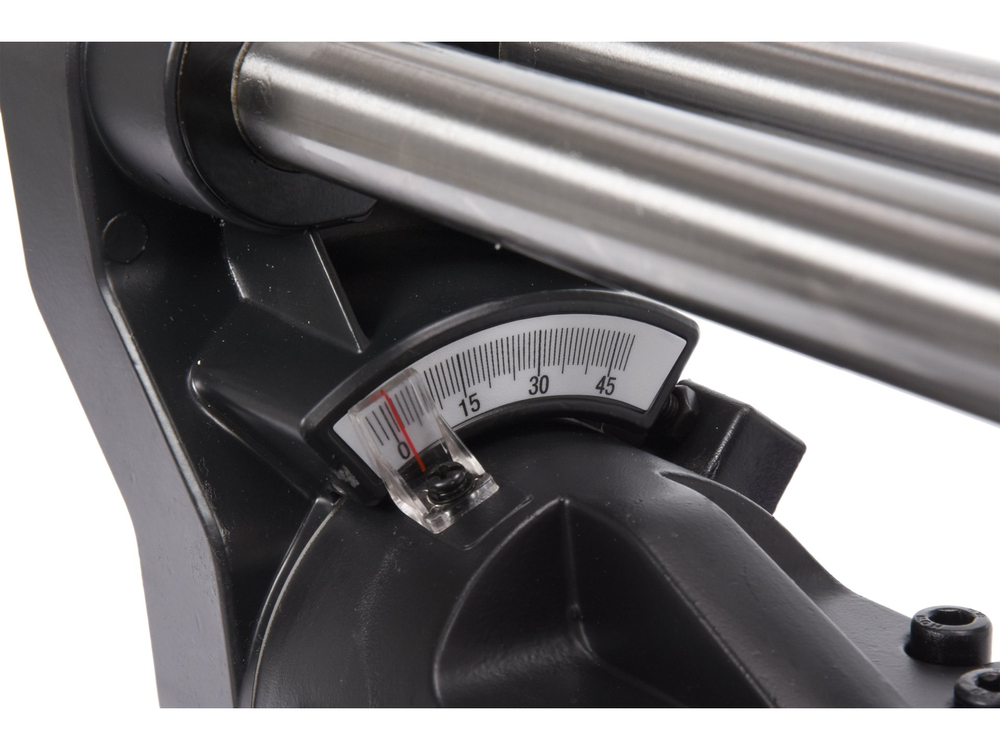

• cross-cutting angle (bevel): it is possible to tilt the cutting head by an angle not exceeding 45 degrees. When setting the angle, you can use the scale marked on the base of the table

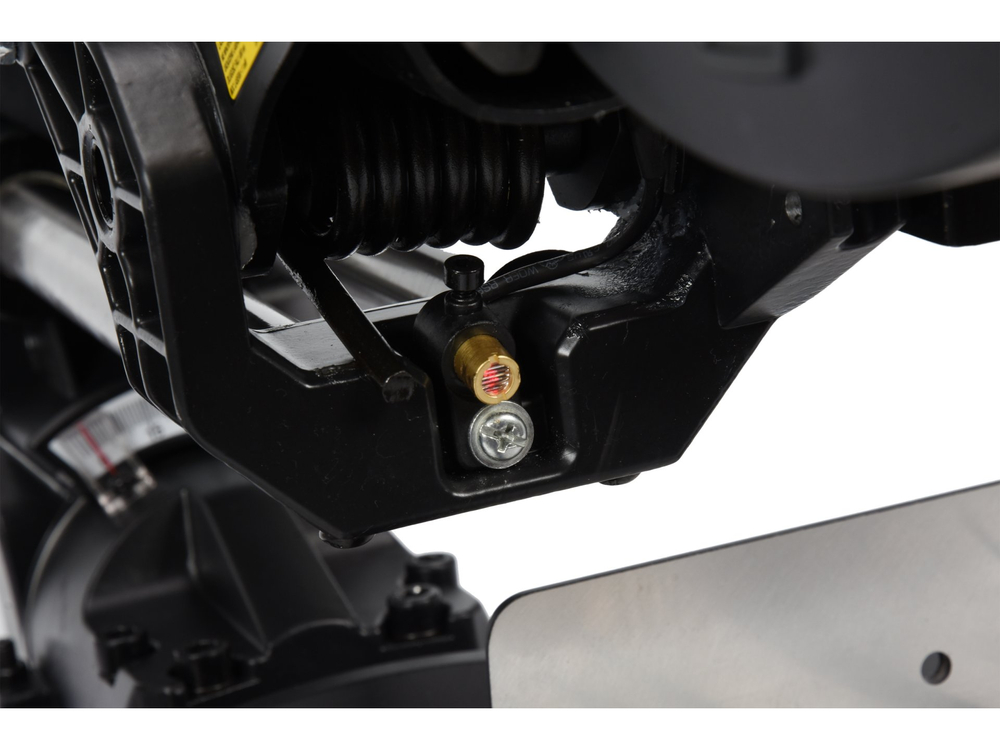

The saw has a laser pointer that shows the cutting line on the material mounted to the table. The pointer is activated with an independent switch.

The bevel is equipped with a spigot that enables the connection of a bag that comes with the bevel or an external dust extraction system.
