YT-85370

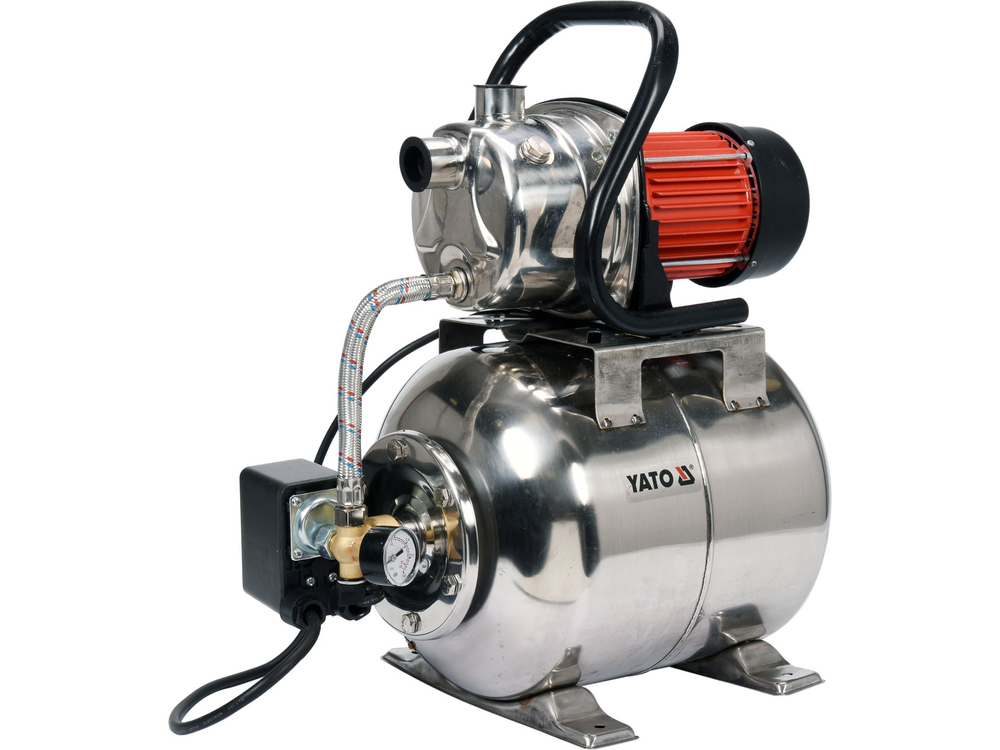

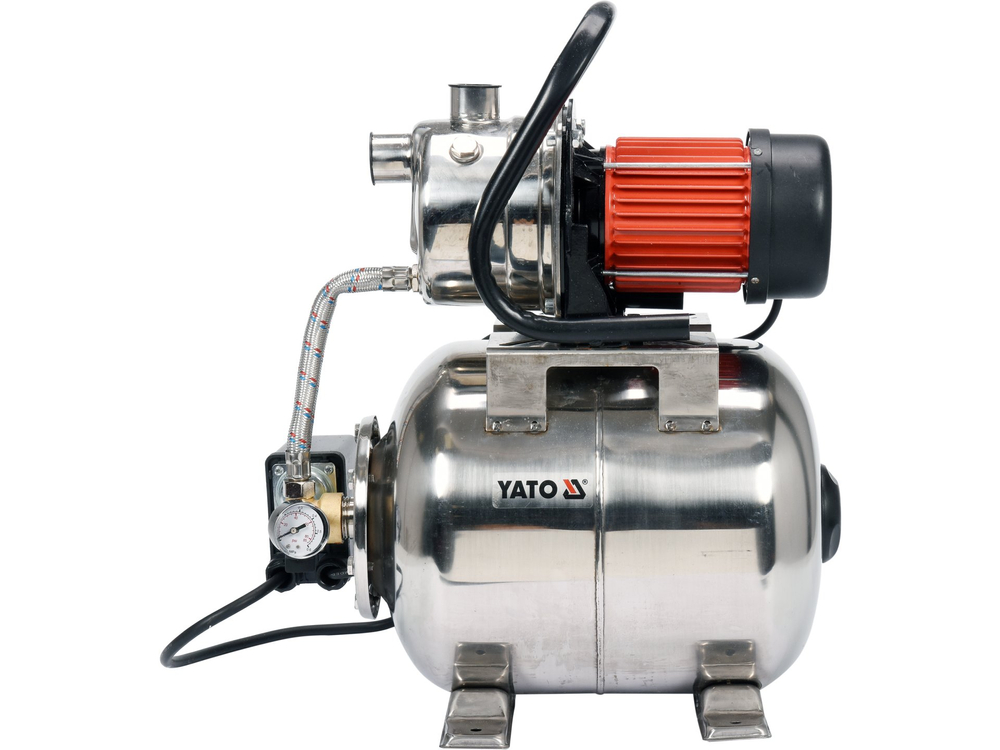

WATER SUPPLY PUMP WITH TANK 1200W
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
1200 W
Max. capacity
4000 l/h
Voltage
230 V a.c.
Frequency
50 Hz
Water outlet diameter
G1
Max. head
50 m
Max. submersion depth
9 m
Max. water temperature
35 ˚C
Max. air pressure
0.28 MPa
Power on level
0.15 m
Power off level
0.28 m
Manometer
yes
Tank capacity
19 l
Casing material
stainless steel
Cable length
1.5 m
Electric insulation class
I
Protection grade
IPX4
Acoustic pressure
69.43 ± 1.49 dB(A)
Acoustic power
82.35 ± 1.49 dB(A)
Weight
10.6 kg
Symbol
YT-85370










Hydrophore improves the use of water and maintains its pressure at the appropriate level. Used in facilities not connected to the local water supply system and those tható despite the power supply need an additional connection, for example, because the pressure of the stream in the tap is too low. Provides a constant flow of water in the household, summer house, on the plot. It also facilitates róve taking water from the well, for example, for watering plants in the garden.
- designed for pumping clean water
- the built-in regulator automatically activates the pump as indicated by the pressure switch./strong>without involving the user
- prevents overuse of the pump during startup and shutdown and reduces pump run time
- equipped with a pressure gauge to read water pressure from outside
- housing made of stainless steel INOX
- holes in the base allow the pump to be bolted to the ground
- reservoir capacity: 19 l
- max capacity: 4000 l/h
- max head: 50 m
- max. suction depth: 9 m
- max water temperature: 35°C
- protection rating: IPX4
- connection diameter: 1"
