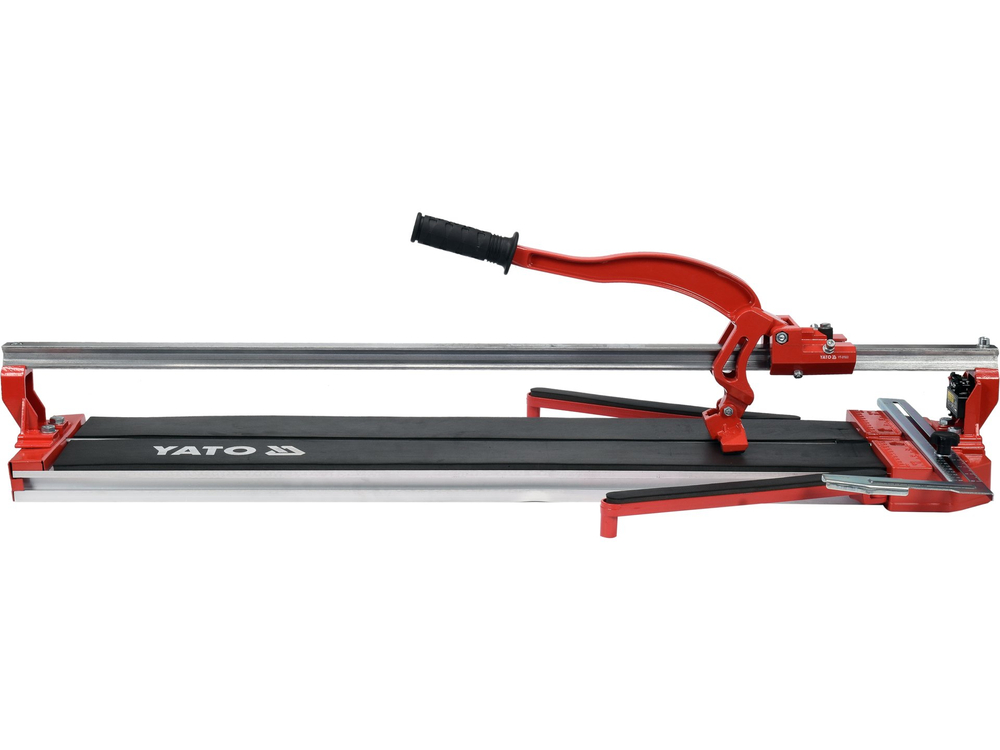

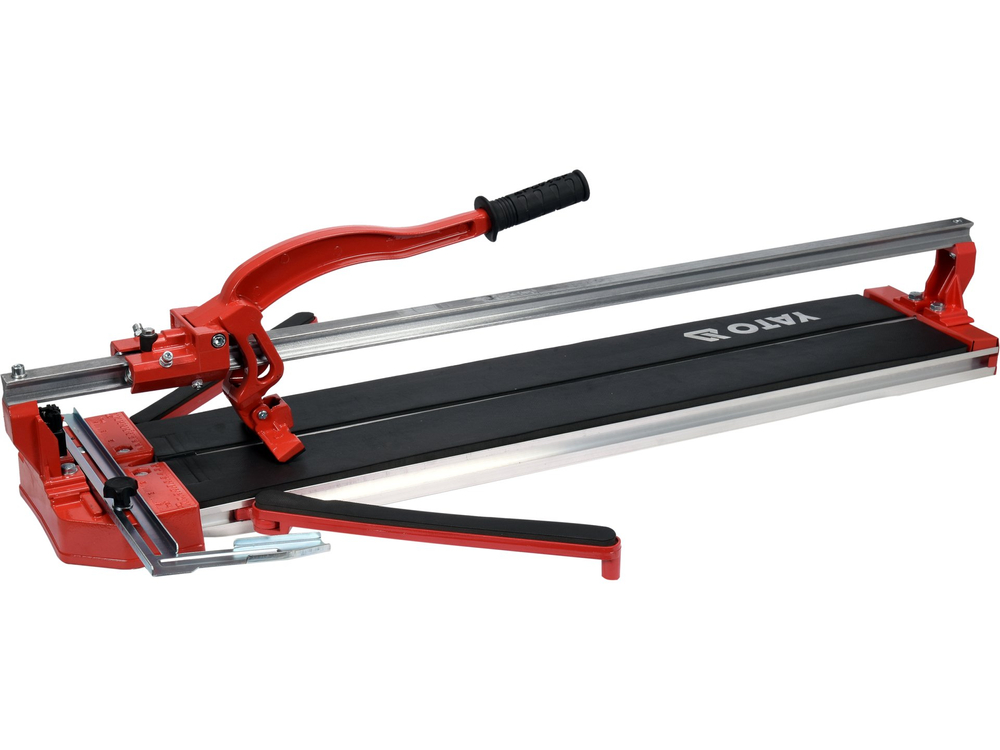

Cutting machine with laser pointer, designed for ceramic tiles with a maximum length of 800 mm. The stable base of the device is made of aluminum. The combined cutting knife and effective breaker move on a single steel guide /breaker unit bearing/.

The cutting plate is lined with a laser pointer

The work plate, 850 mm long, is lined with technical micro-rubber. It has two folding side supports, used when cutting large boards. Angle cuts are also facilitated by an additional adjustable metal angle bracket.

The machine is equipped with an additional metal angle bracket

• Maximum thickness of the cut boards is 12 mm
• Diameter of cut boards is 597 mm
• Cutting blade, bearing-supported, with a diameter of 22 mm /hole of 6 mm, thickness of 6 mm.

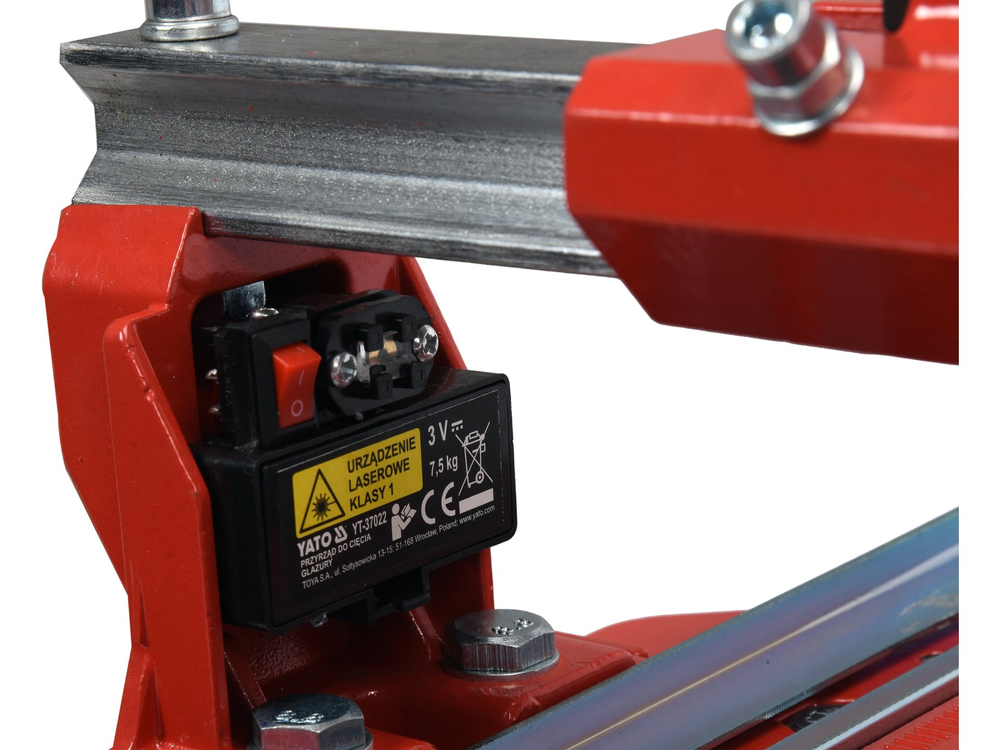

The cutter has a laser cutting indicator / power supply 3 batteries 1.5 V, type AA. The laser emits a clear, clearly visible red line, along which the cutting knife is moved. Using the help of the laser avoids scribbling lines on the surface of the cut tiles.

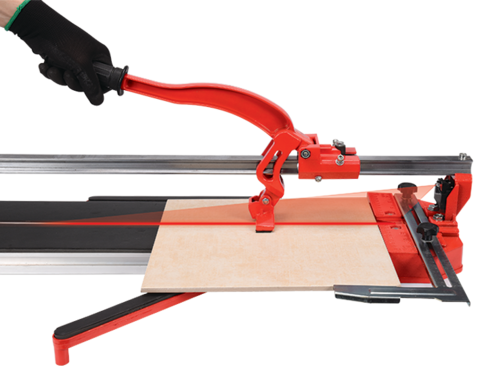

Cutting machine for cutting and breaking ceramic tiles with a maximum thickness of 12 mm and a length of up to 800 mm. When the laser pointer is turned on, a red ray is displayed on the surface of the cut tile , indicating the cutting line precisely.

For the cutter fits interchangeable blades / wheels / with indices:

• YT-37351 bearing with tin coating
• YT-37350 bearing
• 03225 bearing
