Name: LINEAR DRAIN SNAKE 90CM WET AND DRY
Brand: Fala
Availability: InStock

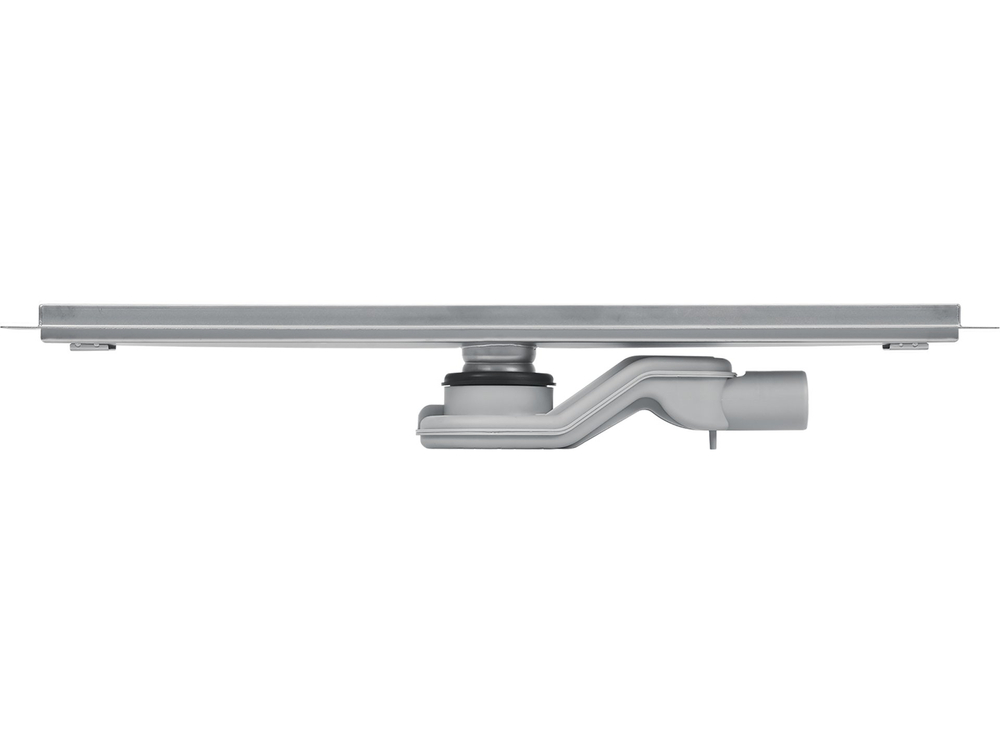

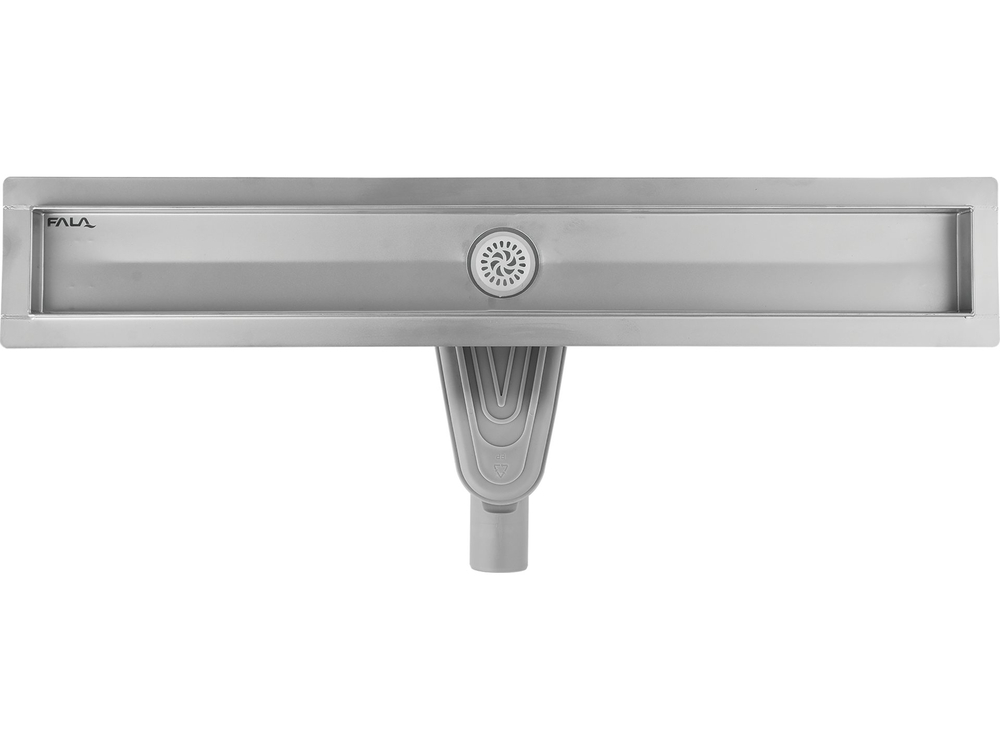

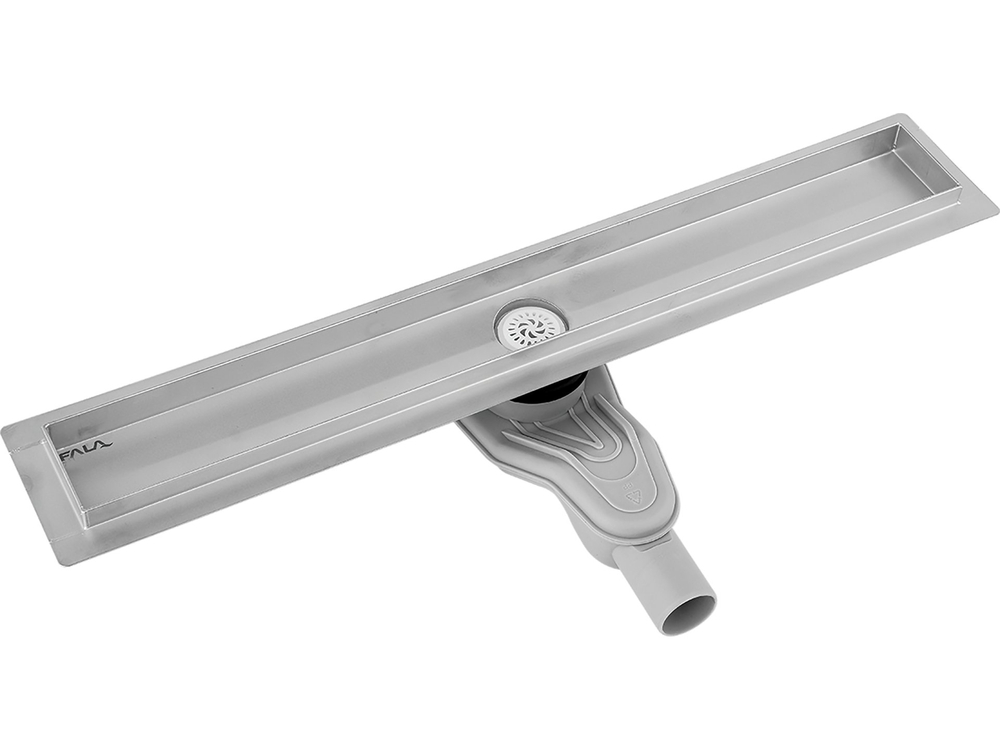

LINEAR DRAIN SNAKE 90CM WET AND DRY

+ Add to compare Add to shopping list

Brand

Fala

Symbol

75344

Producer code

5906083059377

Series

GRF

Series

Snake

Grate pattern

tile to paste, full (double -sided)

Material

stal nierdzewna 304

Gutter length

900 mm

Gutter width

70 mm

Collar width

20 mm

Siphon height

79 mm

Connection size

40 mm

WET&DRY

Yes

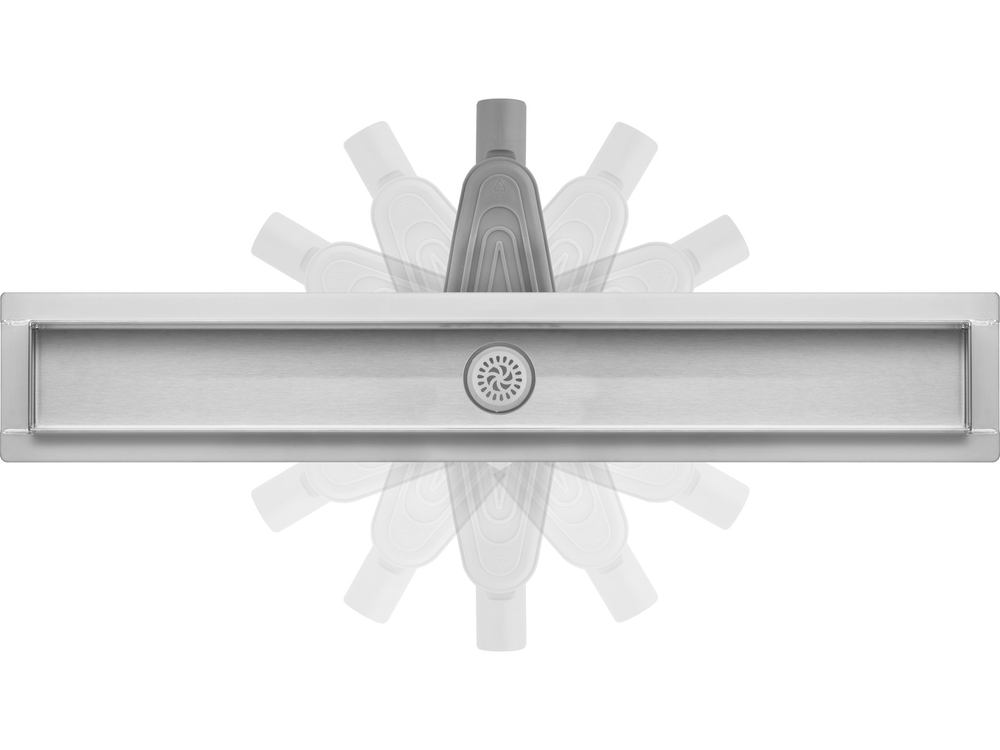

ROTARY360

Yes

2IN1DESIGN

Yes

EASYclean

Yes

HYDROcloth

Yes

STRAINer

Yes

EXTRAslim

Yes

EASYfix

Yes

Application

bathrooms - shower cabins, swimming pools - pools, laundries, boiler rooms, balconies, terraces

Contents of the set

grate, drainage trough with covering, adjustable fastening feet, insulation mat, grate hook

Wave linear drain is an excellent idea for elegant and practical arrangement of bathroom space. Snake models are innovative double-sided drains with the Wet & Dry system. The ability to choose between elegant stainless steel and an individual tile pattern matching the floor gives you unlimited possibilities for bathroom design.The wide selection of available sizesós allows you to optimally match its length to the dimensionsós cabin or tiles, and allows you to plan your shower space with greater freedom than with traditional shower traysós. The gutter and grate are made entirely of AISI 304 stainless steel, whichóra is characterized by resistance to corrosion, detergents and mechanical damage. Wave shower drains are equipped with facilities that guarantee comfortable and efficient operation for many years: - WET&DRY – a special solution in the siphon, whichóre prevents the entry of odorsóand bugsóduring use as well as after drying;- ROTARY360 - the outlet can be set in any direction - EASYclean – is easy to keep clean, thanks to the hook thatós included; - HYDROcloth – a sealing mat is included – an indispensable part for waterproofing;- STRAINer – an effective and durable strainer thatós prevents clogging of the trap and makes it easier to handle the drain on a daily basis; - 2IN1design – Reversible grate allows you to paste a tile or use a solid brushed stainless steel cover. - EXTRAslim – extra low siphon thatóry simplifies installation; - EASYfix – wide range of height adjustment thatóry allows you to match the drain to the floor surface. You will install the Wave drain without any worries – all our drains have a 10-year warranty! Data: - gutter length: 90 cm - grate pattern – insertable tile or full (double-sided) - material: stainless steel AISI 304 - width: 70 mm (additional flange about 2 cm on each side)- trap height: 79 mmThickness of steel of linear drainsós drains:gutter: 1.2 mmpipe: 1.5 mmProduct complies with EN 1253-1Class of load capacity: K3 (surfaces without wheeled traffic)Thermal behavior class of the product: class A (without installation restrictions)Flow rate: more than 36 l/min (shower faucet has a flow rate of about 18 l/min)- bathrooms, shower cabins - swimming pools - laundries, boiler rooms - balconies, terraces - drainage trough with trap - grate - adjustable mounting feet - insulation mat - hook for lifting the grate - instruction manual - warranty card.

To download

User manual 75344
