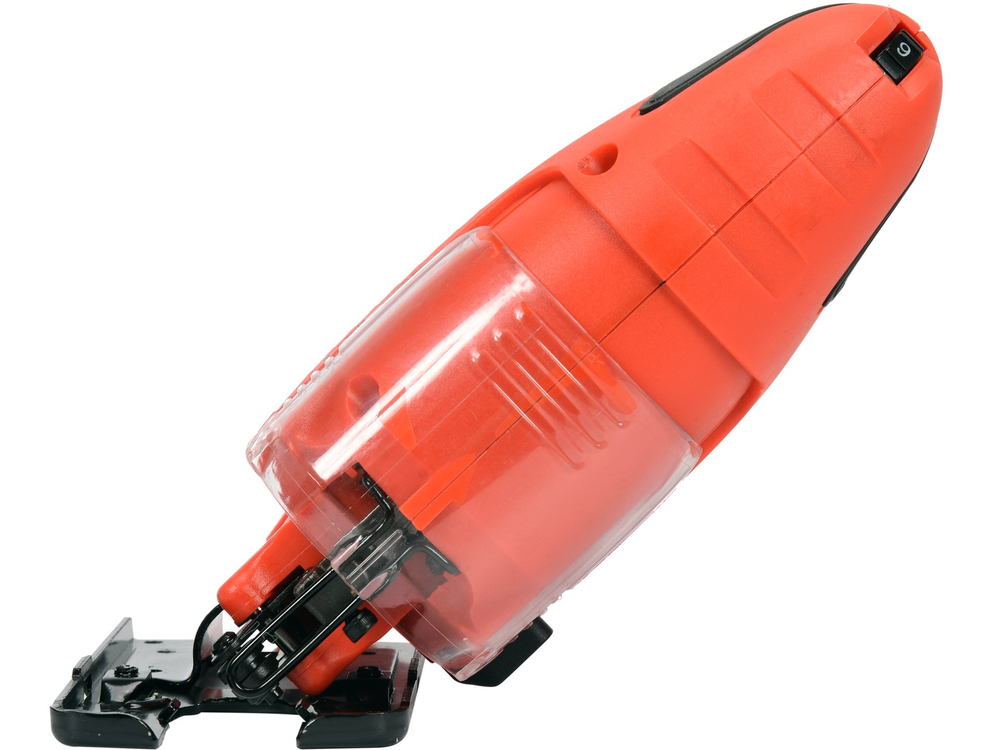

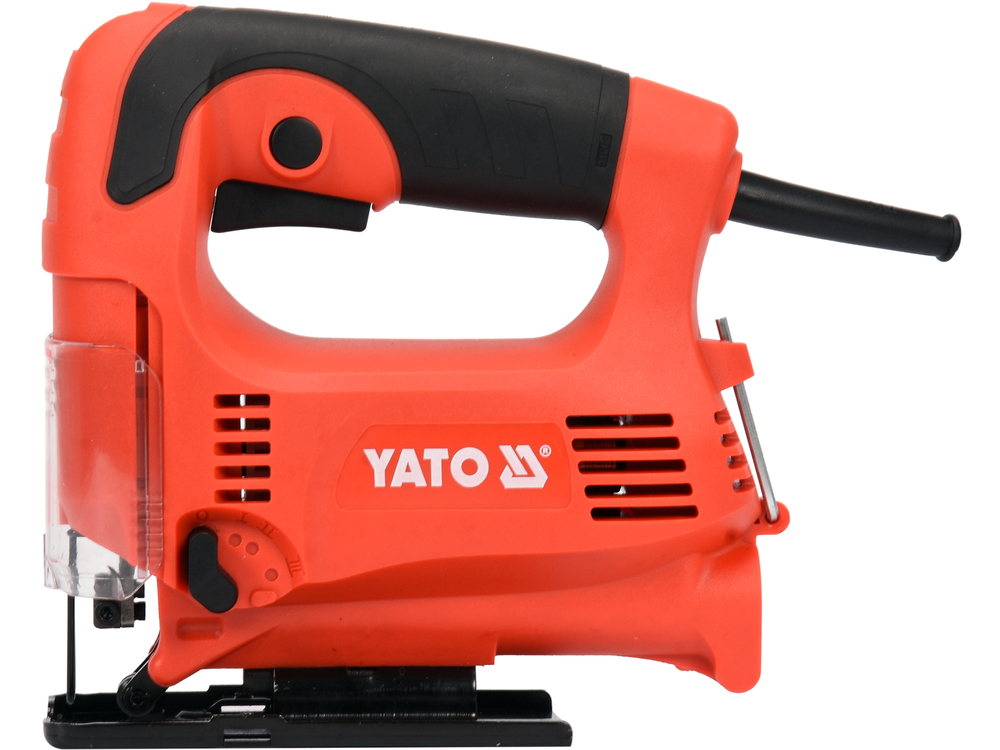

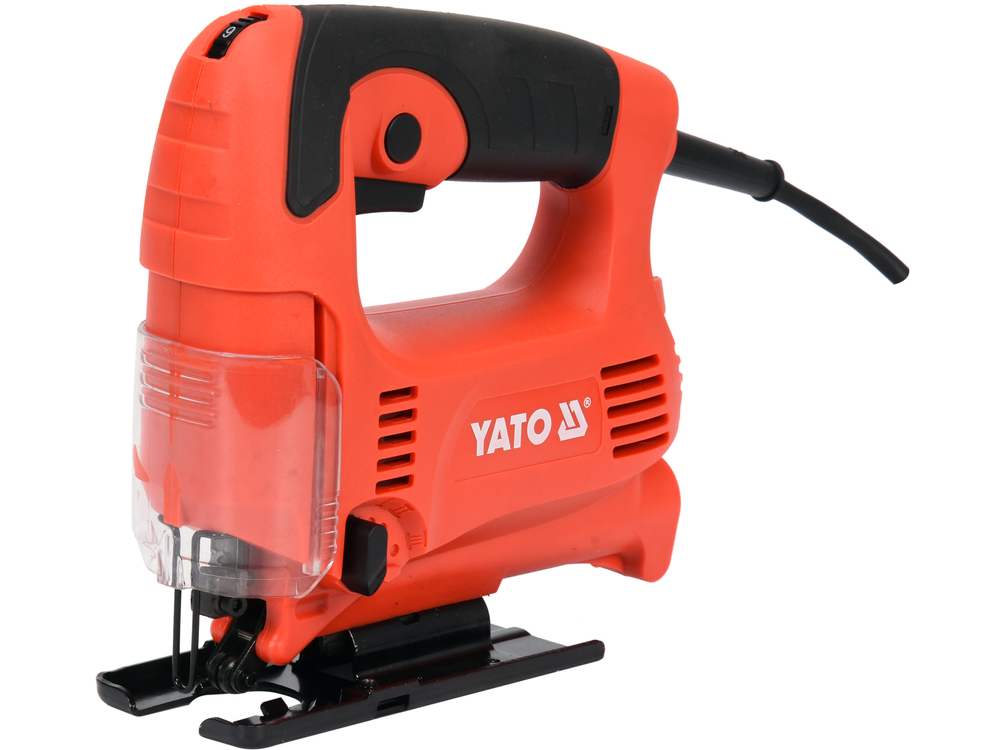

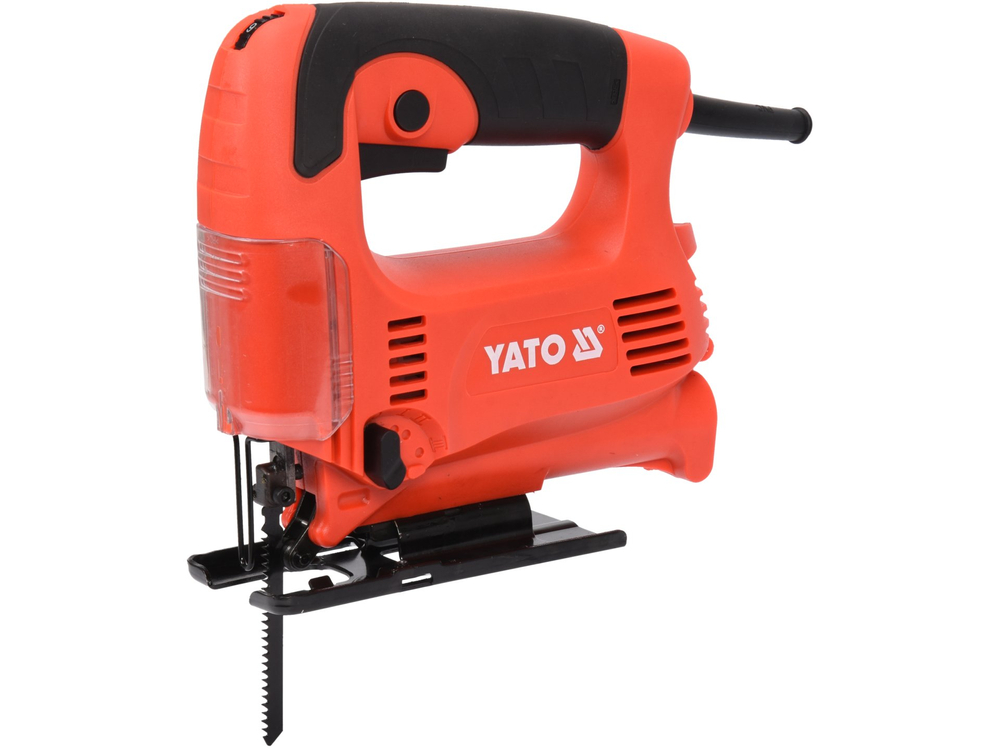

Low-vibration 450w jigsaw for u-type blades

Jigsaw with vibration dampening system, which significantly increases the comfort of work.

Allows you to

• cut round and irregular holes
• plunge cuts
• make long, straight cuts while maintaining a perpendicular edge

The jigsaw is designed for cutting wood and wood-based surfaces, polyethylene or polypropylene panels and soft metals.

Allows easy cutting of work surfaces with the ability to adjust the angle of cut.

Additional information:

• U-type blade
• smooth adjustable speed 500-3100 rpm
• locking button during continuous operation
• pendulum function significantly increases  speed of rectilinear work (positions I-III) or circular cutting (position 0) when, the blade makes only a vertical movement
• max. depth of cut: wood: 65 mm, steel: 6 mm
• level and durable steel foot
• transparent blade guard
• 3m long rubber cable

Adjustable cutting angle

The jigsaw allows you to adjust the cross-cutting angle from 0 to 45 degrees, the angle is possible both left and right.

Blade oscillation adjustment

The jigsaw is equipped with a multi-stage blade oscillation adjustment. The adjustment is possible with a lever. The lower the numerical setting, the lower the blade oscillation. At the setting marked "0", the blade oscillation is turned off.

• in order to obtain the smoothest possible edge of the cut , set the degree of oscillation as low as possible or even turn it off
• when cutting through thin materials (e.g. sheet metal), turn off the oscillation
• cutting hard materials (e.g., steel), set a low degree of oscillation
• cutting soft materials, set a maximum degree of oscillation

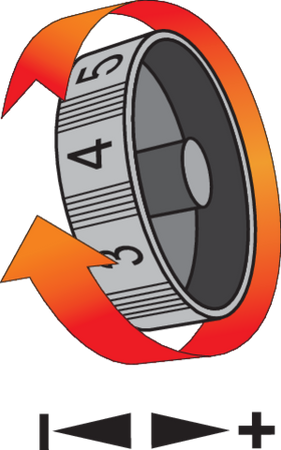

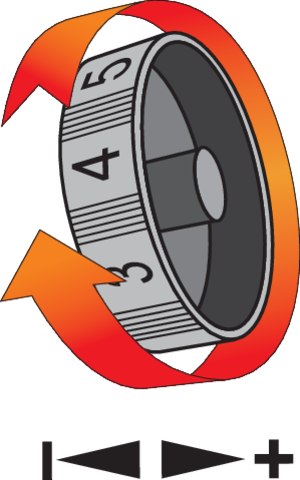

Adjust the blade speed

The jigsaw is equipped with a potentiometer that allows you to set the speed of the blade movement. By turning the ring of the potentiometer, you can select the right blade movement speed for the job.

The lower speed should be used when cutting through plastics or aluminum. You should also reduce the speed if the blade will jam while cutting.

Parameters

• network voltage [V~]: 220 - 240
• rated power [W]: 450
• rpm [min -1]: 510 - 3100
• insulation class: II
• weight [kg]: 2
• protection rating: IP20

Cutting thickness max:

• wood [mm]: 65
• polyethylene/polypropylene [mm]: 6
• soft metals [mm]: 6

In kit

• blades
• wrench
• guide
• spare brushes

Two blades are supplied with the jigsaw. The blade for wood and wood-based materials has more widely spaced teeth, and the blade for metal and plastics has finer teeth.

Two blades are supplied with the jigsaw

Capable of using saw blades with code numbers:

• yt-3435 - 6 tpi, for wood
• yt -3440 - 21 tpi, for metal
• yt -3441 -12 tpi, for metal
• yt -3442 - 36 tpi, for metal
• yt -3443 - 21-16 tpi, for metal
• yt -3444 - 10-5 tpi, for wood and metal
