YT-55840

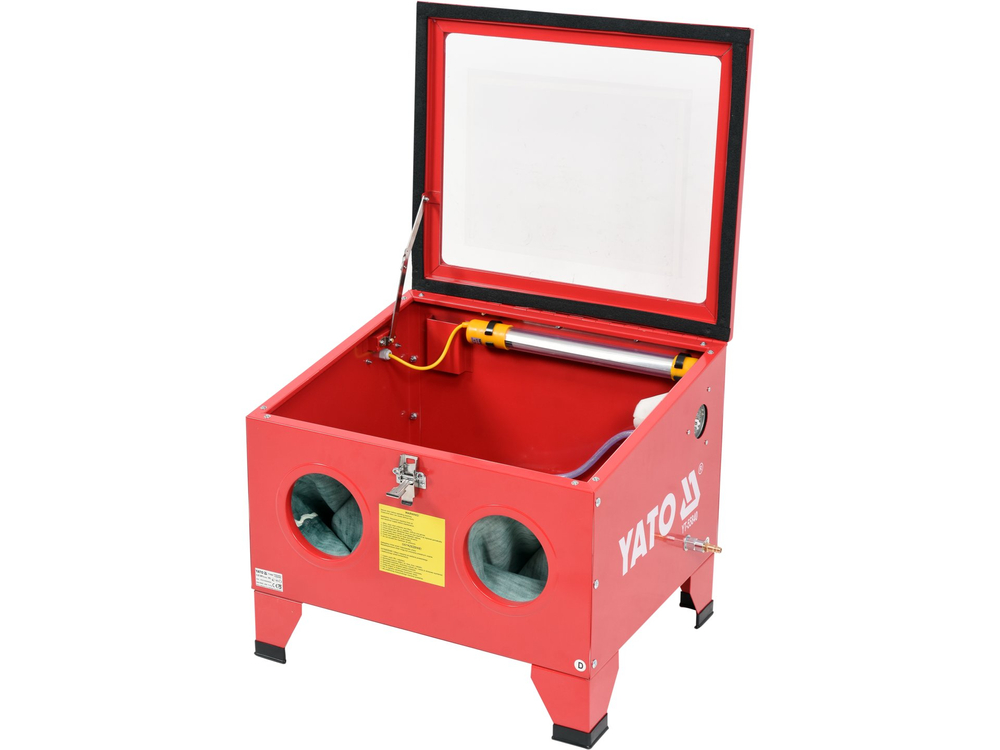

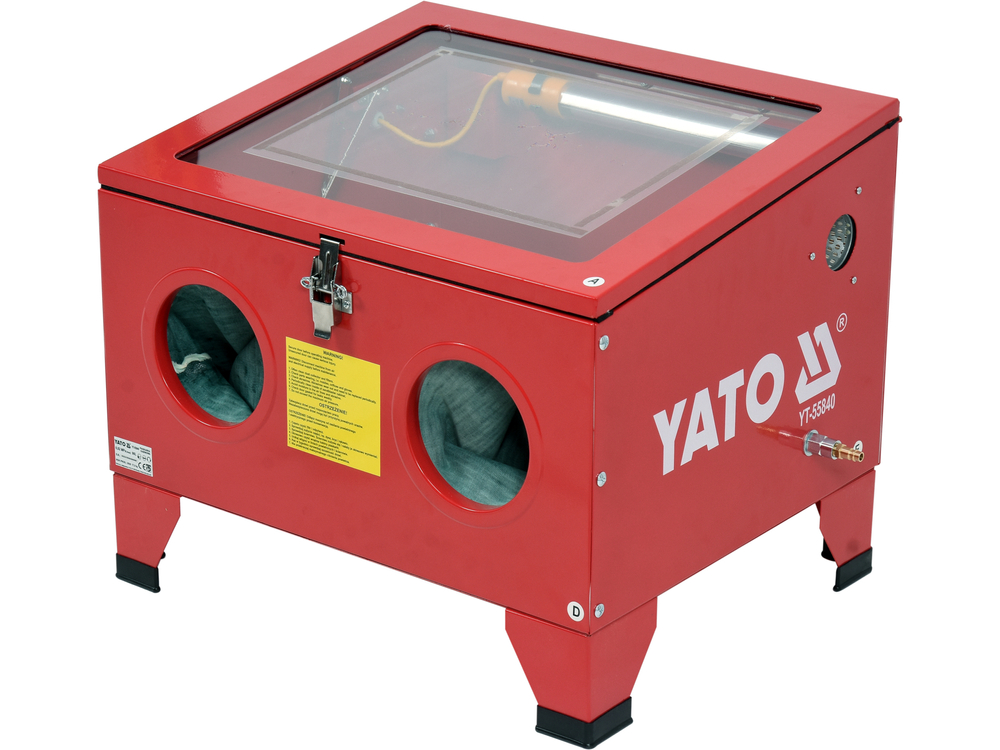

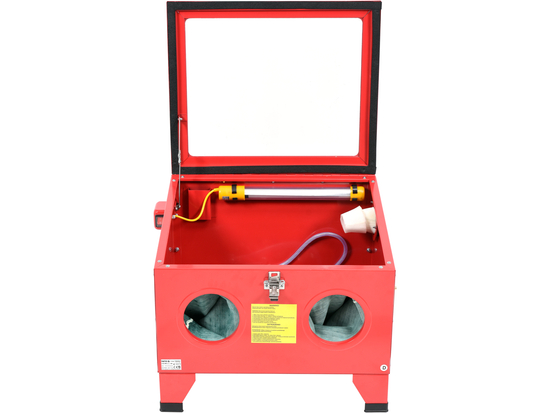

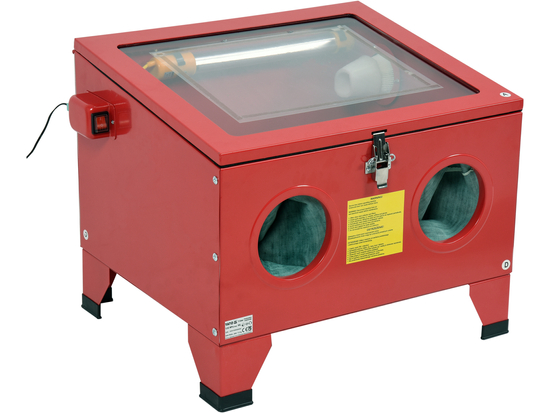

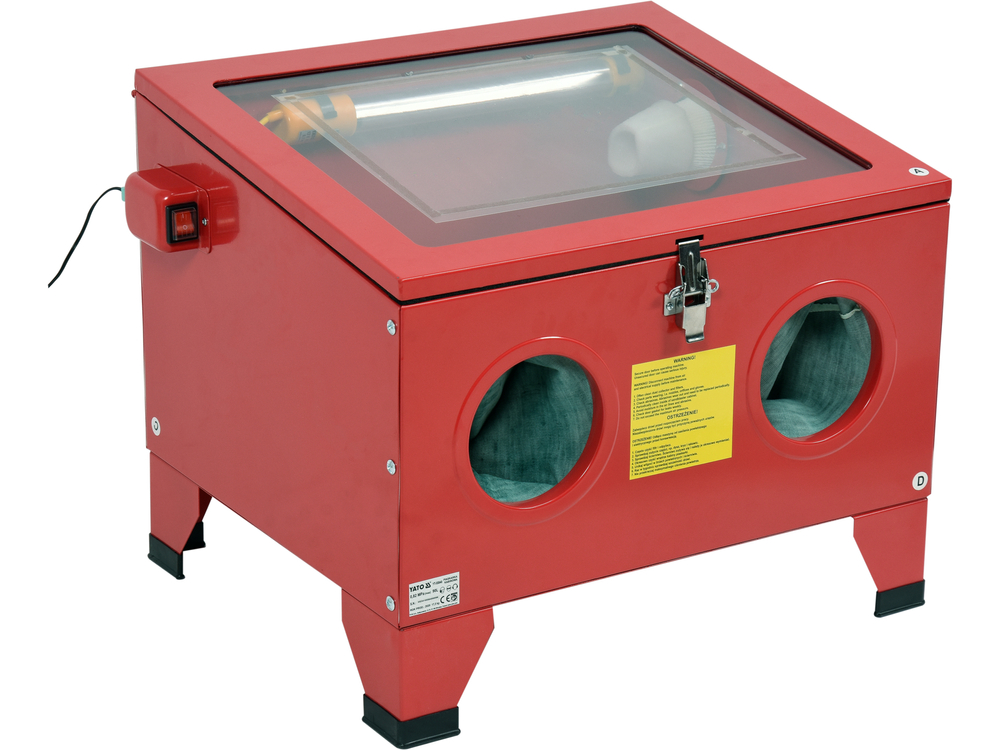

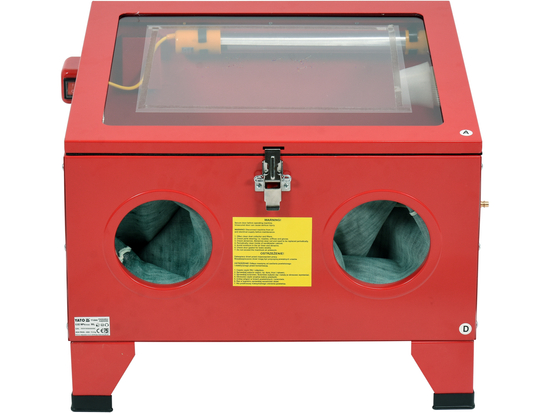

SANDBLASTING CABINET 90L
Brand
Symbol
YT-55840
Producer code
5906083058523
Series
Power
8 W
Working pressure
0.27-0.82 MPa
Max. pressure
0.82 MPa
Voltage
230 V a.c.
Frequency
50 Hz
Air flow required
424-707 l/min
Air connection diameter (PT)
standard
Among the abrasive volume
6.5 l
Capacity
90 l
External dimensions
585x485x494 mm
Dimensions of the working part
580x480x350 mm
The inner diameter of the air supply hose
3/8" (10.0 mm)
Material
blacha stalowa
Surface finish
sandblasted
Output voltage
12 V d.c.
Output
667 mA
Acoustic pressure
63.5 ± 3.0 dB(A)
Acoustic power
65.0 ± 3.0 dB(A)
Vibrations
< 2.5 m/s²
Weight
17.5 kg
Contents of the set
sandblast, sandblasting gun, abrasive sucking hose, air connectors with a connector, X4 nozzle (Ø4, Ø5, Ø6, Ø7 mm), lamp power supply, foil protecting windows x4, gloves, gloves, gloves, gloves
Contents of the CD set.
taśma PTFE
Pneumatic sandblaster cabin for fast and convenient cleaning of rust, paint and dirt by means of circulating closed circuit abrasive. Indispensable in automotive workshops and industrial plants
- Cabin volume: 90 l
- working pressure: 0.27-0.82 MPa
- air consumption: 424-707 l/min
- internal dimensions of the cabin: 580 x 480 x 350 mm
- equipment dimensions: 585 x 490 x 490 mm
- pistol for sandblasting with 4 interchangeable ceramic nozzles 4, 5, 6, 7 mm
- .large 485 x 390 mm window with replaceable protective film
- bright illumination with 12 V fluorescent lamp
- .drain hole for quick change of sandblasting material

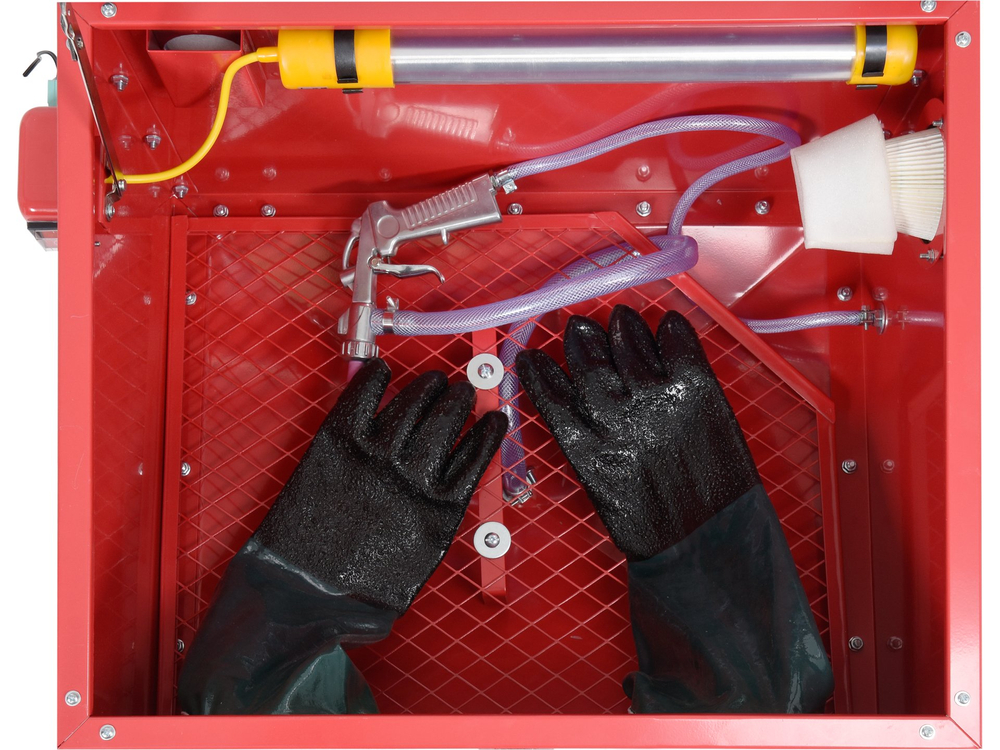

- rubber gloves integrated into the machine
- the machine's rubber gloves. li>stable truss for easy processing
- standard connection
- anti-skid, rubberized legs
Included:
- sandblasting gun
- abrasive suction hose

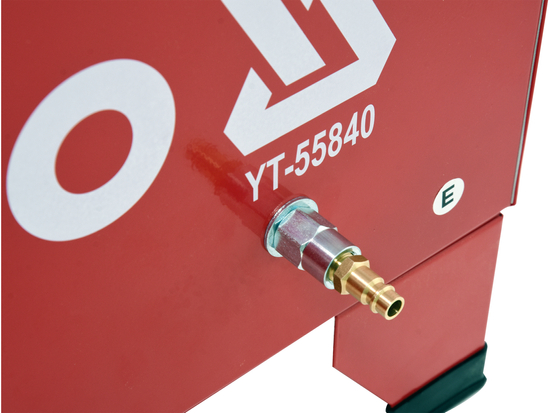

- air connection hose including spigot
- 4 nozzles .
- power supply for the lamp
- 4 interchangeable films for protecting the window
- gloves integrated with the cabin
- Teflon tape for sealing
