YT-09860
3 IN 1 AIR COMBO SET
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Max. working pressure
0.63 MPa
Required air flow
113 l/min
Rotations
180 (ratchet), 18000 (straight grinder), 15000 (angle grinder) min⁻¹
Max. torque
85 Nm
Air connection diameter (PT)
standard
Toolholder size
1/4" (6.3 mm)
1/2" (12.7 mm)
Toolholder type
Driver
Air supply hose inside diameter
3/8" (9.5 mm)
Max. accessories diameter
50 mm
Acoustic pressure
88.0 ± 3.0 dB(A)
Acoustic power
99.0 ± 3.0 dB(A)
Vibrations
3.95 ± 1.5 m/s²
Weight
0.63 (drive housing), 0.74 (ratchet attachment), 0.15 (straight grinder attachment), 0.27 (angle grinder attachment) kg
Pcs
9
Set includes

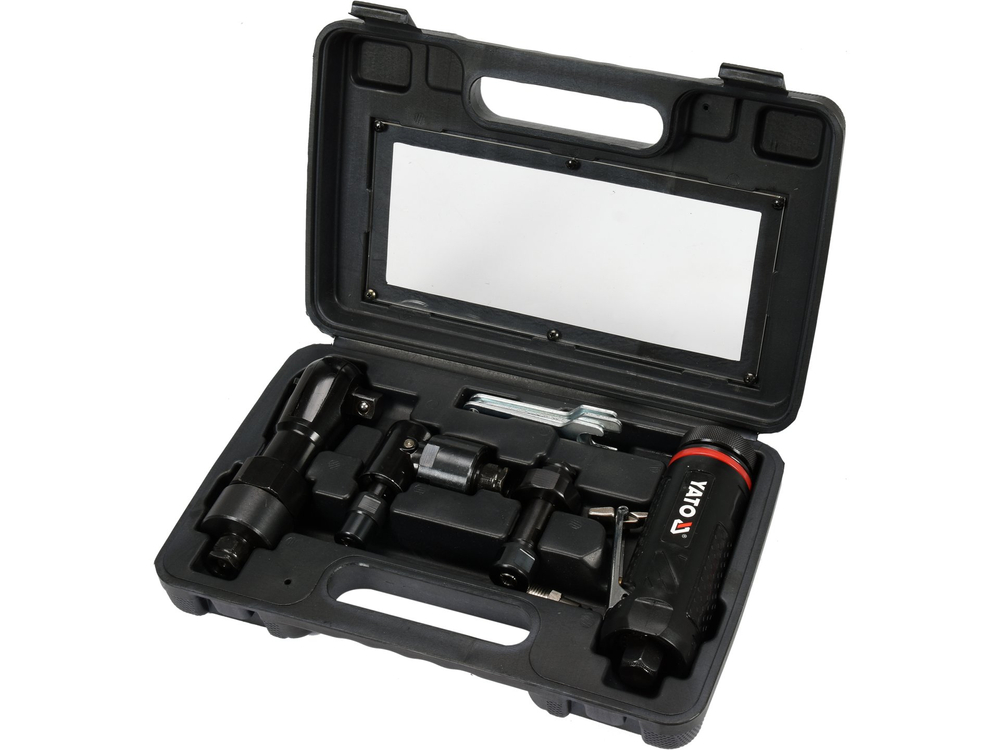

drive housing, attachment x3 (pneumatic ratchet, pneumatic straight grinder, pneumatic angle grinder), hose connector, tool holder key x4
Symbol
YT-09860

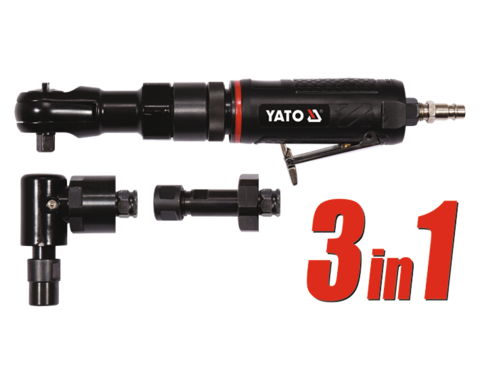

Universal 3-in-1 air tool with interchangeable ends combines the functions of a 1/2" ratchet, straight grinder and angle grinder with a 6 mm shank.
- max ratchet torque: 85 Nm
- air consumption: 113 l/min
- fast and easy replacement of ends
- drive: 1/2"
- standard connection
Max. speed:
- ratchet: 180 rpm
- straight grinder: 18,000 rpm
- angle grinder: 15,000 rpm
