YT-30410

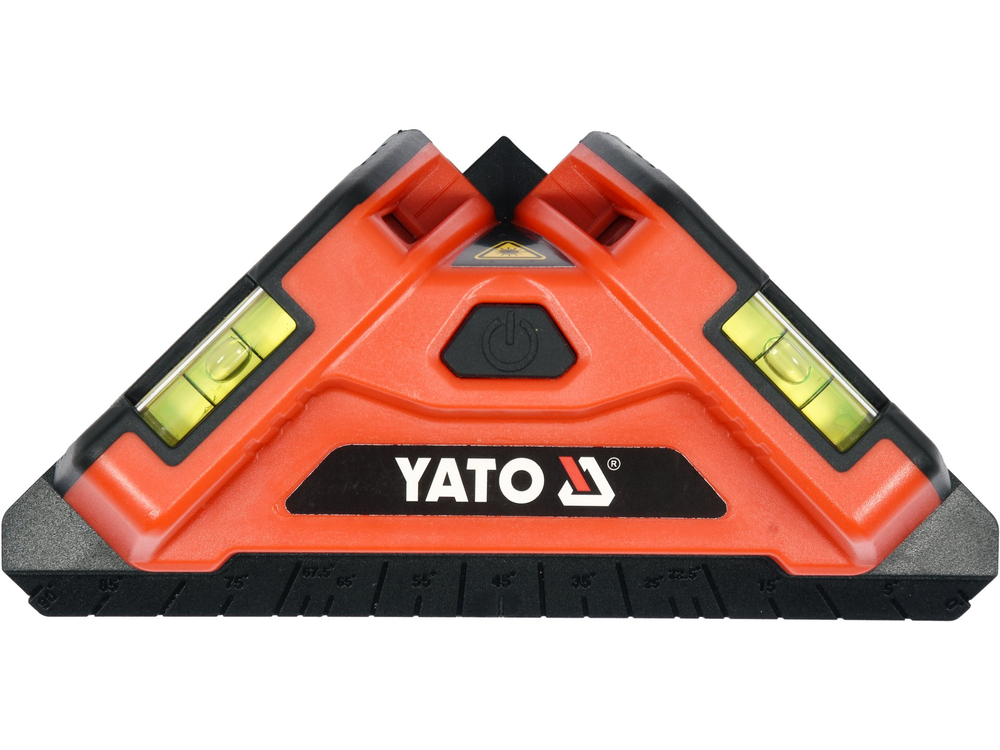

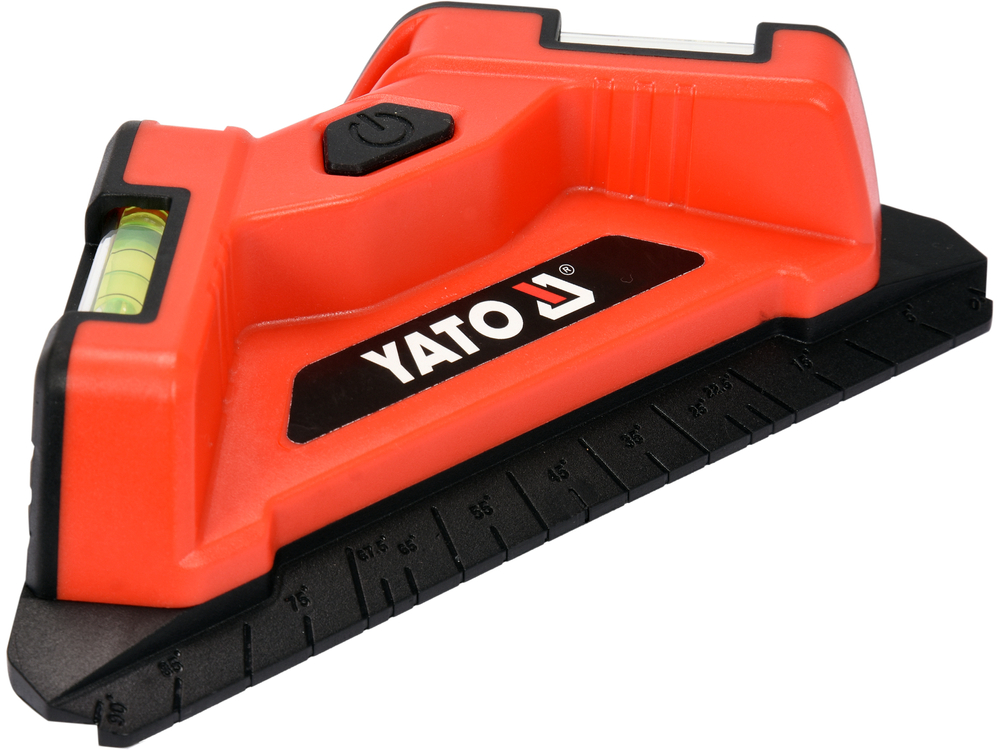

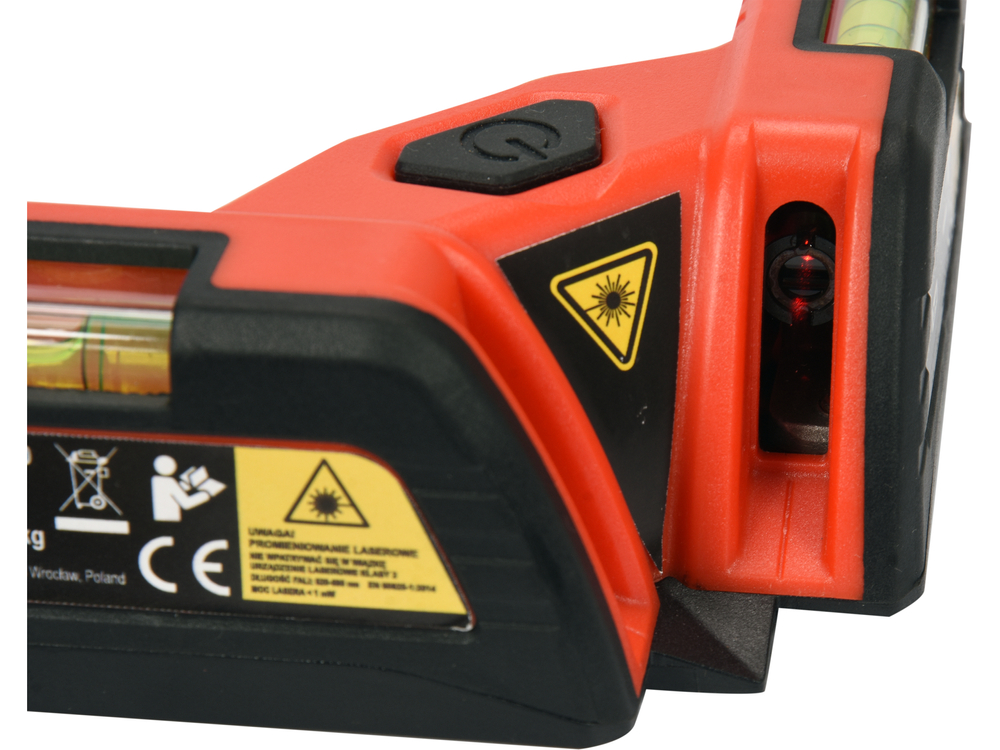

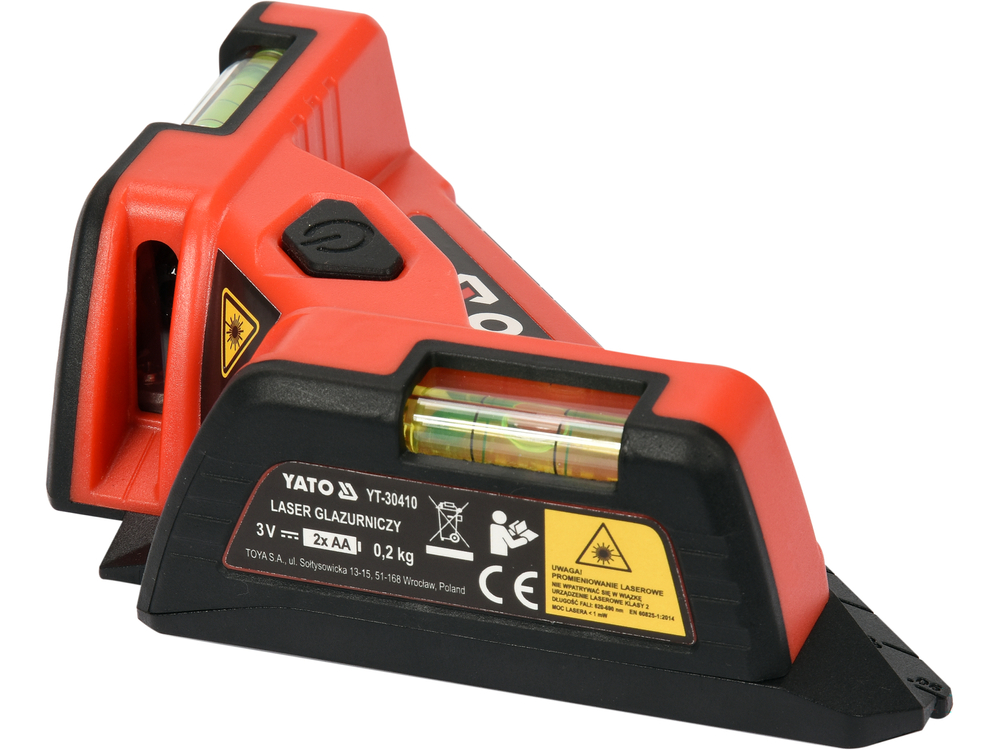

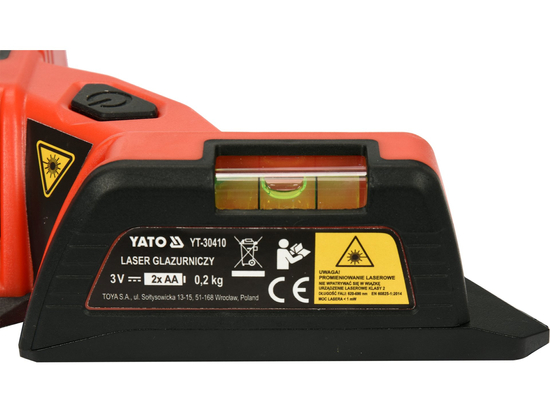

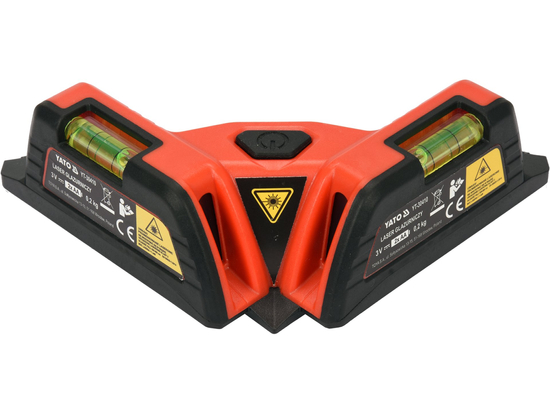

TILE SQUARE LASER
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Working range
10 m
Angle measurement range
90 ˚
Laser class
2
Laser power
˂ 1 mW
Laser wave length
620-690 nm
Laser accuracy
± 1 mm / 1 m
Laser indicator type
linear
Laser pointer colour
red
Power supply
battery
Type of battery
2x1.5V; AA
Max. working time
10 h
Material
ABS
Vials
2
Working temperature range
0~40 ˚C
Storage temperature
-10 ~ +60 ˚C
Weight
0.2 kg
Symbol
YT-30410
The line laser is designed for tiling, renovation and construction, decorating, etc.

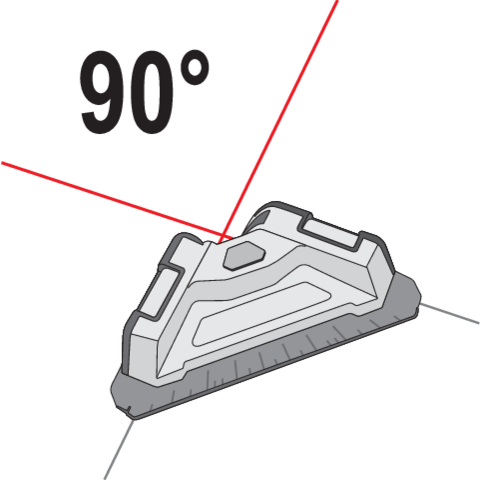

- emits two red, highly visible lines, precisely determining the angle of 90°
- body made of damage-resistant ABS plastic .
- base with sheet metal cover and strong magnets
- two vials for quick leveling of the device
- working range: 10 m
- accuracy: +/-1 mm/1 m
- laser wavelength: 620 - 690 nm
- maximum operating time: 10 h
- power supply: 3 V (2 AA batteries)
Usage warnings:
Attention! Laser radiation. Do not stare into the beam.Class 2 laser device.
