YT-85300
DEEP WELL WATER PUMP 370W
Brand
Symbol
YT-85300
Producer code
5906083051333
Series
Power
370 W
Max. capacity
5400 l/h
Voltage
230 V a.c.
Frequency
50 Hz
Water connection diameter
G1-1/4
Max. pumping height
35 m
Depth of immersion
80 m
Min. Diameter of the well
100 mm
Max. Diameter of mechanical pollutants
1.5 mm
Water temperature
35 ˚C
Float switch
No
Thermal switch
Yes
Switching level
10 m
Exclusion level
2 m
Housing material
stainless steel
Dimensions (diameter x height)
78x955 mm
Length of cable
20 m
Electrical insulation class
I
Ingress protection
IP58
Weight
10.4 kg
Contents of the set

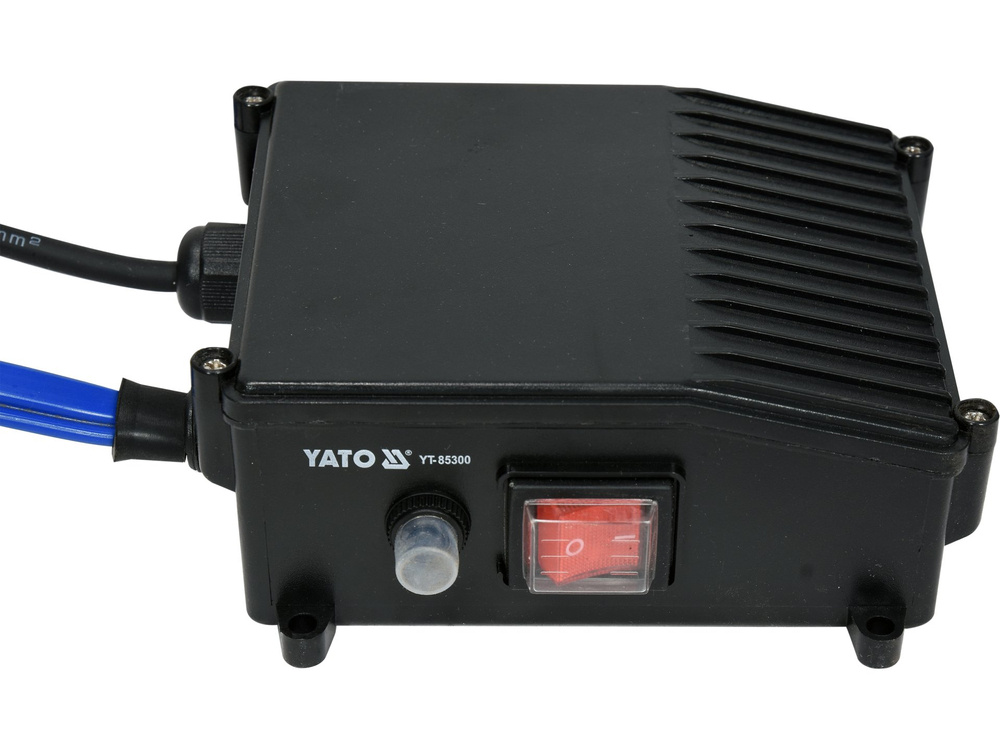

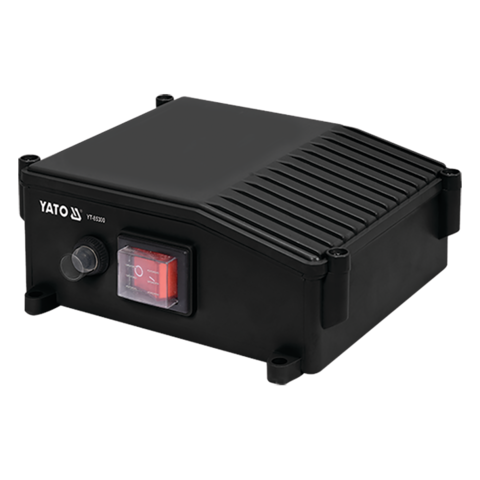

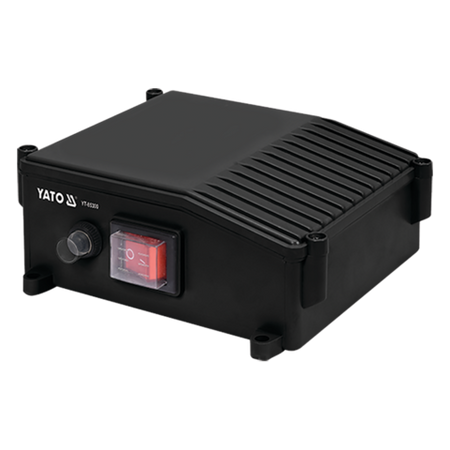

deep pump, switch can

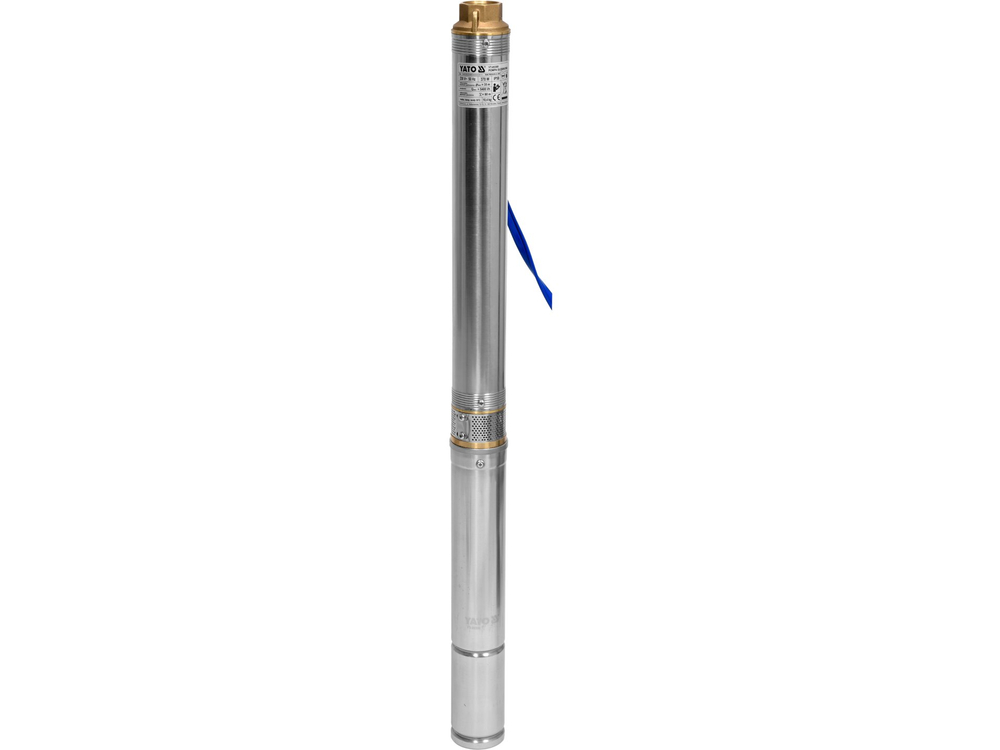

Deep well pump 370W Designed for pumping out clean water from deep wells.
- solid housing made of durable and resistant to corrosion and biological conditions stainless steel (inox)
- copper winding
- rotor pump
- max. immersion depth: 80 m
- max. water temp: 35°C
- maxdiameter of dirt: 1.5 mm
- cable length: 20 m
- water connection: 5/4ʺ
- protection rating: IP58
