YT-85301
DEEP WELL WATER PUMP 550W
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
550 W
Max. capacity
6000 l/h
Voltage
230 V a.c.
Frequency
50 Hz
Water outlet diameter
G1-1/4
Max. head
50 m
Max. submersion depth
80 m
Min. well diameter
100 mm
Max. foreign matter diameter
1.5 mm
Max. water temperature
35 ˚C
Float switch
no
Thermal switch
yes
Power on level
10 m
Power off level
2 m
Casing material
stainless steel
Dimensions (diameter x height)
78x1154 mm
Cable length
20 m
Electric insulation class
I
Protection grade
IP58
Weight
12.4 kg

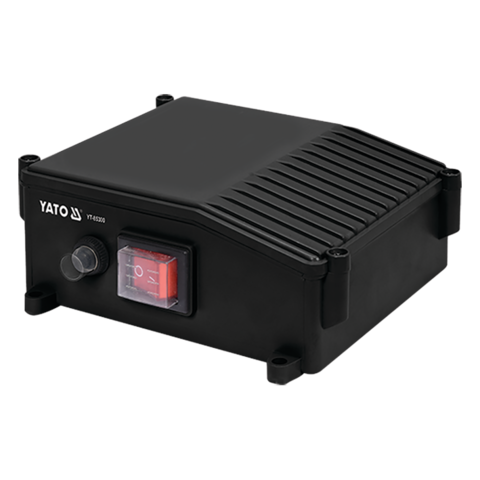

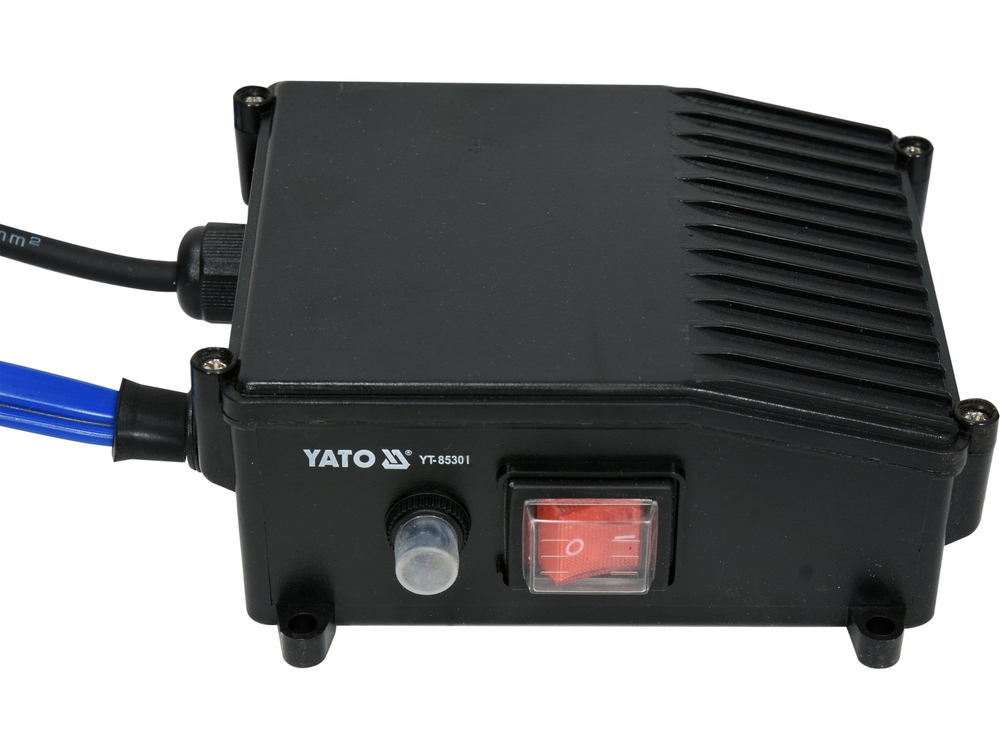

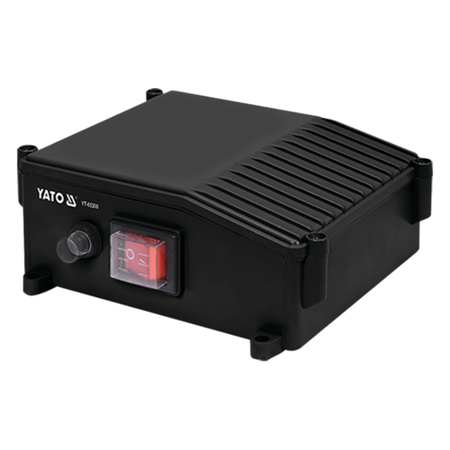

Set includes
submersible pump, switch box
Symbol
YT-85301

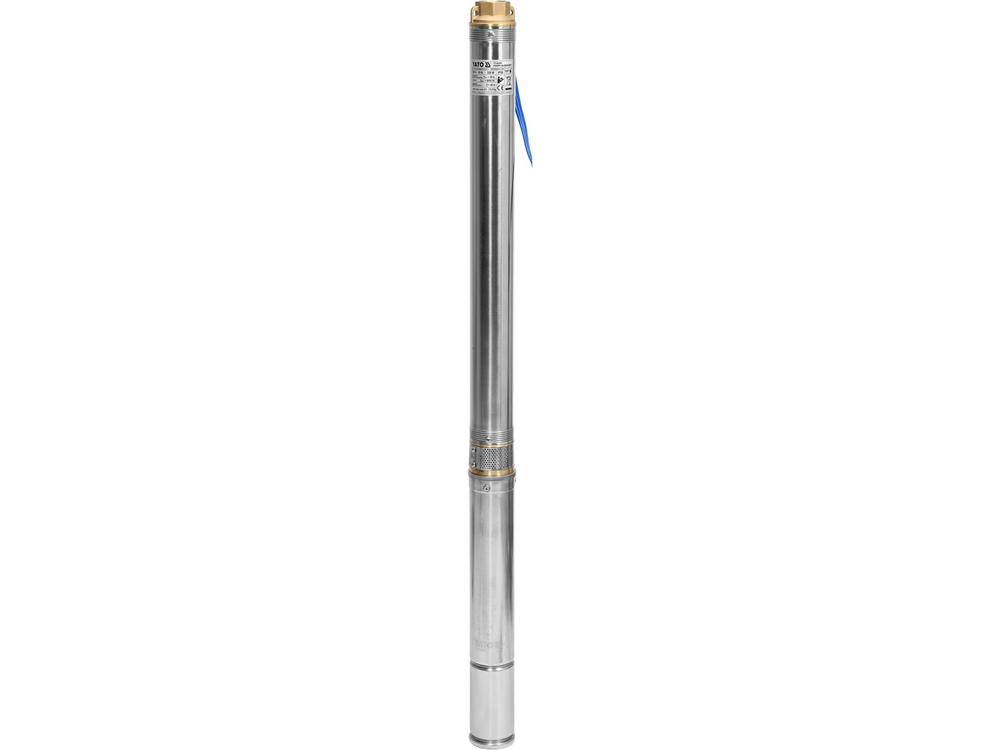

Designed for pumping out clean water from deep wells.
- solid housing made of durable and resistant to corrosion and biological conditions stainless steel (inox)
- copper winding
- rotor pump
- max. immersion depth: 80 m
- max. water temp: 35°C
- max. diameter of dirt: 1.5 mm
- cable length: 20 m
- water connection: 5/4ʺ
- protection rating: IP58
- Rating power [W]: 550
- Max capacity [l/h]: 6000
- Max. discharge height [m]: 50
- Dimensional dimensions (diameter x H.) [mm]: 78 x 1154
- Weight [kg]: 12.4
