18180

ADJUSTABLE PUNCH LOCATOR

+ Add to compare Add to shopping list

Brand

Vorel

Entity responsible for this product in the EU

TOYA S.A.More

Address: Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl

Series

GRD

Length

200 (horizontal arm), 250 (vertical bar) mm

Material

ABS

Metric scale

yes

Inch scale

yes

Application

for determining drilling points

Symbol

18180

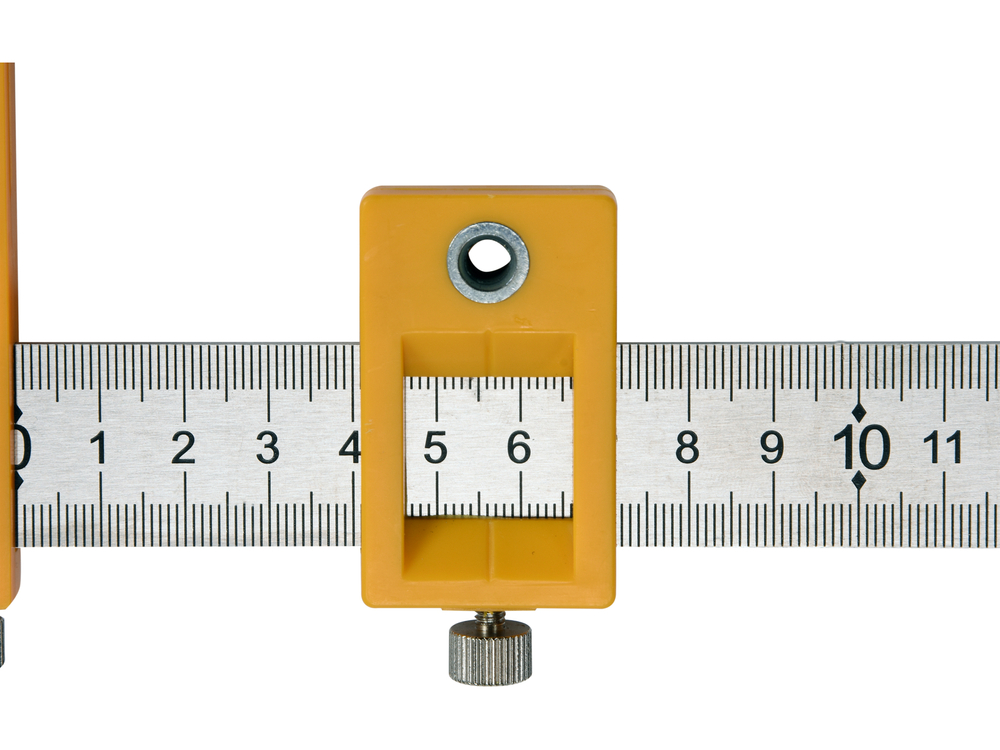

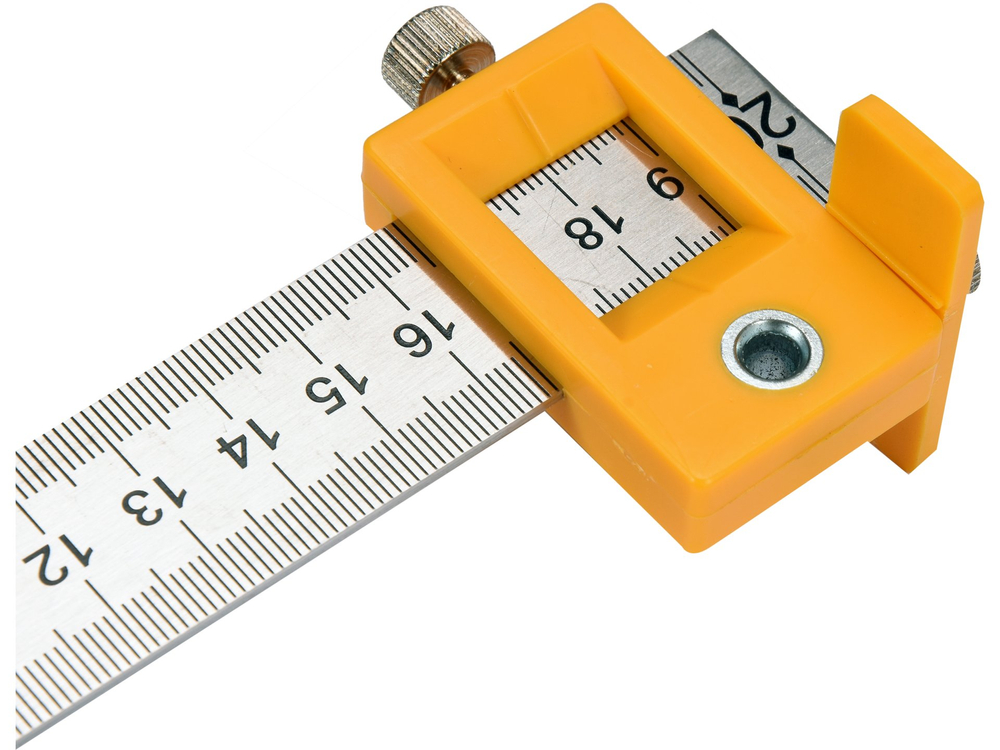

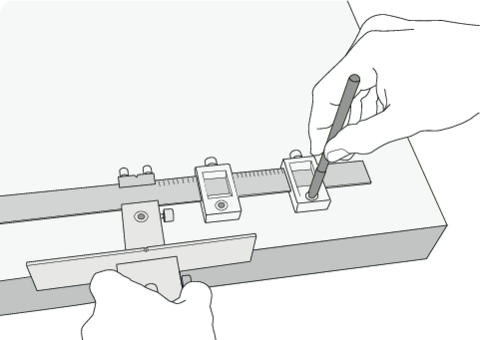

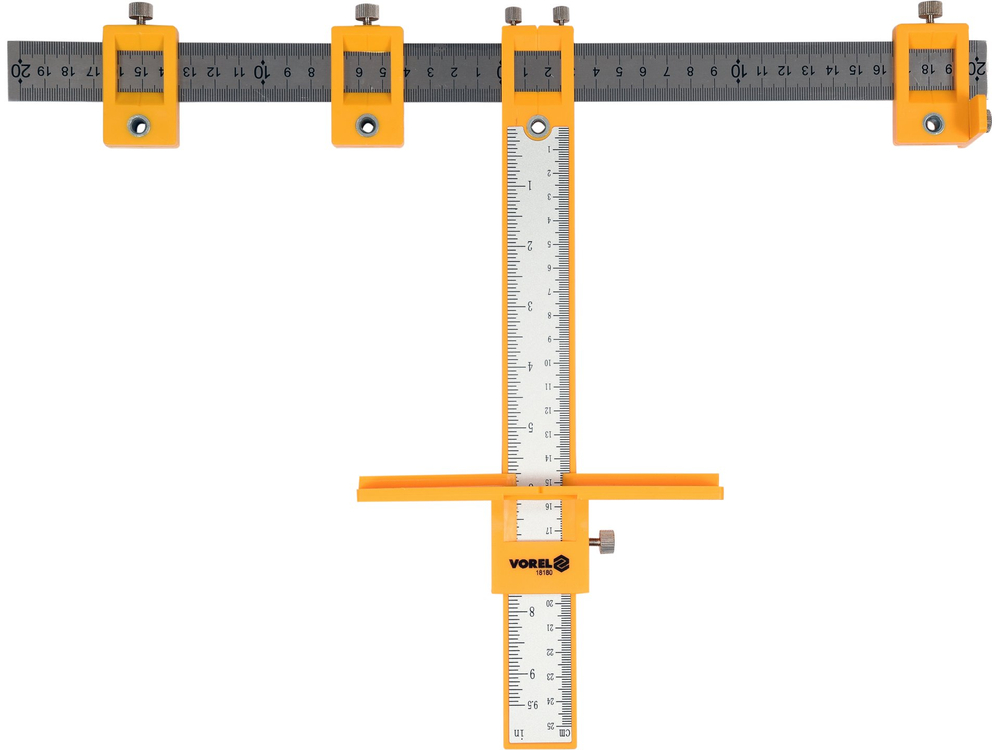

Template for determining drilling points. Horizontal frame is made of steel sheet with permanently applied with a millimeter and inch scale, length 200 +200 mm. Three movable, mounted markers can be blocked on the strip. A 250 mm vertical strip and a parallel limiter were made of ABS plastic, a strip equipped with a metal insert with a millimeter and inch scale. The device is packed in a protective, textile cover. The device is intended for precise designation of drilling points, it gives the possibility of quick transfer of points without having to re -dimension.
