YT-82002

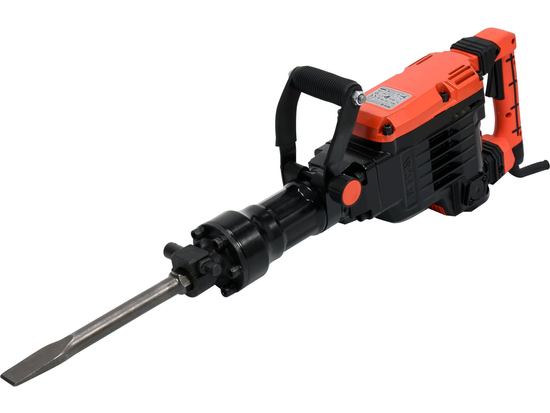

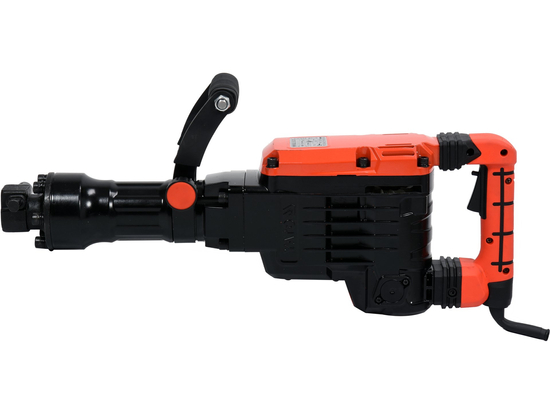

DEMOLITION HAMMER 65J 1600W
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Functions
shoeing
Power
1600 W
Hammering energy
70 J
Impact frequency
1900 min⁻¹
Voltage
230 V a.c.
Frequency
50 Hz
Toolholder type
hexagonal
Toolholder size
30 mm
Stroke
yes, electropneumatic
Oil cooling
yes
Switch lock for continuous operation
yes
Electric insulation class
II
Protection grade
IPX0
Acoustic pressure
91.3 ± 3.0 dB(A)
Acoustic power
100.4 ± 2.42 dB(A)
Vibrations
14.59 ± 1.5 m/s²
Weight
14.8 kg
Set includes

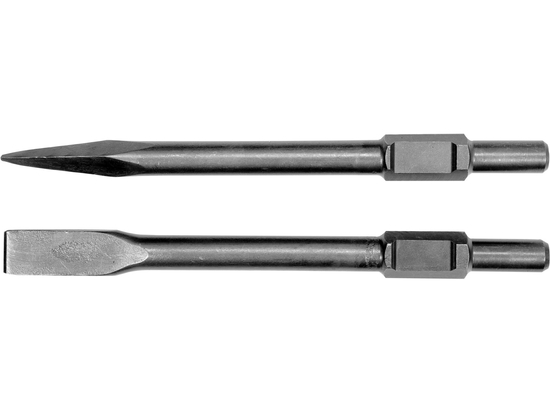

demolition hammer, chisel, punch
Application
concrete, reinforced concrete, asphalt, natural and artificial stone, marble
Symbol
YT-82002
The most powerful (70 J) oil-cooled (5W30) demolition hammer in its class. Designed for demolition of reinforced concrete, such as footings, slabs reinforced with A-III and A-0 steel, scraping ceilings or compacting soil, with the appropriate tip (YT-47385 to be purchased separately).
- passes the test when forging horizontally, thanks to the short piston stroke and high impact frequency (not causing the effect of pushing the operator with the hammer away from the wall when held horizontally, instead of forging, which is characteristic of many hammer designs on the market)
- effective oil cooling protects the machine from overheating during heavy work and, thanks to its lower viscosity than grease, causes less friction resistance in the mechanism, significantly extending the life of the machine
- anti-vibration handle protects the hammer operator from the adverse effects of vibration and reduces fatigue caused by holding the hammer in operation
- large diameter of the piston of the electropneumatic mechanism guarantees high energy of a single blow (as much as 70J), which allows to effectively hammer a significant volume of concrete, per unit of working time
Hex chuck (diameter 30 mm) works with self-sharpening chisels for reinforced concrete, shovels for digging in hard soil, rammer for soil, and classic chisels from picks to wide chisels (35, 75, 125 mm). Yato index range from YT-47370 to YT-47385).
