YT-85349
IRON POMP
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
400 W
Max. capacity
12000 l/h
Voltage
230 V a.c.
Frequency
50 Hz
Water outlet diameter
2" (50 mm)
Max. head
7.5 m
Max. submersion depth
5 m
Min. shaft dimensions
40x40x50 cm
Max. foreign matter diameter
30 mm
Max. water temperature
35 ˚C

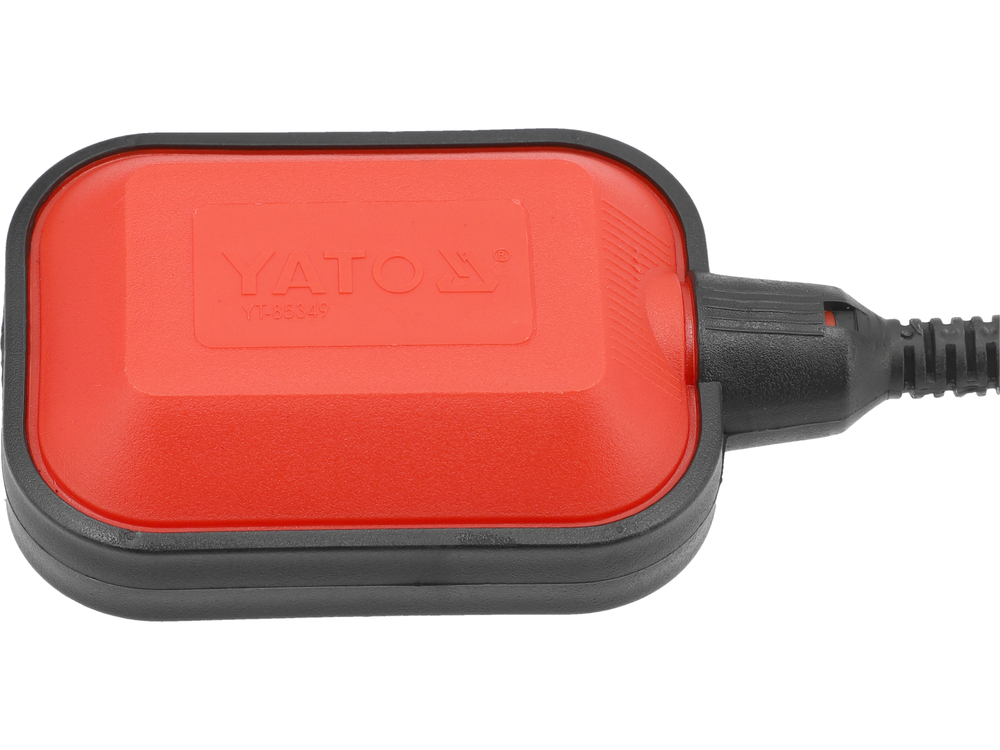

Float switch
yes
Thermal switch
no
Power on level
ok. -0.5 m
Power off level
ok. -0.07 m
Casing material
cast iron
Dimensions (diameter x height)
160x340 mm
Wire length
10 m
Electric insulation class
I
Protection grade
IP68
Weight
14 kg
Application
pumping rainwater, infiltration water and sewage from households and backyards, emergency drainage of flooded areas,
Application contd
pouring clean or moderately contaminated liquids, but without stones or similar large objects
Symbol
YT-85349

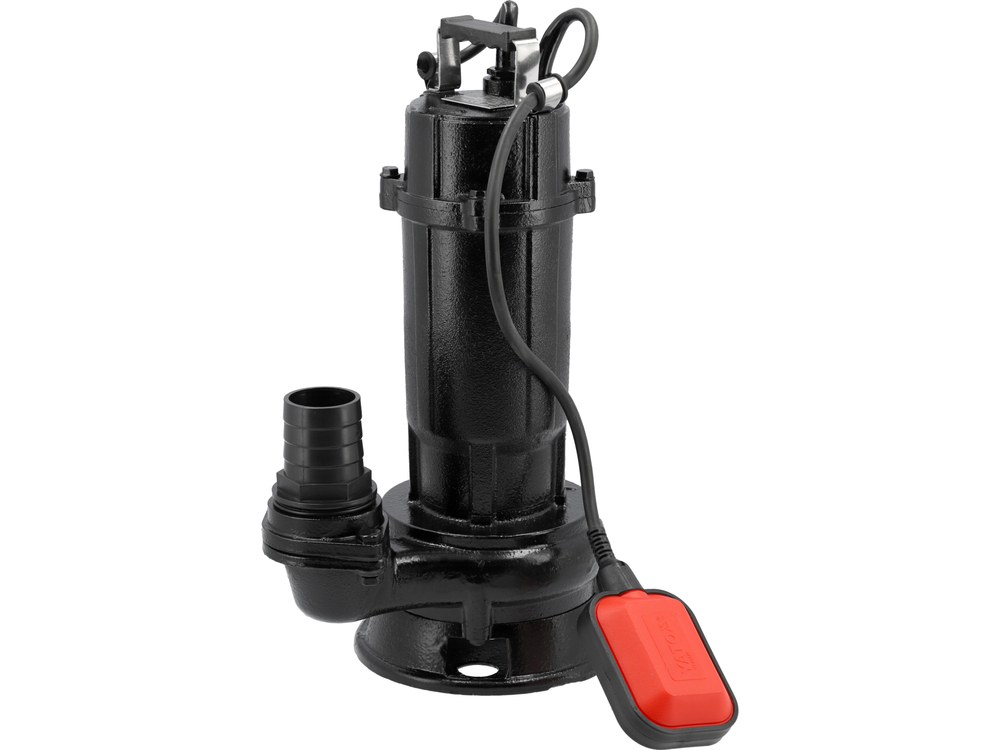

The Yato pump can be used for pumping wastewaterófrom household septic tanks and water from flooded rooms. The pump can also be rós used for incidental waterproofing excavation trenches. It is a robust pump thatós made of durable materialsóensuring trouble-free operation.
Pump is perfect for:
- pumping rainwater, infiltration water and wastewaterós from households and households
- .emergency dewatering of submerged areasów
- .overflow of clean or moderately contaminated liquids, but without stones or similar large objectsów
Parameters:
- power 0.4 kW
- cast iron housing
- copper coil
- outlet diameter 2’’
- max flow rate 200l/min
- discharge height 7.5m
- transportód 10m
