YT-36711
GAS BURNER TORCH HEAD WITH PIEZO
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
1.7 kW
Gas type
butane from an external cylinder
Gas tank type
disposable, threaded, self-sealing, under direct pressure, type EN417
Gas usage
123 g/h
Piezo ignition
yes

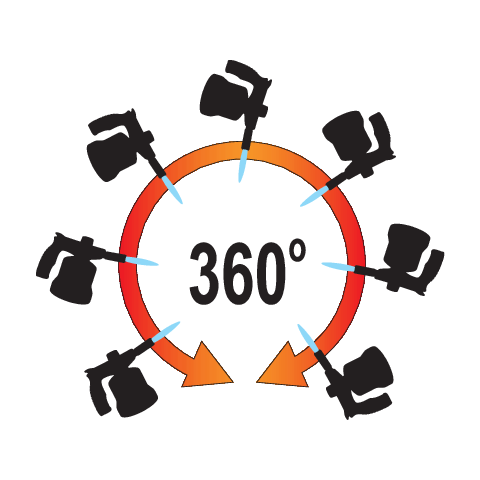

Operation angle
360 ˚
Head offset
360 ˚
Flame adjustment
yes
Weight with empty tank
0.3 kg
Application
jewelry, handicraft, modeling, gastronomy, burning small metal or wooden surfaces, lighting fireplaces, grills and stoves, bending and warm forming,
Application contd
heat welding and gluing, unscrewing stuck screws, reheating and thawing, shrinking of heat-shrinkable materials
Symbol
YT-36711

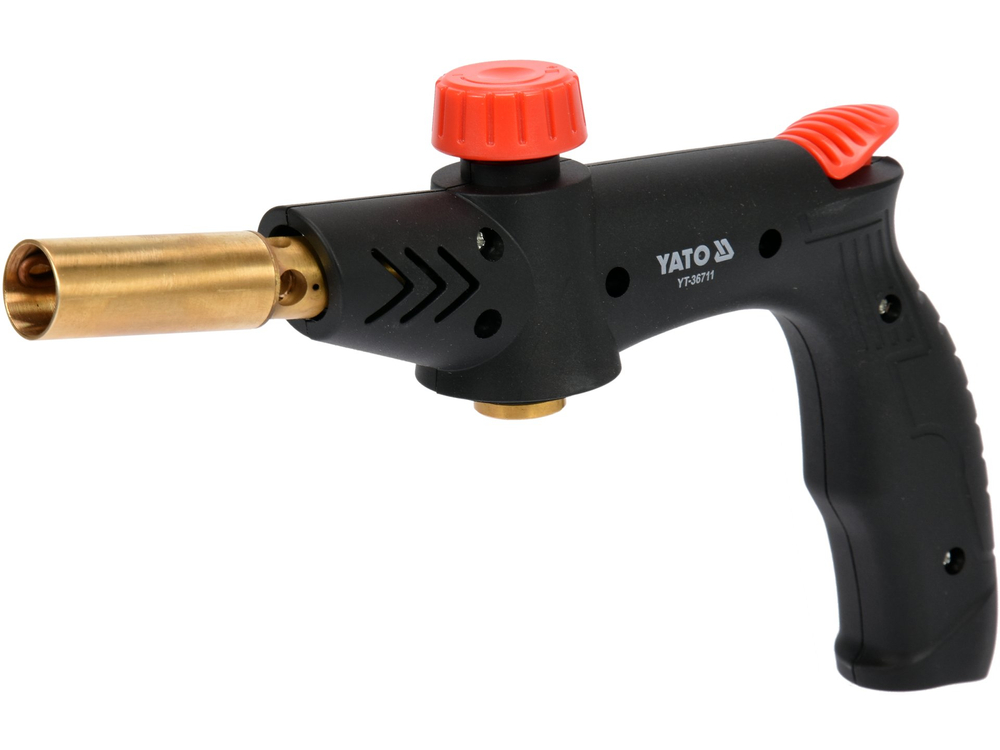

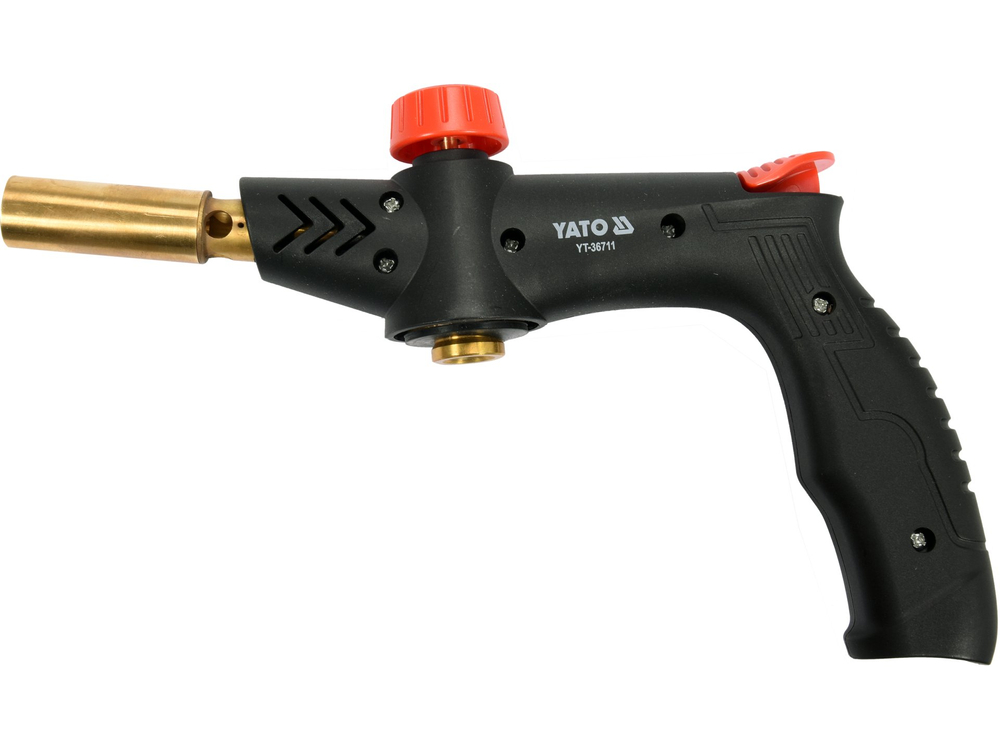

Gas burner designed for soldering, heating and drying. Thanks to the power supply by means of gas containers (cartridges), it is possible to work in places without energy sources.

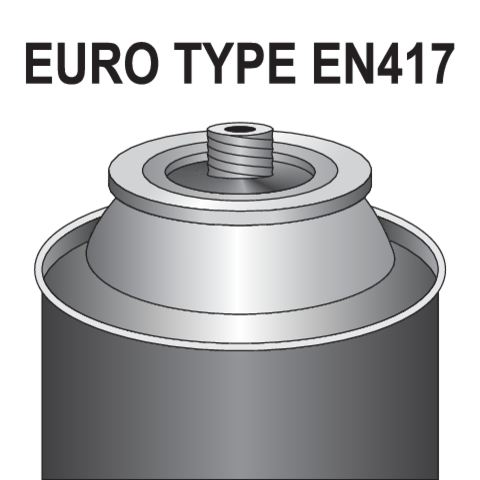

The burner can be used with disposable containers, equipped with a self-sealing threaded connector, according to EN 417.
Additional information:
- the torch screws onto a typical gas cylinder
- convenient to manipulate pistol grip
- effective piezo igniter .
- flow adjustment knob placed vertically above the cylinder
- burner made of brass, turned - fi 19 mm
Usage warnings:
Use only with single-use containers containing technical butane gas, equipped with a self-sealing joint, compliant with EN 417.Use only in well-ventilated rooms.
Please read the instructions before using this device.
Connect or change containers in a flameless atmosphere, away from unauthorized persons.
Wear safety glasses when using the set.
Turning off the burner: Turn the regulator knob as far as it will go in the direction marked "OFF". The flame will go out automatically.
Be careful because the metal parts of the burner became hot during operation. Leave to cool.
