YT-36720
GAS BURNER / SOLDERING LAMP

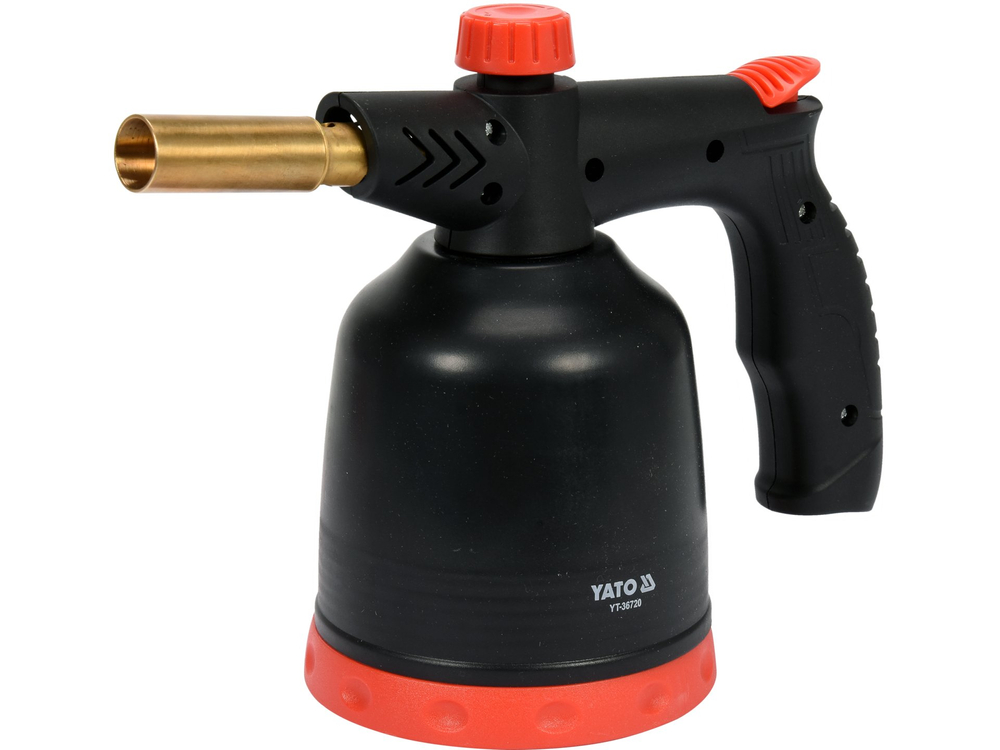

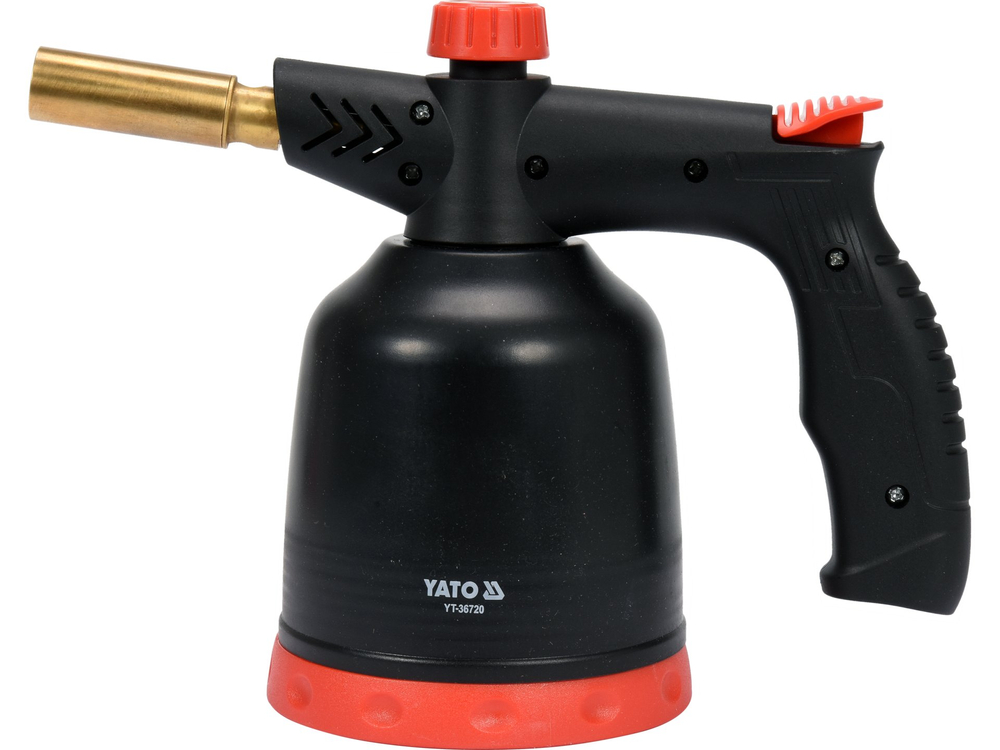

- Gas soldering lamp designed for soldering, heating and drying. Thanks to the power supply by means of gas containers (cartridges), it is possible to work in places without energy sources. The burner can be used with 190 g disposable containers,
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
1.7 kW
Tank capacity
190 g
Gas type
butane from an external cylinder
Gas tank type
under direct pressure, type EN417
Gas usage
123 g/h
Casing material
PVC
Piezo ignition
yes

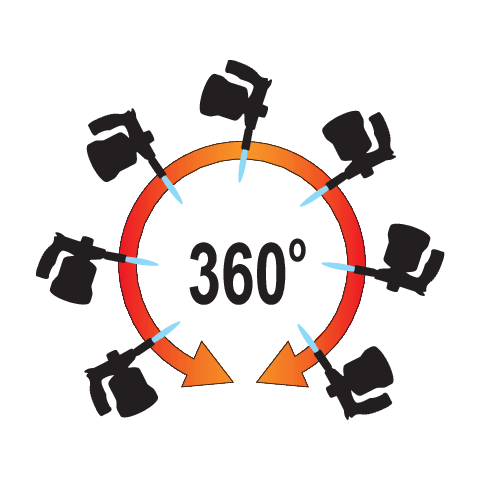

Operation angle
360 ˚
Head offset
360 ˚
Flame adjustment
yes
Weight with empty tank
0.7 kg
Application
soft soldering, tinning, heating, loosening the screws, paint tanning, unfreezing, annealing, shaping or bending pipes, lighting the grill, gastronomy
Symbol
YT-36720





Gas soldering lamp designed for soldering, heating and drying. Thanks to the power supply by means of gas containers (cartridges), it is possible to work in places without energy sources.

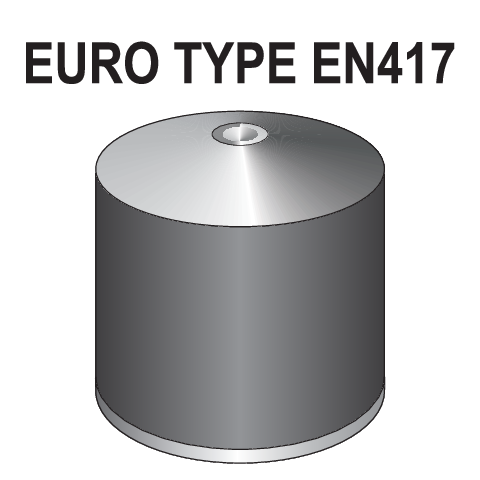

The burner can be used with 190 g disposable containers, equipped with a punctured membrane, complying with EN 417.
Additional information:
- the burner housing is made of damage-resistant plastic - protects against burns .
- convenient to operate pistol grip with flow control knob located vertically above the cylinder
- brass burner with a diameter of 19 mm with a brass cartridge
- effective piezo igniter
- the burner is made of brass.
Usage warnings:
Use only with disposable containers containing technical butane gas, equipped with a self-sealing connector, complying with EN 417.
Use only in well-ventilated areas.
Read the instructions before using this device.
Make connections or changes to containers in a flameless atmosphere, away from bystanders.
Use safety glasses when using the kit.
Turning off the burner: Turn the control knob all the way in the direction marked "OFF". The flame will go out spontaneously.
Be careful, because the metal parts of the burner have been heated during operation. Leave to cool down.
