YT-07195
PNEUMATIC OILING MACHINE 20L
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Max. pressure
0.3 MPa
Recommended working pressure
0.1-0.3 MPa
Required air flow
150 l/min
Tank capacity
20 l
Hose length
2.1 m
Air connection diameter (PT)
standard
Wheels
yes
Wheel quantity
2
Max. oil temperature
35 ˚C
Acoustic pressure
101.2 ± 3.0 dB(A)
Acoustic power
119.8 ± 3.0 dB(A)
Weight
7 kg
Symbol
YT-07195
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__306555__Sklep_pikto/0%2C3_MPa_max.png")
![](https://pim.toya.pl/piktogramy/L_ml/image-thumb__51400__Sklep_pikto/20_L.png")
![](https://pim.toya.pl/piktogramy/HOSE/image-thumb__61083__Sklep_pikto/HOSE_2%2C1_m.png")
![](https://pim.toya.pl/piktogramy/BRAKE_WHEEL/image-thumb__66044__Sklep_pikto/2x_WHEEL.png")
![](https://pim.toya.pl/piktogramy/PICTURES_DESCRIPTION/image-thumb__60328__Sklep_pikto/COUPLE_01_STANDARD.png")

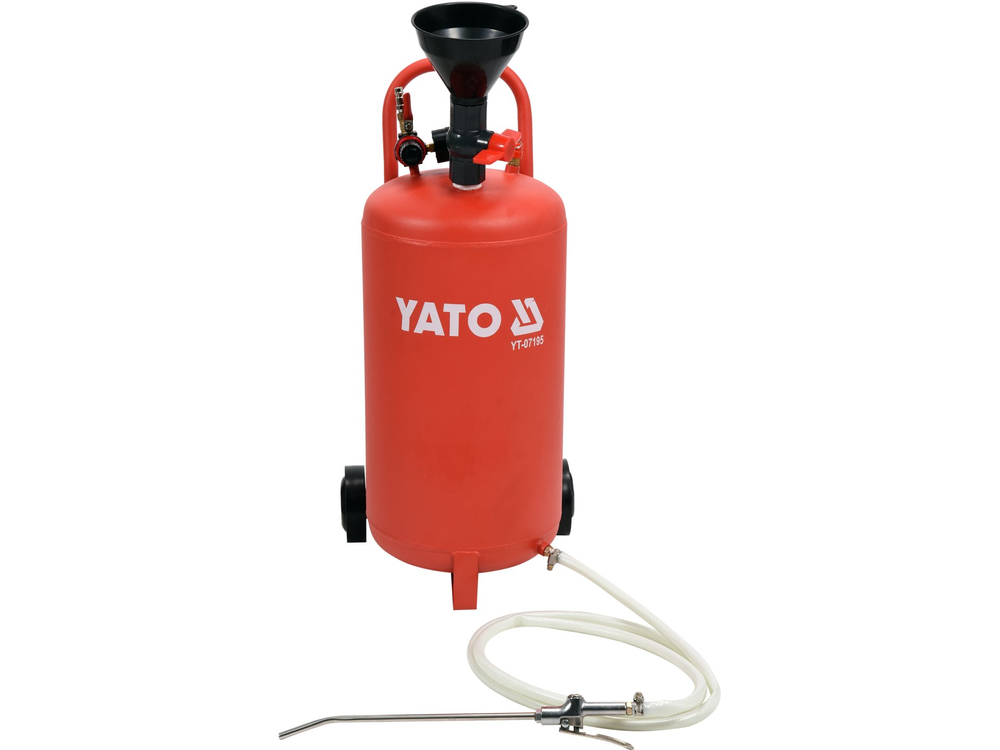

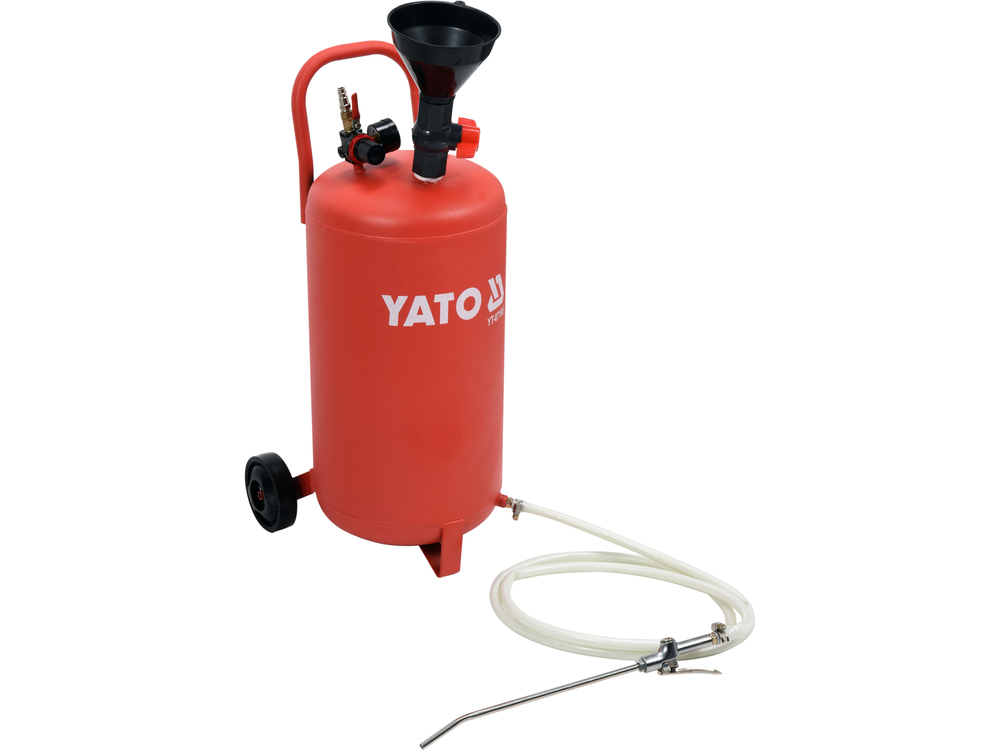

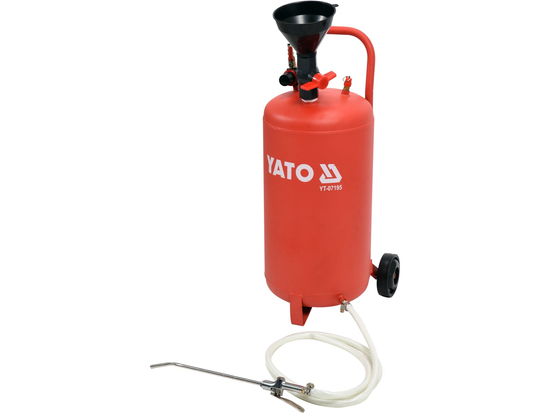

Quick and safe oil filling
Ensure maximum efficiency and safety with YT-07195, a professional pneumatic oil filler. Ideal for quick machine and component servicing.
Reliable lubrication of components
- Fast, efficient, and safe oil filling for machines or their components
- Enables easy work even in hard-to-reach areas thanks to the flexible hose with lance
- Built-in wheels and handle ensure easy device movement, even when full of oil
- Large inlet with funnel guarantees quick and trouble-free tank filling with oil
- Optimized for ergonomics and time savings
- Long-lasting and reliable operation due to solid construction
- Increases the efficiency of service and maintenance operations
Quick refilling
Mobile design
Flexible hose

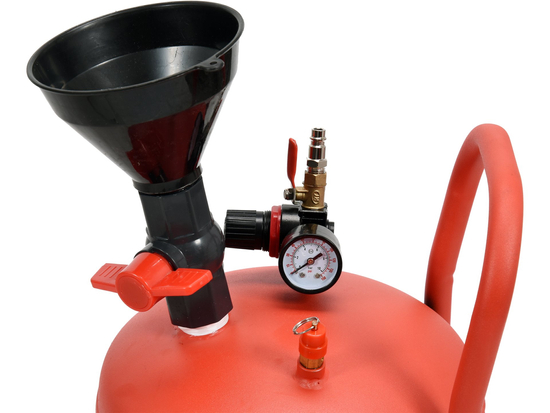

Large funnel
Safe work
Technical data and specification
- Tank capacity: 20 liters
- Maximum pressure: 0.3 MPa
- Recommended operating pressure: 0.1 – 0.3 MPa
- Air flow required: 150 l/min
- Hose length: 2.1 meters
- Device weight: 7 kg
- Equipped with 2 wheels for easy transport
- Maximum oil temperature: 35°C
