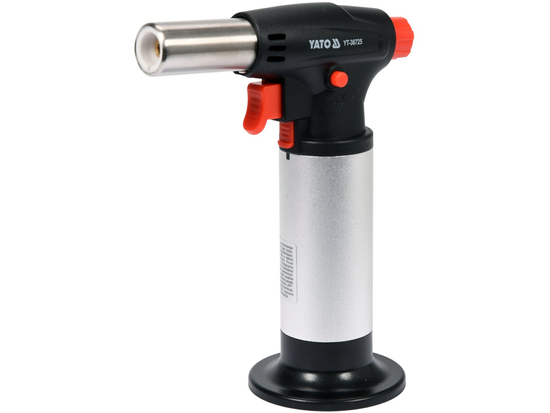

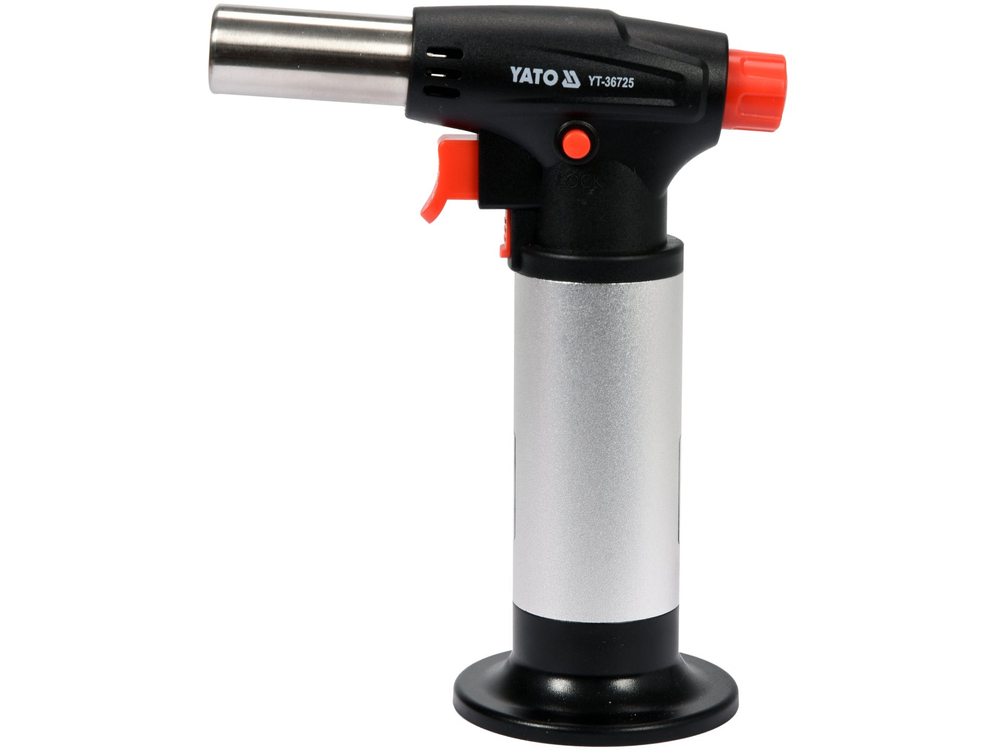

The gas burner is designed for soldering, heating and drying. Thanks to being powered from the built-in tank with a mixture of propane and butane gases, it is possible to work in places where energy sources are not available.

Small size and low weight allow convenient and safe operation.

Powered by a propane / butane gas mixture through the lighter valve.

Additional information:

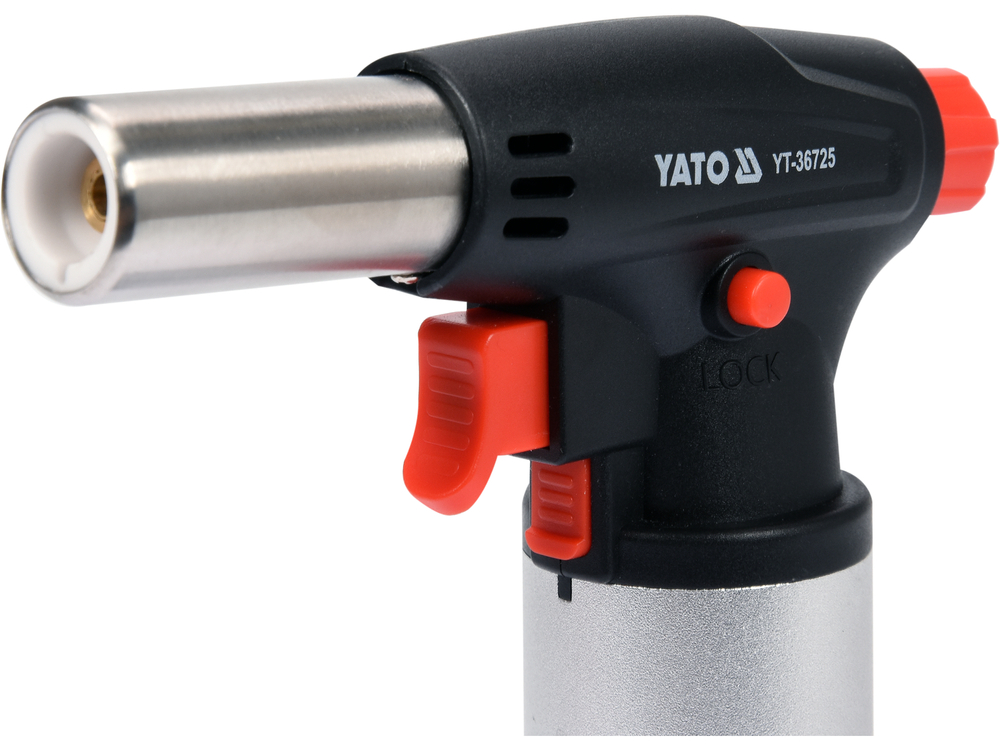

• the switch button has an effective lock to prevent accidental activation

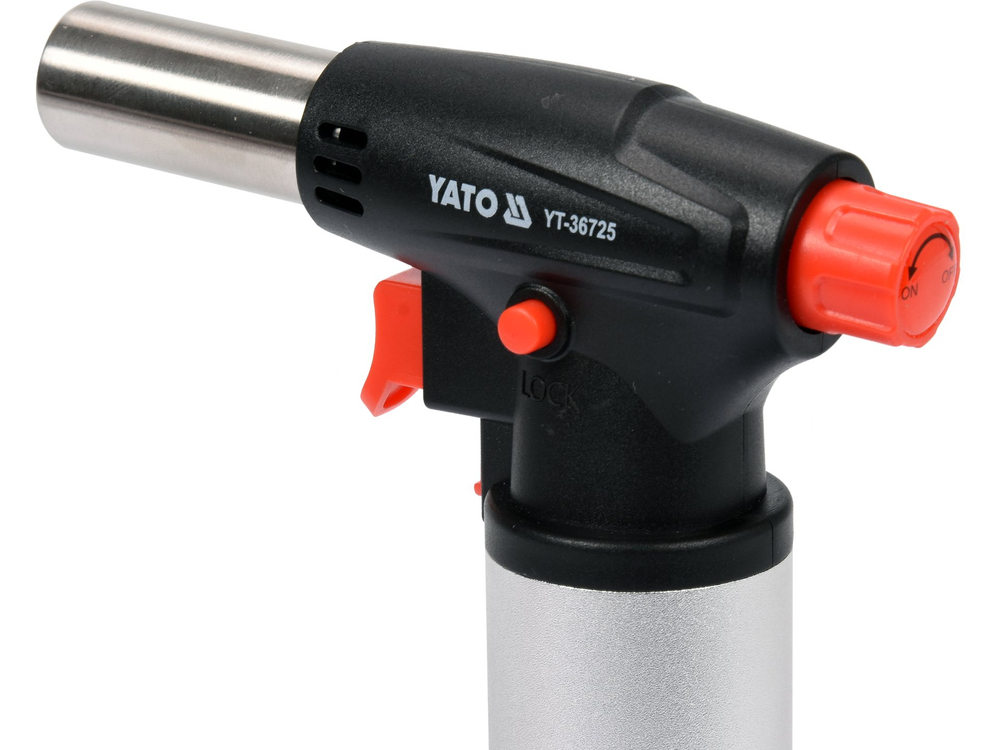

• the gas flow control knob is located at the end of the device head
• .burner nozzle, is made of steel sheet, has an internal ceramic-brass insert to prevent burnout
• blocking open flame
• tank acting as a handle is made of aluminum
• height: approx. 165 mm
• width: approx. 130 mm

Burner operation:

Set the gas regulator knob to the middle of the operating range. Press and hold the lock button before pressing, and then press and hold the spark button. The built-in ignition device will ignite the gas at the outlet of the burner nozzle. Use the gas regulator to adjust the flame height.

The spark igniter button has the ability to lock it in the pressurized position. With the spark igniter button locked, operation will be possible until it is unlocked or until the gas in the tank is exhausted.

The spark igniter button can be locked in the pressurized position.

Usage warnings:
