YT-18900

Name: HYDRAULIC METAL HOLE PUNCHER 22-60MM
Brand: Yato
Price: 627.30 PLN
Availability: InStock

HYDRAULIC METAL HOLE PUNCHER 22-60MM

+ Add to compare Add to shopping list

Brand

Yato

Entity responsible for this product in the EU

TOYA S.A.More

Address: Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl

Series

GRE

Cutting diameter

22-60 mm

Force pressure

6 t

Max. steel sheet thickness

3 mm

Rotary head

yes

Application

for cutting round holes in sheet metal, for cutting holes in the production of switchboards, for mounting boxes or switches

Symbol

YT-18900

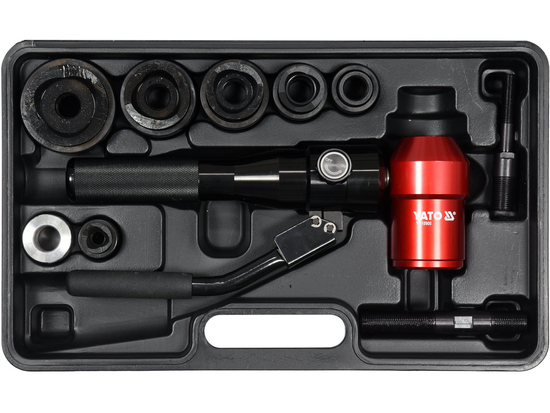

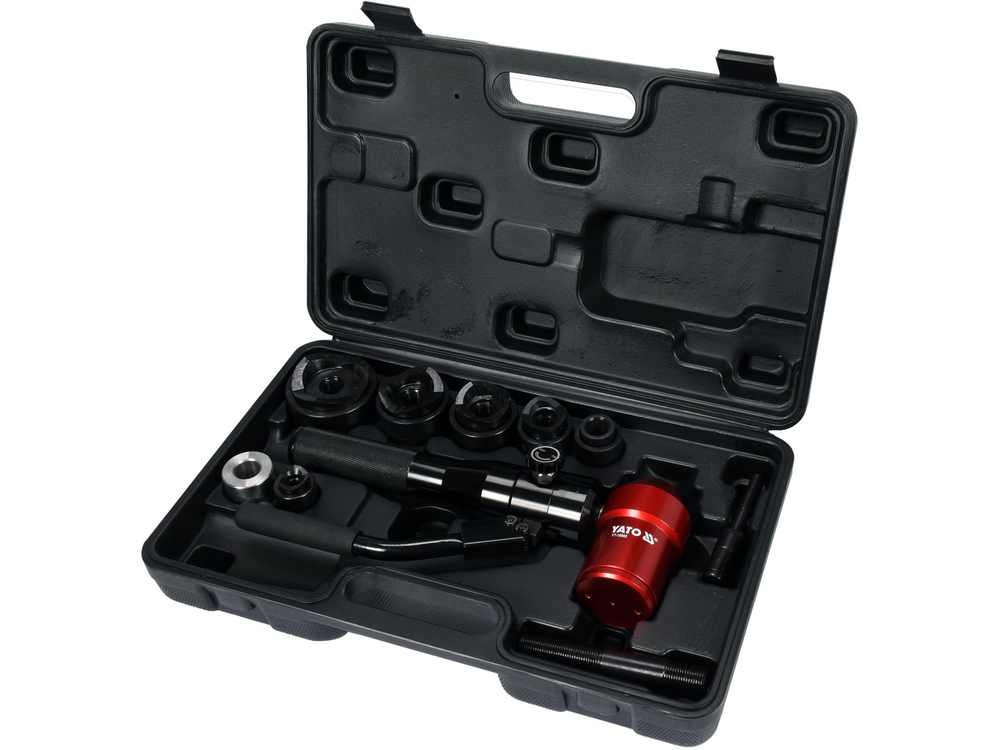

Set for cutting round holes in sheets in the diameter range from 22-60 mm. The head of the hydraulic actuator can be rotated 360 degrees. It is intended for cutting holes in the production of resolution cabinets for mounting cans or switches. When cutting the holes, the surface of the sheet is not deformation and damage. The set is easy to transport- packed in a durable suitcase. Contains matrices and stamps cutting holes with diameters 22 mm/0.9 ", 27.5 mm/1.1", 34 mm/1.3 ", 43 mm/1.7", 49 mm/2.0 ", 60 mm/2.4 ". The emphasis on the material during cutting is about 6 tons. Suitable for cutting holes in steel sheets, stainless sheets and colored metals. The thickness of the cut material depending on its type up to 3 mm. The set includes 6 pairs of dies/stamp and matrix/fi 22, 27.5, 34, 43, 49, 60 mm, 2 puffs for fastening 7/16x3/4 inches and 3/4x3/4 inches, manual actuator and 1 sealing set for quick cutting in sheet metal, large, precise holes with diameters from 22-60 mm in accordance with the instruction on the user manual. Transfer the appropriate fastener connected to the actuator through the drilled material, mount the stamp on it on one side on the other. . Manual cylinder with rotating head, cutting stamps 22 mm/0.9 ", 27.5 mm/1.1", 34 mm/1.3 ", 43 mm/1.7", 49 mm/2.0 " , 60 mm/2.4 matrices suitable for stamps- 22 mm/0.9 ", 27.5 mm/1.1", 34 mm/1.3 ", 43 mm/1.7", 49 mm/2 , 0 ", 60 mm/2.4 Plays for fastening 7/16x3/4 inches and 3/4x3/4"., Sealing set packed in a suitcase.
