Bestseller
YT-09544
AIR IMPACT WRECH 1/2" 1700NM COMPOSITE
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Toolholder size
1/2" (12.7 mm)
Toolholder type
Driver

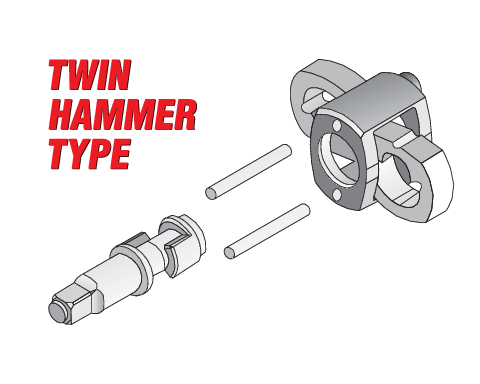

Stroke mechanism type
TWIN HAMMER
Max. working pressure
0.63 MPa
Required air flow
198 l/min
Rotations
7000 min⁻¹
Max. torque
1700 Nm
Quick coupler size
standard
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Length
190 mm
Casing material
composite, duralumin
Rotation switch
yes
Acoustic pressure
92.2 ± 3.0 dB(A)
Acoustic power
103.2 ± 3.0 dB(A)
Vibrations
4.66 ± 1.5 m/s²
Weight
2 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mechanical workshops, car services
Symbol
YT-09544

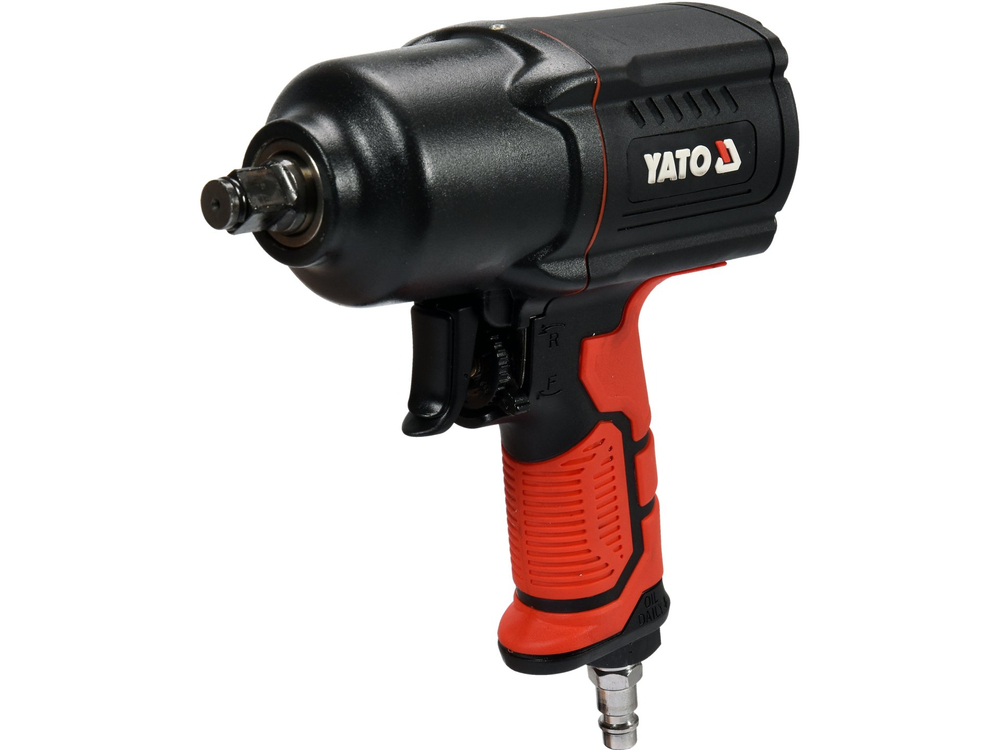

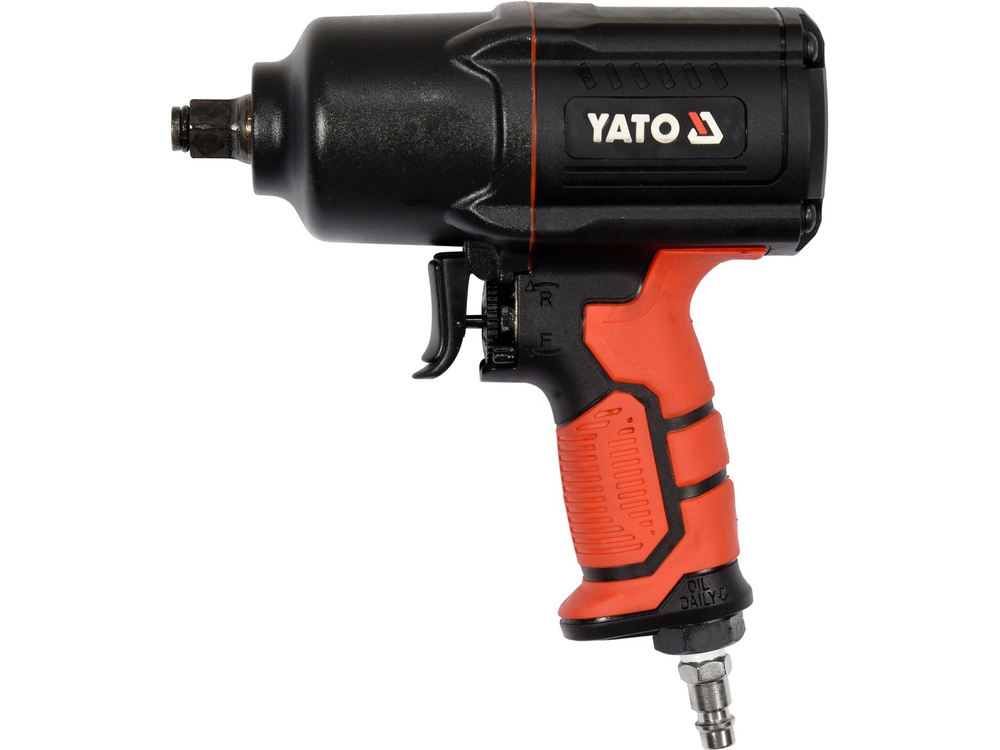

YT-09544 is a pneumatic 1/2” wrench powered by compressed air at 6.3 bar. It is designed for screwing/unscrewing screws and nuts during various types of workshop work. It will be perfect for automotive service shops, for example, serving for assembly/disassembly of kó³ vehiclesó³ passenger and delivery vehicles.
