81786
DETECTOR LIVE WIRE AND METAL
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Detected objects type
metal, live wires (A.C.)
Metal detection range
40 mm
Live wires (A.C.) detection range
50 mm
Metals detention relative humidity
0-85 %
Live wires (A.C.) detention relative humidity
0-30 %
Power supply
battery
Type of battery
3x1.5V; LR44
Dimensions
90x38x20 mm
LED indicators
yes
Bell ring
yes
Working temperature range
0~50 ˚C
Storage temperature
-10 ~ +60 ˚C
Weight
0.012 kg
Application
electric
Symbol
81786

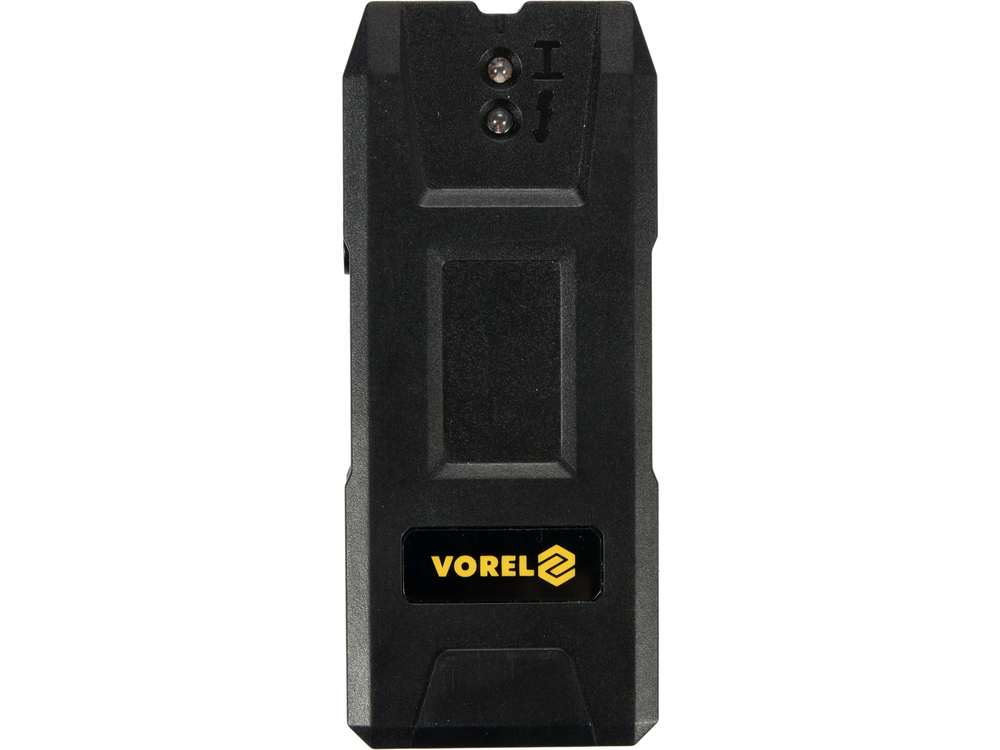

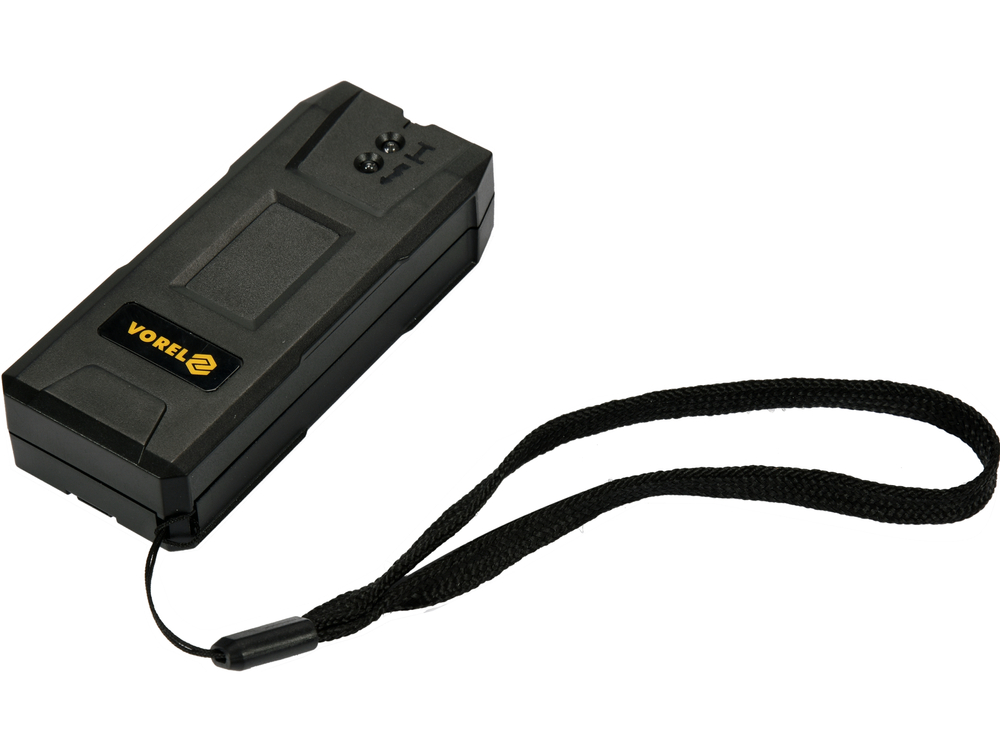

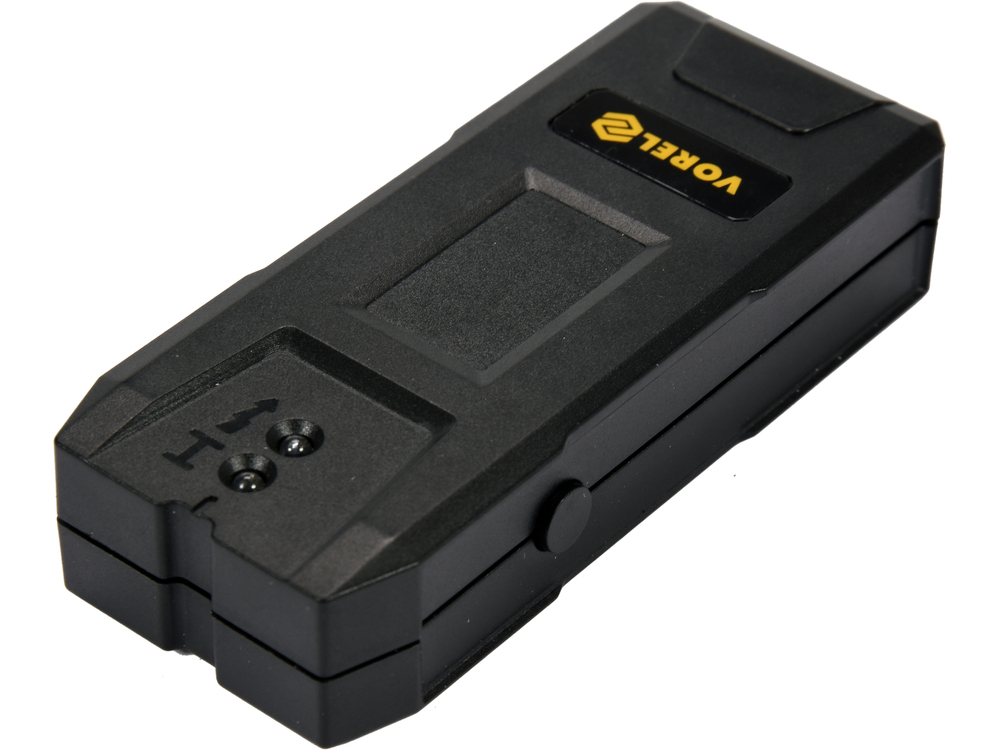

The 81786 wire & metal profile detector allows detection in walls or drywall:

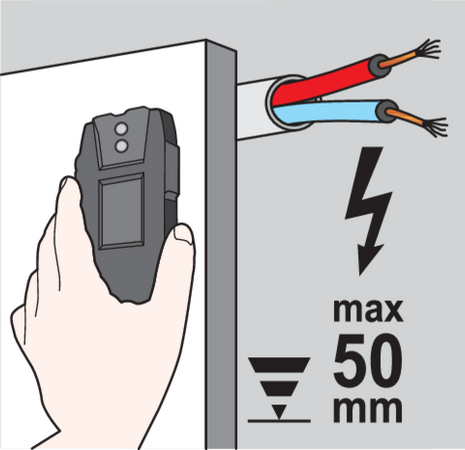

- conductorsów live up to 50 mm

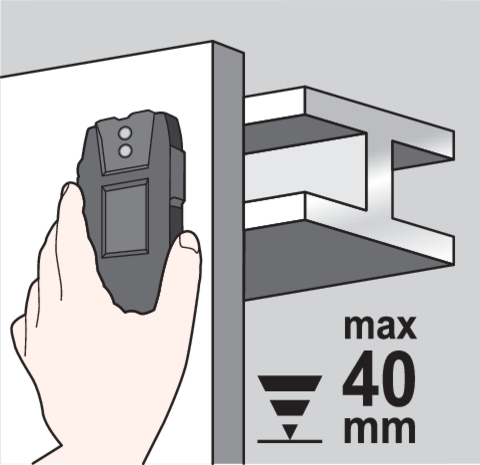

- metal profiles up to 40 mm

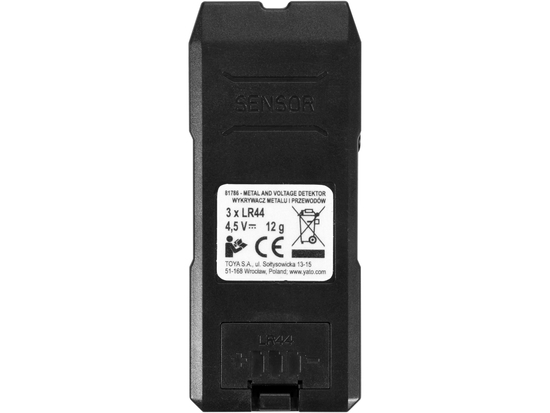

The detector is equipped with an audible signal and two LEDs to indicate material detection. It is very easy to use, and its small dimensions [mm] 90 x 38 x 20.5 and weight of 48g allow trouble-free storage. The detector is powered by 3X1.5V (LR44) batteries.
