YT-73093

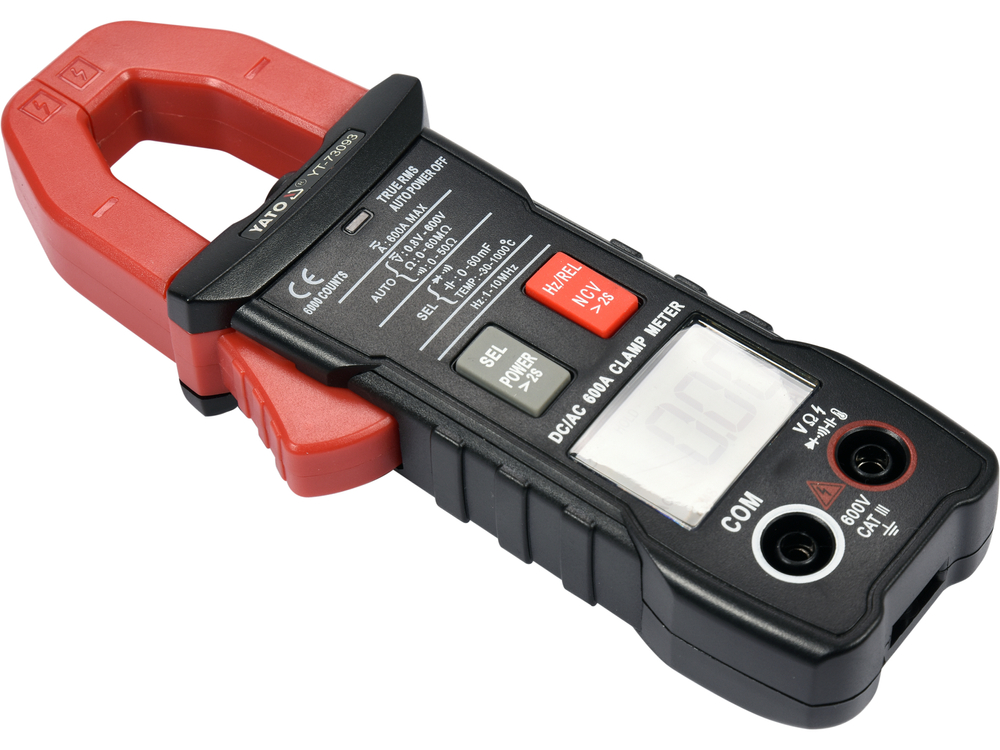

Name: CLAMP MULTIMETER TRUE RMS AC/DC 600A
Brand: Yato
Price: 143.30 PLN
Availability: InStock

CLAMP MULTIMETER TRUE RMS AC/DC 600A

+ Add to compare Add to shopping list

Brand

Yato

Symbol

YT-73093

Producer code

5906083072246

Series

GRF

AC voltage measurement

0-600 V a.c.

DC voltage measurement

0-600 V d.c.

Alternating current

0-600 A

Resistance measurement

0-60 MΩ

Capacity measurement

0-60 mF

Frequency measurement

0-10 MHz

Temperature measurement

-30 ~ +1000 ˚C

Circuit continuity test

0-50 Ω

Conduction test

Yes

LED test

Yes

Battery test

yes

Peak value recording

yes

Non -contact NCV alternating voltage detection

yes

Dimensions

172x64x32 mm

Material

ABS

Max. clamp opening

25 mm

Max. diameter of wire to be measured with clamps

25 mm

Display type

LCD

Display range

6000

LED backlight

Yes

Sound signal

Yes

Automatic measurement range

yes

Automatic switching off

15 min

Data Hold

Yes

Sampling frequency

3 times per second

TRUE RMS

yes

Flashlight function

Yes

Power supply

battery

Type of battery

2x1.5V; AAA

Low battery level indicator

Yes

Operating temperature range

0~40 ˚C

Relative humidity of RH work

< 75 %

Storage temperature

-10 ~ +50 ˚C

Weight

0.161 kg

Application

electric

The Universal YT-73093 cruise meter with an automatic range for each measurement enables basic and advanced electrical measurements. The meter has been equipped with measuring pitches, which allow for measuring DC and AC in a single cable using a built -in Hall sensor. The measurement takes place without the need to disconnect the circuit or disconnect it from the power source and allows you to measure a much higher current intensity than in the case of conventional electrical meters. Basic measurements measurement of alternating voltage: A.C. 0-600V, TRUE RMS MEASUREMENT OF DC voltage: D.C. 0-600V ACTION MEASUREMENT: A.C. 0-600A, TRUE RMS DC measurement: D.C. 0-600A resistance measurement: 0-60MΩ LED test: IF 5MA, UR 3V circumference continuity test: 0-50Ω Additional measurements Capacitor capacity measurements: 0-60mf Frequency measurement: 0-10MHz Temperature measurement: -30 to 1000 ° C non-contact detection Alternating voltage: NCV measurement accuracy Example of determining accuracy for measuring AC alternating current. Calculations for the measurement result: 30A Measurement accuracy of the YT-73093 meter for this range is: ± (2.0% + 30), resolution 0.01a Measurement error calculation Pattern: (measurement result x 2%) + 30 x Calculation resolution: (30 x 2 %) + 30 x 0.01 = 0.6 + 0.3 = 0.90A The actual result, taking into account the measuring error for the indication 30a = 30 ± 0.90a. & Nbsp; The result, taking into account the measuring error for indicating the measurement of alternating voltage: 235V = 235 ± 4.175V, the result taking into account the measuring error for indicating the measurement of a fixed voltage: 12V = 12 ± 0.09V The table with resolution and accuracy for a given measurement is in the user manual. Built -in TRUE RMS functions - a meter with this function calculates the real value of the effective value of alternating current and intensity for both sinusoidal and non -sinusoidal mileage. The device first measures the actual sinusoid value at several intervals → Then the measurement results are raised to a square → sums them in the average → calculates → and finally the average element. The measurement result is a real effective value of alternating current voltage/current even for a deformed sinusoid or rectangular NCV mileage - non -contact alternating voltage detection using the induction method. The meter detects the presence of voltage in the insulated cable, it can also indicate the phase cable car - automatic matching of the measurement range. In the case of measuring unknown values using a meter with a manual change in the range using the knob, measurements should be made successively from the largest range to the range that gives the most accurate result - otherwise we risk damage to the device. However, in the case of a multimeter with a car function, you just need to make one measurement and the meter will automatically find the optimal range. The meter is launched by default in the Auto Data Hold mode - behavior on the display of the currently measured Peak Hold - behavior on the display of the highest measured value using Inrush Current measuring probes - starting current measurement using measuring tips. The meter will measure the current intensity within 100ms of starting the device Additional information LCD display, & nbsp Diode test) A sound signal in the circuit continuity test below 50Ω CHYS DISPLEMS to 25 mm and allows measuring a single cable with a maximum of up to 25 mm measuring probe with a length of 14.5 cm long cable length along with probes: 97 cm Diameter of the cable along with Insulation: 3.5 mm The set is included in the design cover with overload protections. Automatic switching off the meter after 15 minutes of inactivity. Possibility to turn off the automatic switching mode of the device low battery level. Power supply: two 1.5V batteries (AAA) NOTE. It is performed only on a single vein, a single wire. Fastening of the fibers on a multi -core cable without separating a single vein will show an abnormal result or zero current flow.

To download

User manual YT-73093
