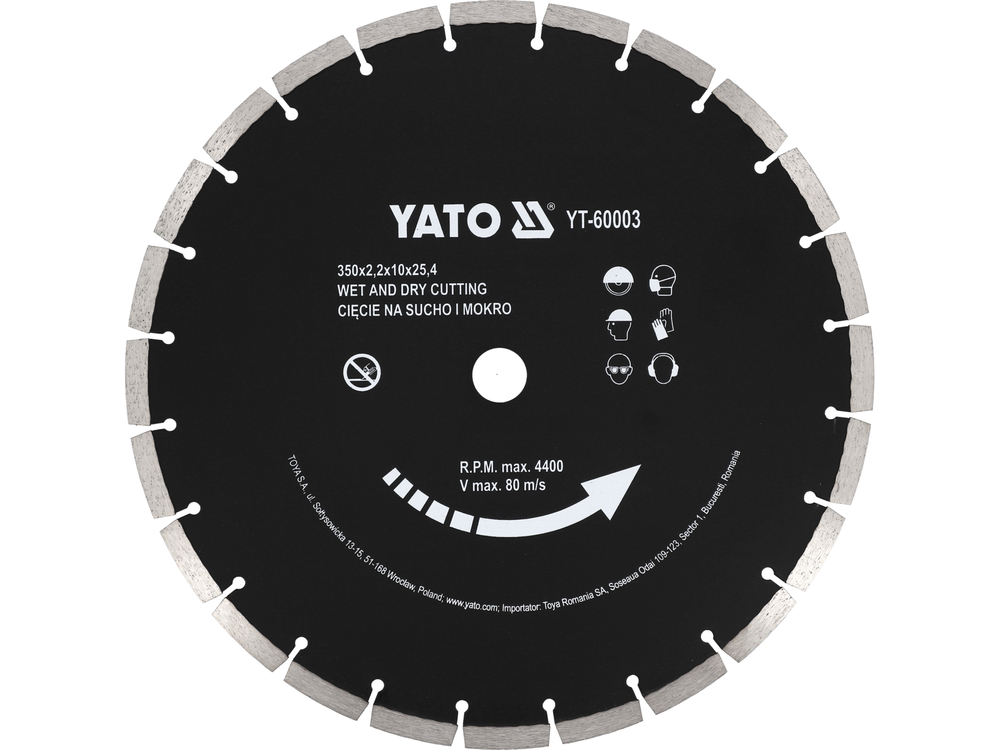

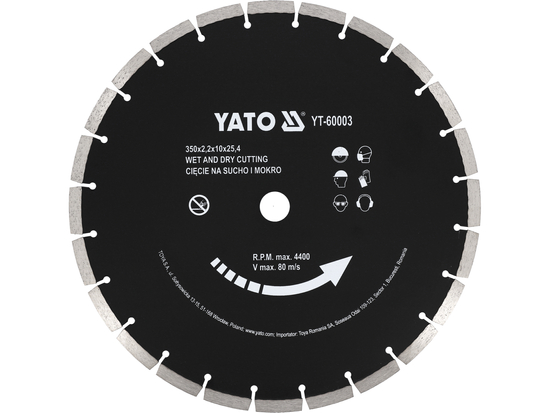

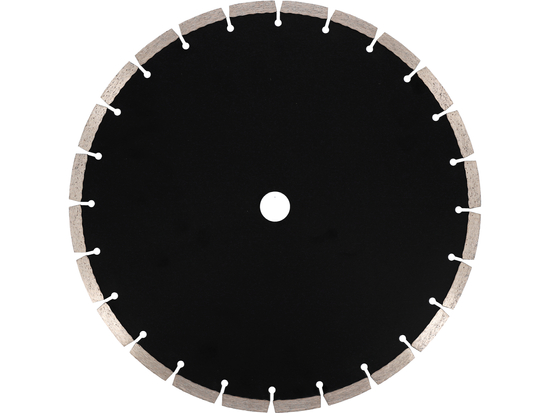

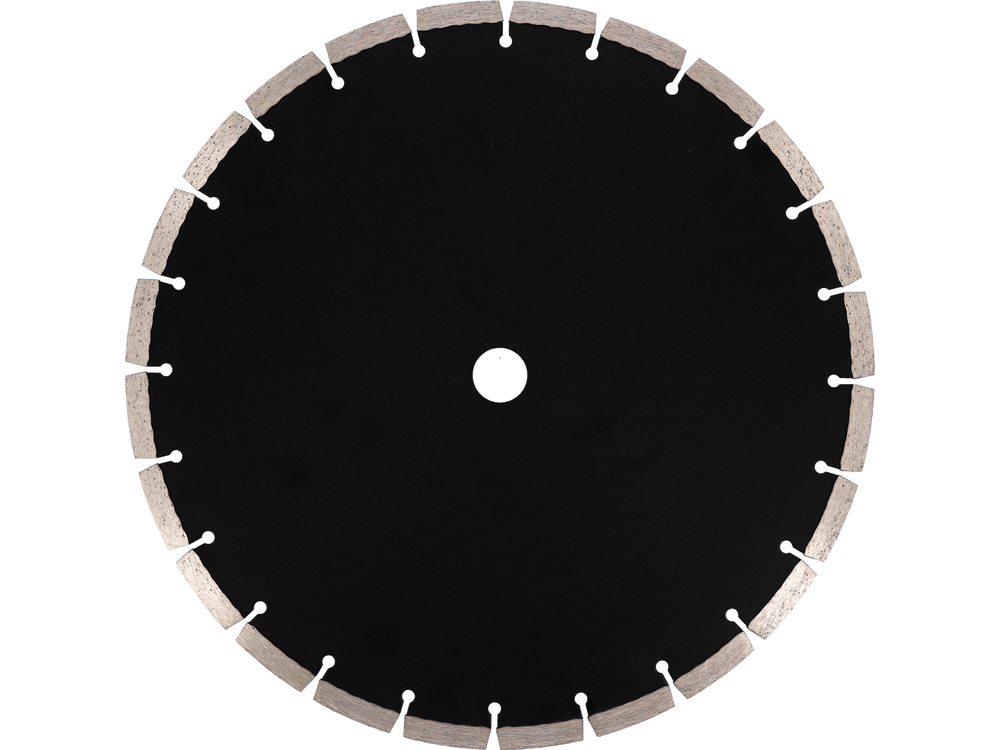

YT-60003
DIAMOND BLADE FOR CONCRETE 350*25,4MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Diameter
350 mm
Mounting hole diameter
25.4 mm
Max. rotations
4400 min⁻¹
Max. disc linear velocity
80 m/s
Cutting segment thickness
3.4 mm
Cutting segment height
10 mm
Cutting segment chemical composition
Fe 20%, Cu 55%, Sn 7%, Ni 8%, Every 10%, diamond coating 20%
Material
steel 65Mn
Work type
dry, damp
Application
hardened concrete, brick, granite, wall, stone, sandstone, refractory materials, silicates
Symbol
YT-60003









Concrete diamond disc with hot-pressed sgment for high durability. Rós even distribution of diamond granules allows cutting from the góry of the segment to its base. The cobalt in the segment has a high hardness thatóra ensures the durability of the disc.
Fits all commercially available petrol and electric cutting machines, e.g.: Stihl, Husqvarna, Hilti DSH 700, Yato YT-82158.
- diameter: 350 mm
- shield mounting hole: 25.4 mm
- thickness of disc body: 2.2 mm
- segment thickness: 3.4 mm
- segment height: 10 mm
- number of teethós: 24
- disc body material: steel, hardness 65Mn
- segment designed for dry and wet cutting
- for cutting concrete, reinforced concrete, granite, sandstone, marble
- provides for cutting 1500 m lengthwise in natural stone
