YT-60004
DIAMOND BLADE FOR CONCRETE 400*25,4MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Diameter
400 mm
Mounting hole diameter
25.4 mm
Cutting segment height
10 mm
Cutting segment thickness
3.6 mm
Cutting segment chemical composition
Fe 20%, Cu 55%, Sn 7%, Ni 8%, Every 10%, diamond coating 20%
Material
steel 65Mn
Max. rotations
3850 min⁻¹
Max. disc linear velocity
80 m/s
Application
hardened concrete, brick, granite, wall, stone, sandstone, refractory materials, silicates
Work type
dry, wet
Symbol
YT-60004

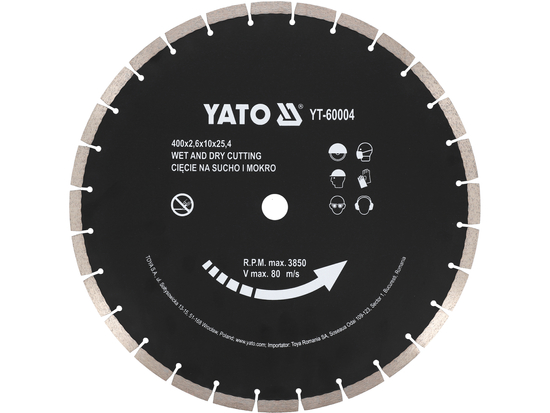

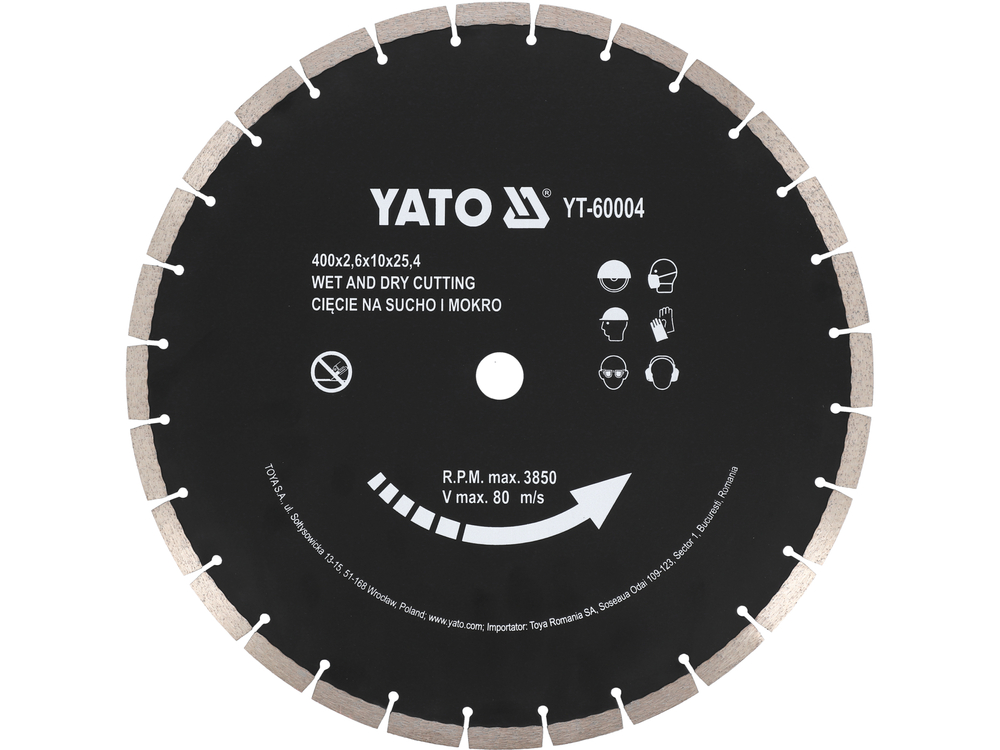

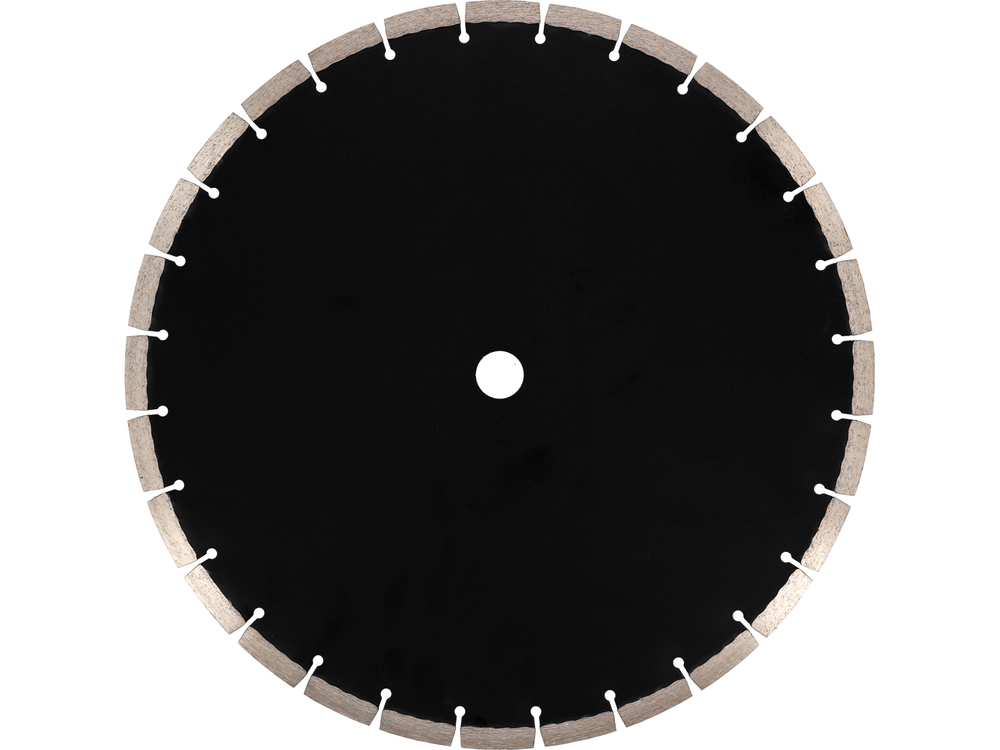

Diamond disc for concrete with hot-pressed sgment, which ensures high durability. Ródistribution of diamond granules allows cutting from the góry segment to its cap. The cobalt in the segment has a high hardness thatóra ensures the durability of the blade.
Fits all commercially available petrol and electric cutting machines such as Stihl, Husqvarna, Hilti DSH 900, YATO YT-84820.
- diameter: 400 mm
- disc mounting hole: 25.4 mm
- thickness of disc body: 2.6 mm
- segment thickness: 3.6 mm
- segment height: 10 mm
- number of teethós: 28
- disc body material: steel, hardness 65Mn
- segment designed for dry and wet cutting
- for cutting concrete, reinforced concrete, granite, sandstone, marble
- provides for cutting 2000 m lengthwise in natural stone
