The handheld wood saw is a power tool designed for cutting wooden surfaces and surfaces of materials produced on the basis of wood processing - such as plywood, particleboard, MDF, etc., with circular saws.

The saw can conveniently cut wood both vertically on the work surface in an adjustable range of cutting depth, and at an angle in an adjustable range from 0 to 45 degrees.

The saw can also be used for plunge cutting, that is, not starting from the edge of the material being cut.

Product description

Precision plunge-cutting saw for carpentry work comparable to the best equipment in its class. Designed for accurate and fast cutting of laminates: kitchen countertops under the sink, the expansion gap for panels and floorboards, as well as furniture boards without gouges, and also for undercutting doors.

Equipped with motor control electronics, which allows safe plunge cutting, as well as during reverse motion (useful for cutting interior corners). The soft start and constant speed option is found on top-of-the-line equipment and also has an impact on the life of the gearbox.

The working base, made of duralumin and ground after casting, is stable and precise. The machine comes complete with a sturdy parallel guide, mounted on double brackets that ensure rigid construction and no problems associated with the blade wedging when working with the guide.

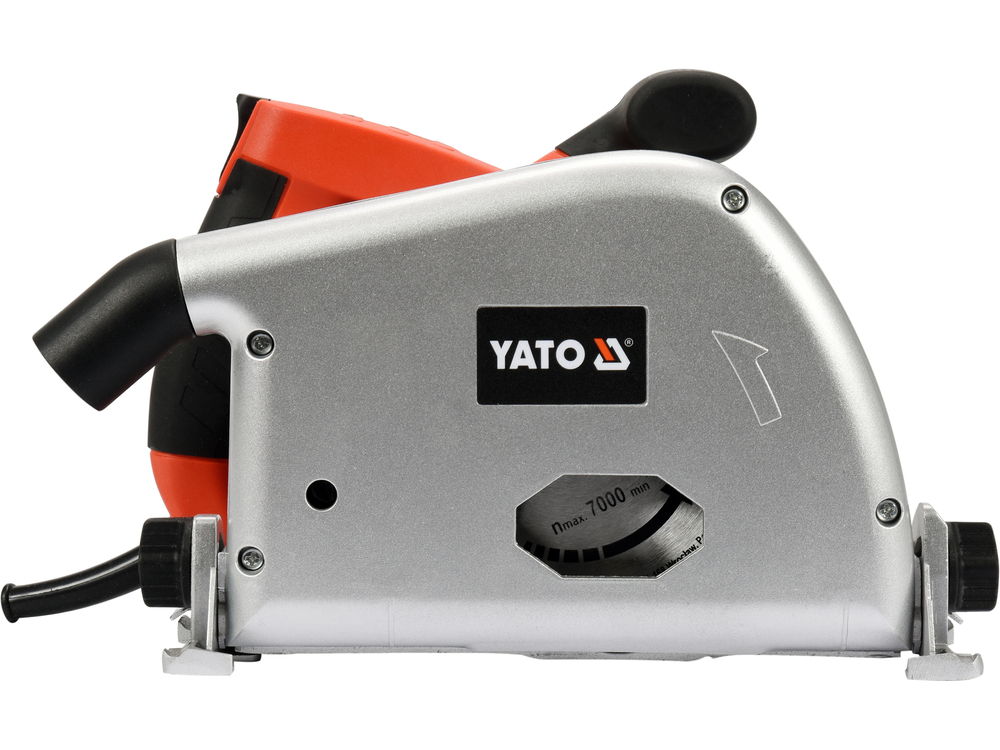

The plunge-cutting machine has a built-in thermal switch and is designed to work with a 1.4m long guide bar, part number YT-82169. The inspection window located on the motor side allows visibility of the cutting edge during work that forces cutting, for example, against a vertical wall (min. Distance of 16mm from the edge of the vertical piece).

High precision cutting also gives the possibility of cutting grooves at tongue-and-groove joints.

• 1300W power
• blade 165mm x 20mm
• thickness of cut 2.4mm
• soft start
• constant speed
• high quality parallel guide included - on two rigid supports
• cooperates with the 1,4m guide bar YT-82169 (not included in the set) - you can combine bars, for example, to cut along the furniture boards (e.g. 1,4m x 2 = 2,8mb)
• cutting depth 90°/45° 55mm/38mm

Parameters:

• mains voltage [V~]: 220 - 230
• mains frequency [Hz]: 50
• rated power [W]: 1300
• insulation class: II
• rated rpm [min-1]: 2000 - 5000
• max. depth of cut (0 degrees / 45 degrees) [mm]: 55 / 38
