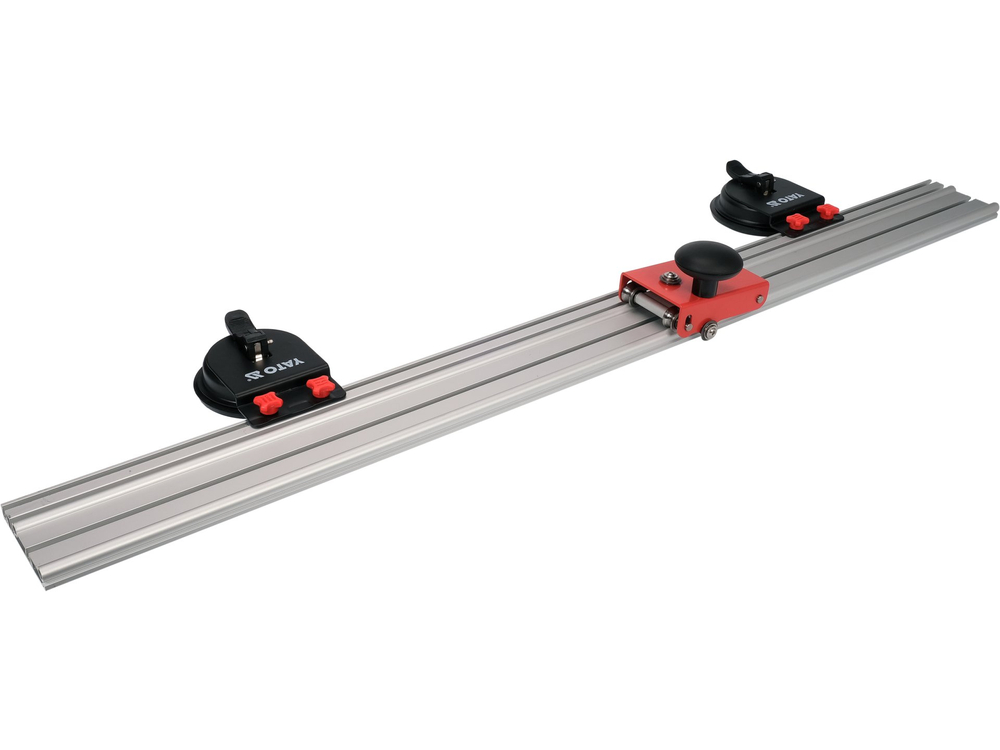

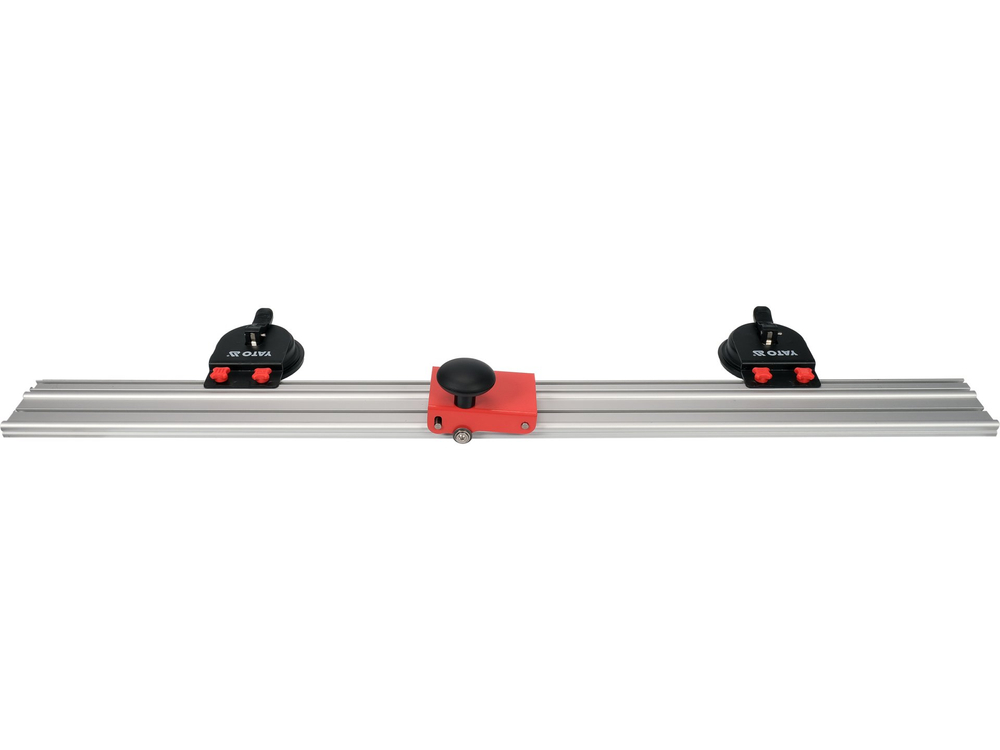

Cutting machine for ceramic plates with a length of up to about 320 cm. The set includes:

• three rails - guides made of aluminum

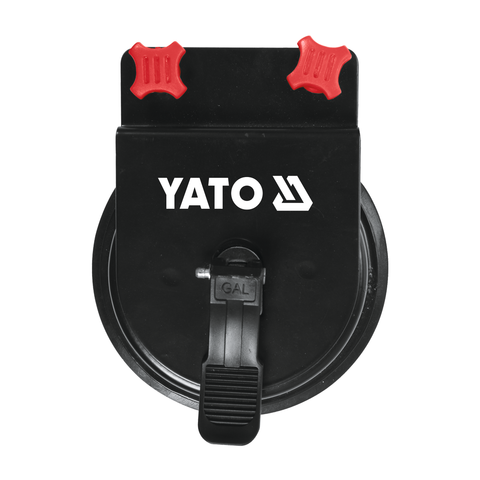

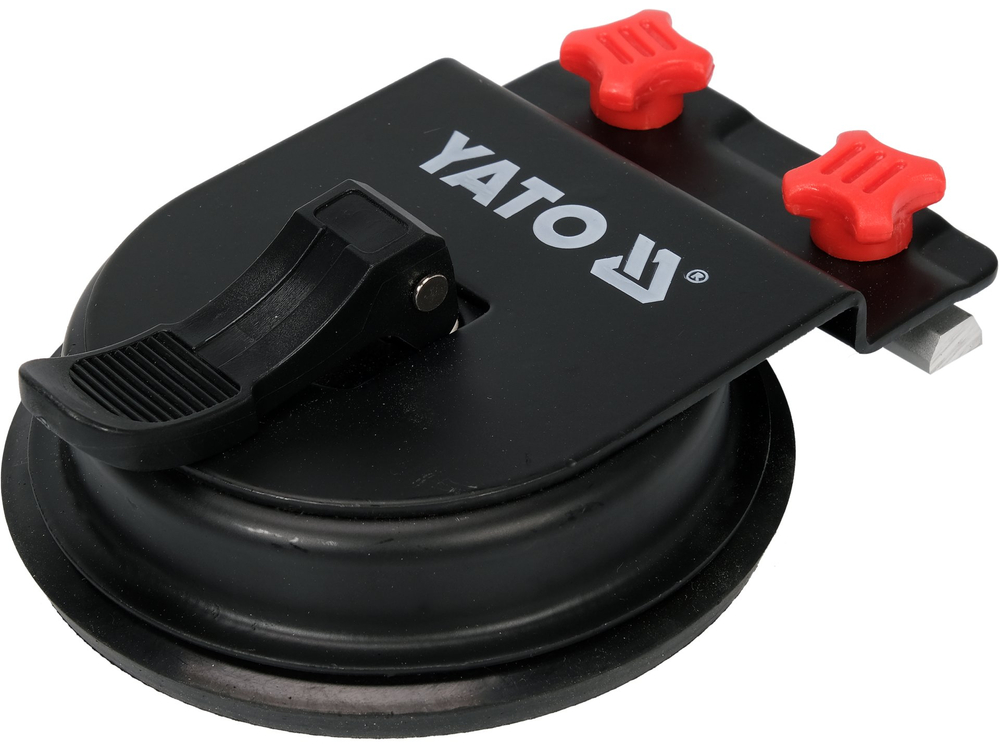

• four mounting suction cups that are connectors of the rails

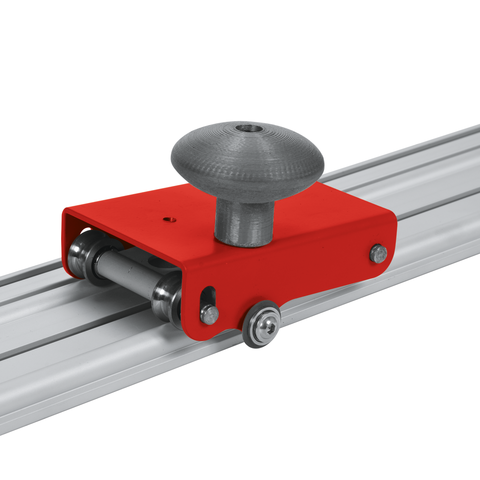

• one nó¿ on four rollers to guide along the guide.

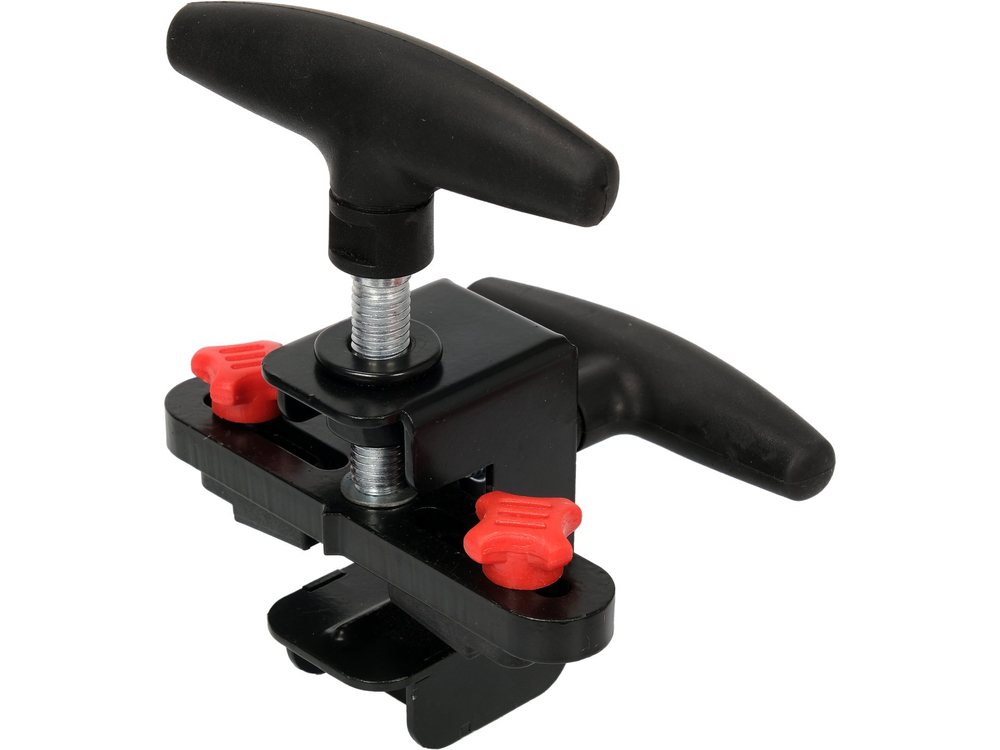

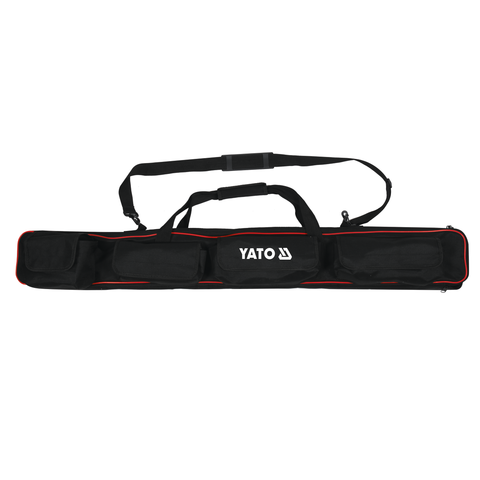

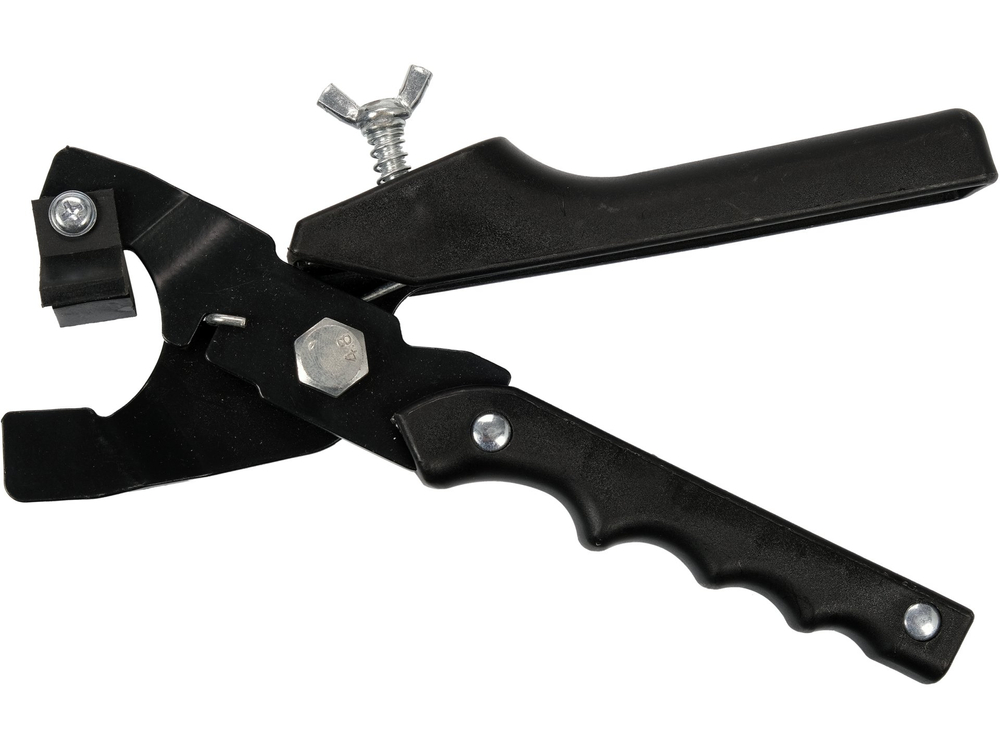

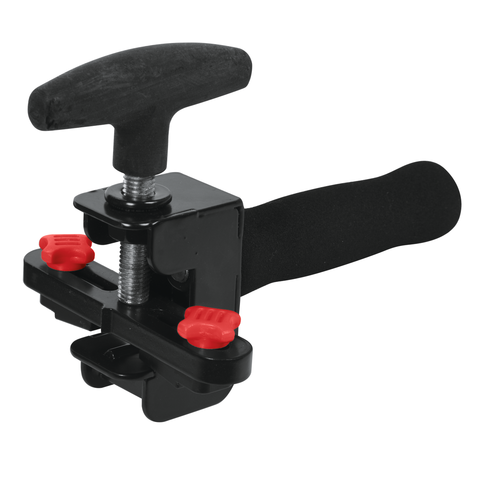

The set includes hand pliers for breaking the notched plate and a wide handle for breaking larger sections of the plate. The set is packaged in a bag - a case made of thick nylon.

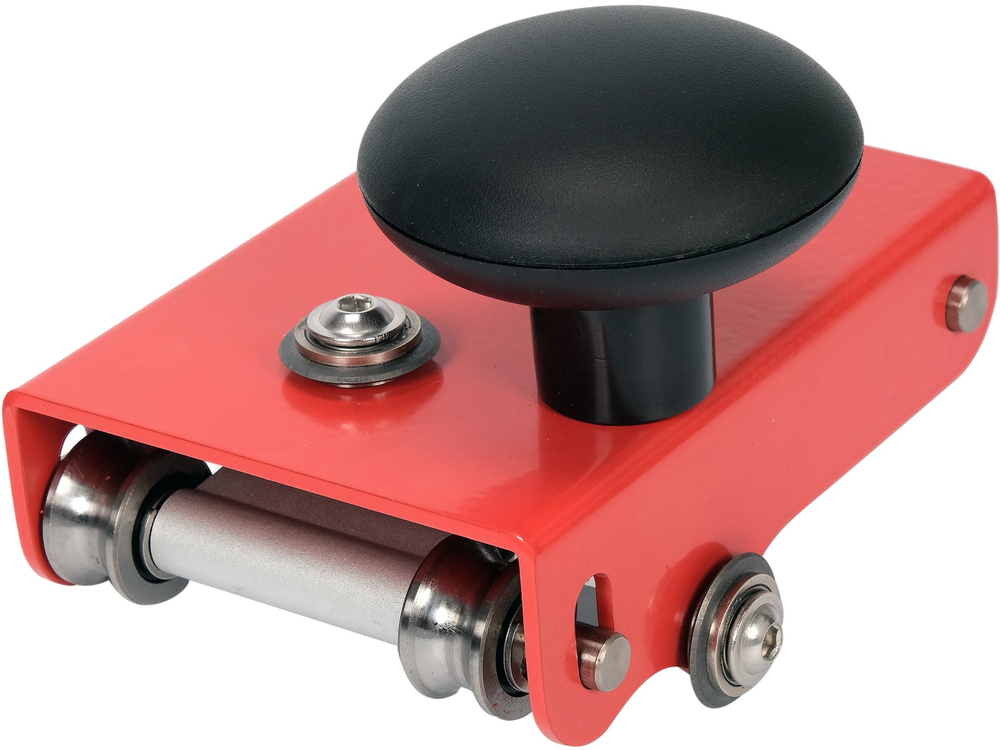

The cutting element is a 22 mm diameter ball-bearing forked kóblade. It can be pressed by the operator against the material while cutting. The cutter is designed for cutting large ceramic tiles with a thickness of 3 to 8 mm. Maximum cutting length of about 320 cm.

Sposób of use:

• depending on the size of the slab to be cut, we mount one, two or a combination of three guides on the surface of the slab.
• to the guide mounted on the suction cups, we attach the wózek with the cutting unit
• sliding it along the guide, we press with sensitivity to the surface of the plate obtaining the required cut<
• breaking is done with the included pliers or breaker
