YT-30397
ALUMINIUM DIGITAL LEVEL 400MM WITH VIALS AND MAGNETS
Brand
Symbol
YT-30397
Producer code
5906083077999
Series
Scope of the measured angle
360 ( 4x90) ˚
Measuring unit
Steps, millimeters / meters, percentage of inclination, slope in the imperial system of measures on the foot
Measuring accuracy
0.05 ˚
The accuracy of the measured angle
0 / 90˚: ± 0.1˚; 1° - 89°: ± 0,2° ˚
Dimensions
415x50x21 mm
Functions
zeroing and relative angle measurement, maintenance of the measurement result on the screen
Length
400 mm
Material
aluminium
Surface finish
anodyzowana
Dragonfly
2
Magnet
Yes
Number of magnets
4

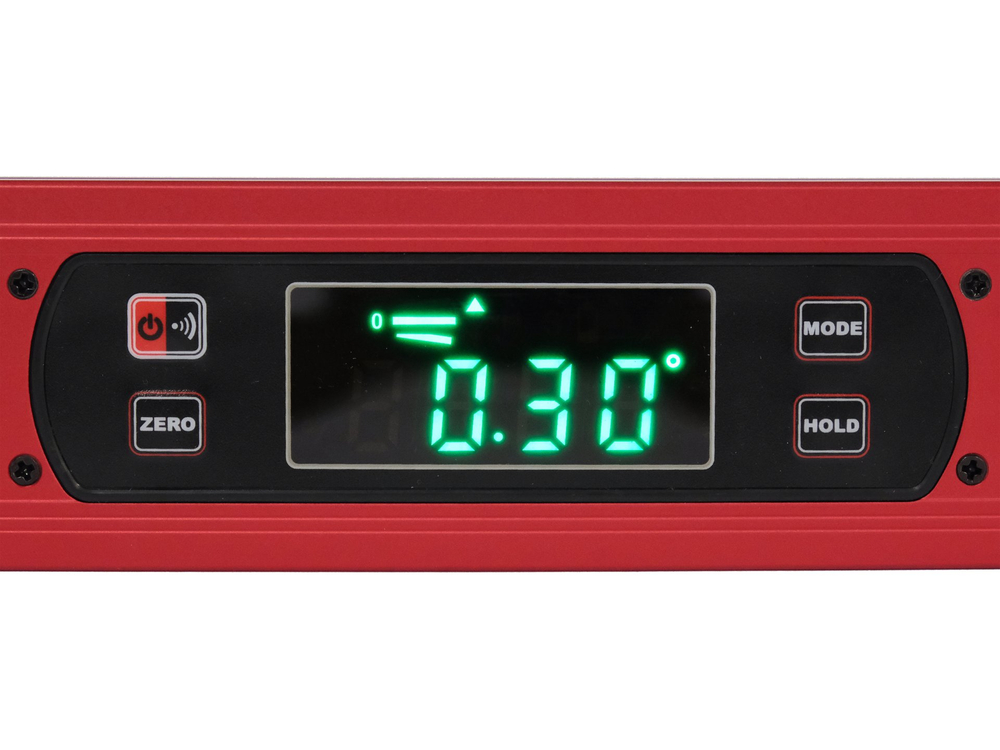

Display type
illuminated LED
Power supply
battery
Type of battery
2x1.5V; AAA
Sound signal
No
Automatic switching off
3 min
Operating temperature range
0~40 ˚C
Storage temperature
-10 ~ +50 ˚C

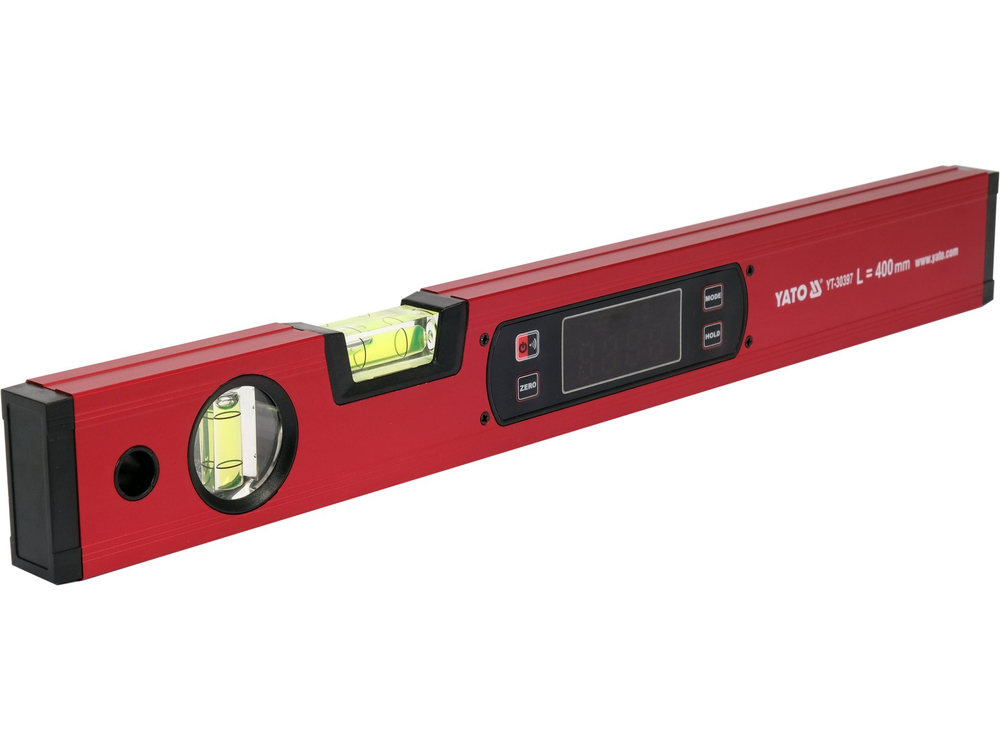

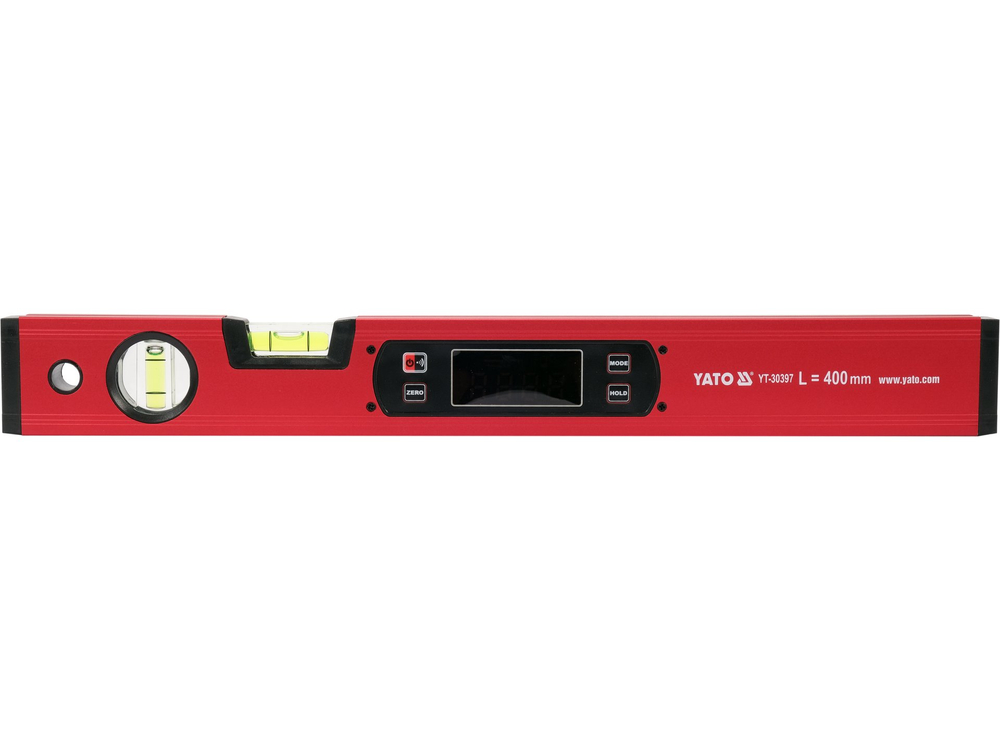

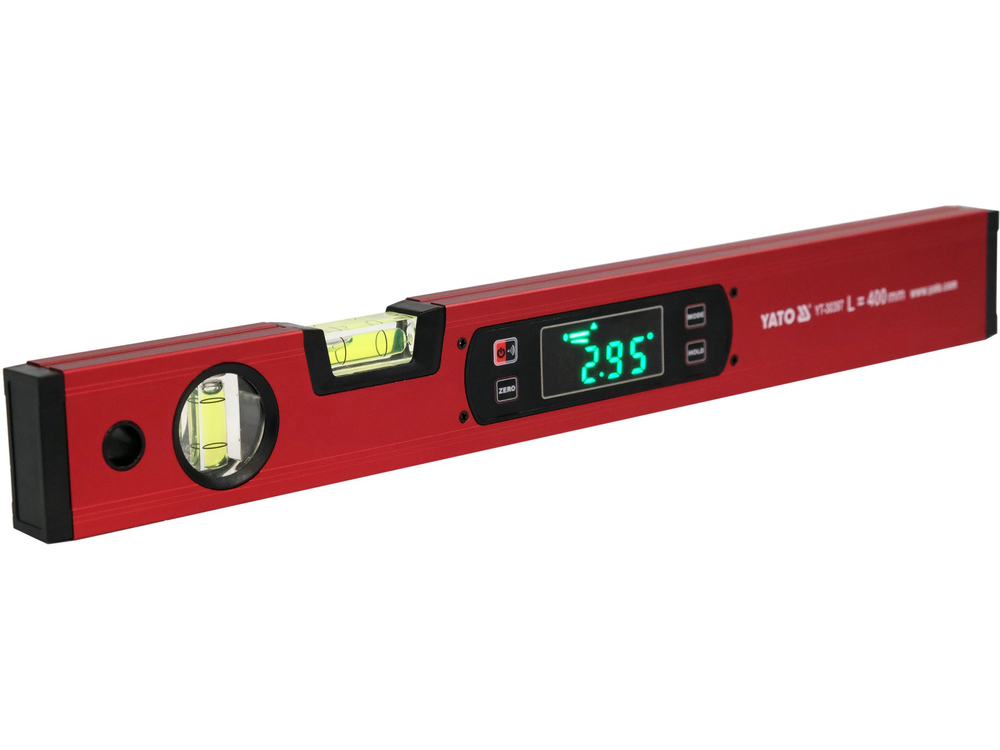

Electronic level 400 mm magnetic
- aluminum body, anodized
- two vials
- LED illumination system ./li>

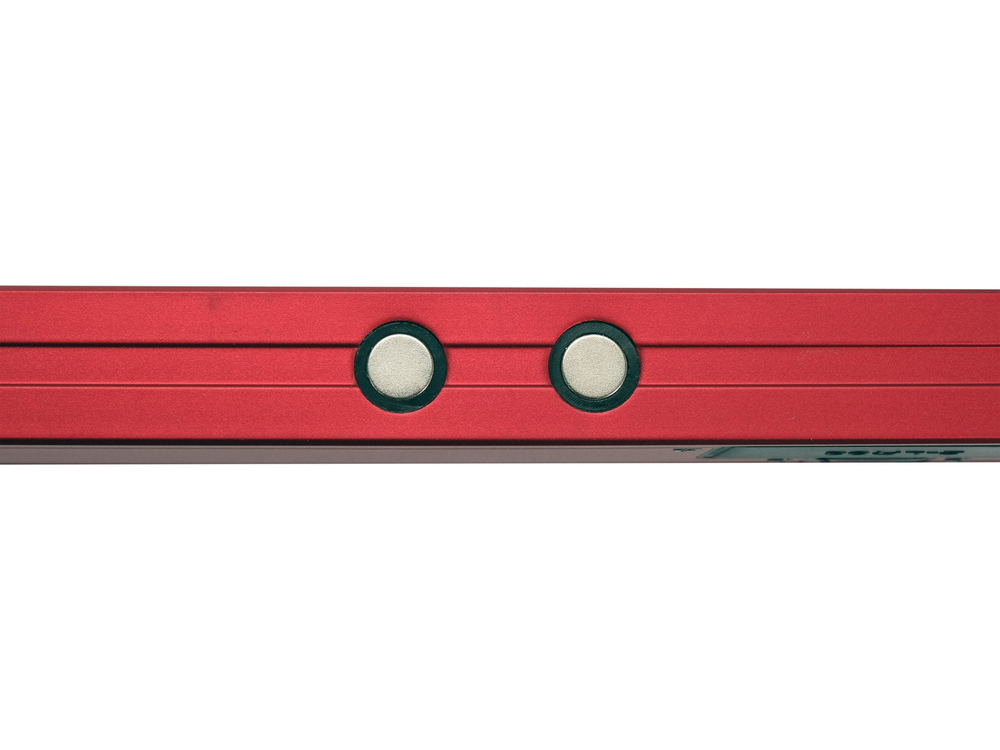

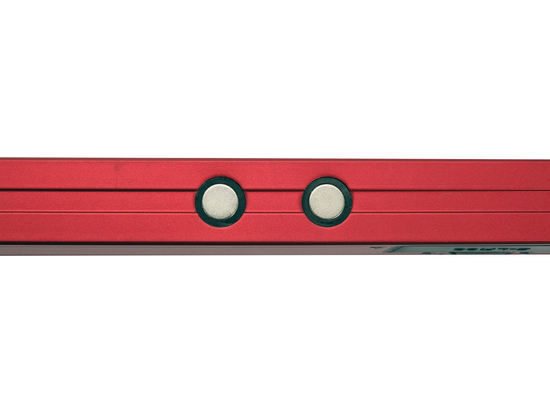

- precision milled measuring plane with four strong magnets
- power supply 2 batteries 1.5 v type AAA
Functions:
- indication in degrees, percent, millimeters or inches
- blocking measurement result
- audible indication
- automatic shutdown
For precise measurements determining plumb or level. According to the instruction manual.
