YT-07191
PNEUMATIC OIL DRAINS / EXTRACTOR 65L
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Max. extraction pressure
0.8 MPa
Recommended extraction pressure
0.7 MPa
Max. tank-emptying pressure
0.18 MPa
Required air flow
150 l/min
Produced vacuum
-1 ÷ 0 MPa
Tank capacity
70 l
Bowl capacity
5 l
Main tank capacity
65 l
Height
135 cm
Air connection diameter (PT)
standard
Wheels
yes
Wheel quantity
4
Liquid temperature
40~60 ˚C
Acoustic pressure
101.2 ± 3.0 dB(A)
Acoustic power
119.8 ± 3.0 dB(A)
Weight
17.5 kg
Set includes
pneumatic sink and suction machine, suction probe x6 (flexible probe x4; metal probe x2)
Symbol
YT-07191
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION_PARAMETER/image-thumb__70417__Sklep_pikto/0%2C7-0%2C8_MPa_SUCTION.png")
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION_PARAMETER/image-thumb__70419__Sklep_pikto/0%2C18_MPa_EJECTION.png")
![](https://pim.toya.pl/piktogramy/L_ml/image-thumb__51494__Sklep_pikto/70_L.png")
![](https://pim.toya.pl/piktogramy/x1234_DESCRIPTION/image-thumb__84968__Sklep_pikto/6_SUCTION_PROBES_ENG.png")
![](https://pim.toya.pl/piktogramy/BRAKE_WHEEL/image-thumb__66050__Sklep_pikto/4x_WHEEL.png")
![](https://pim.toya.pl/piktogramy/PICTURES_DESCRIPTION/image-thumb__60328__Sklep_pikto/COUPLE_01_STANDARD.png")

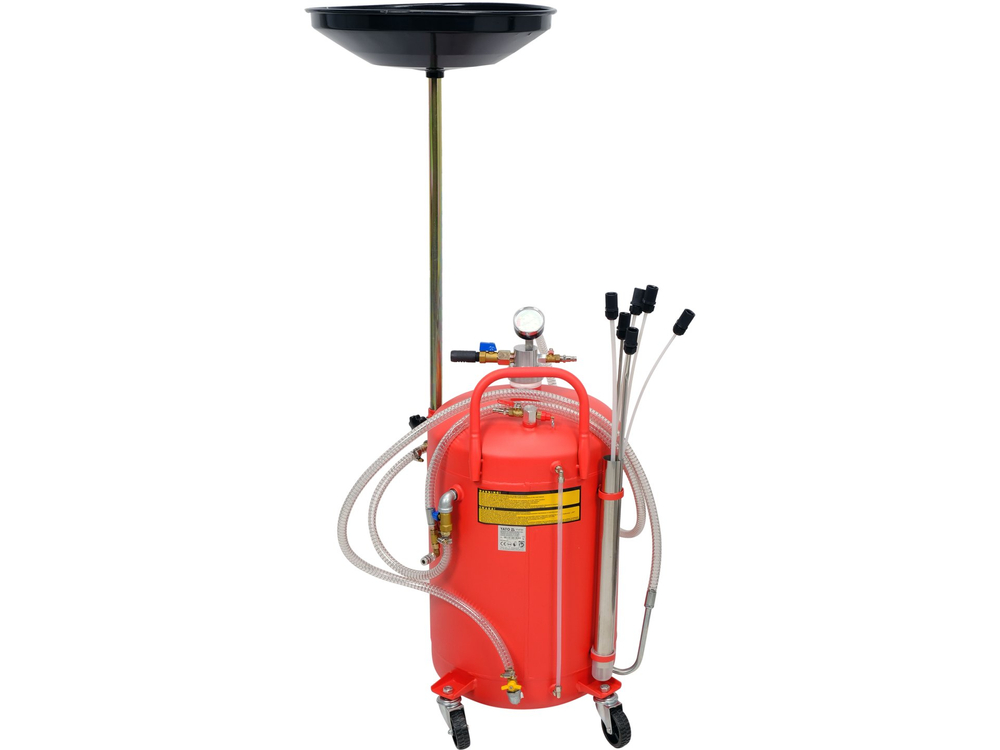

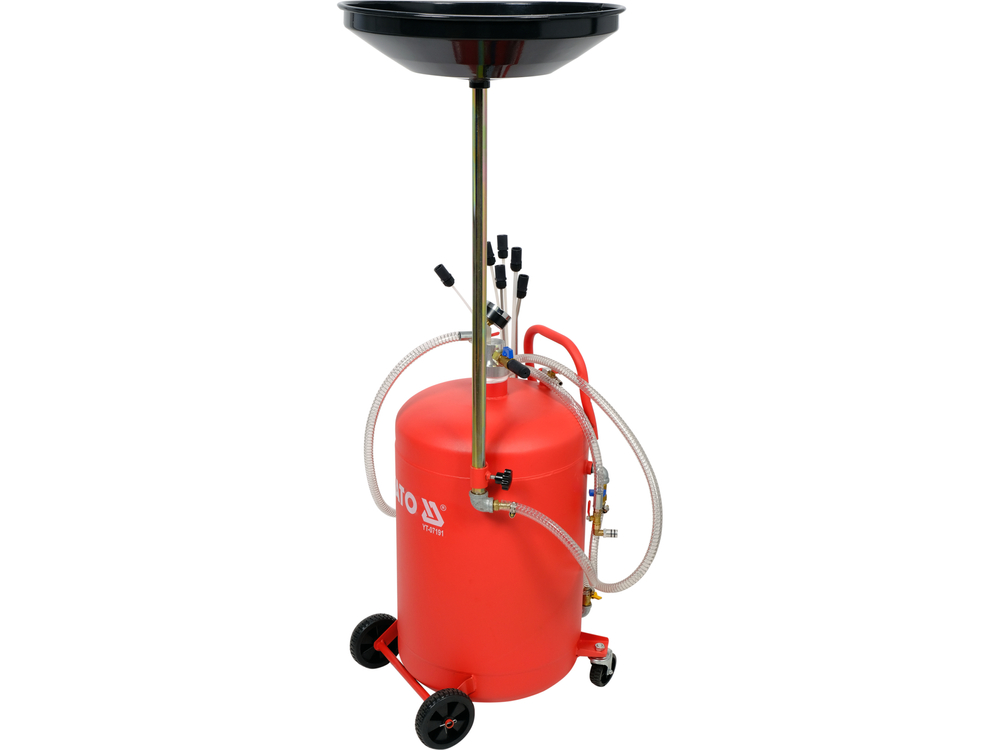

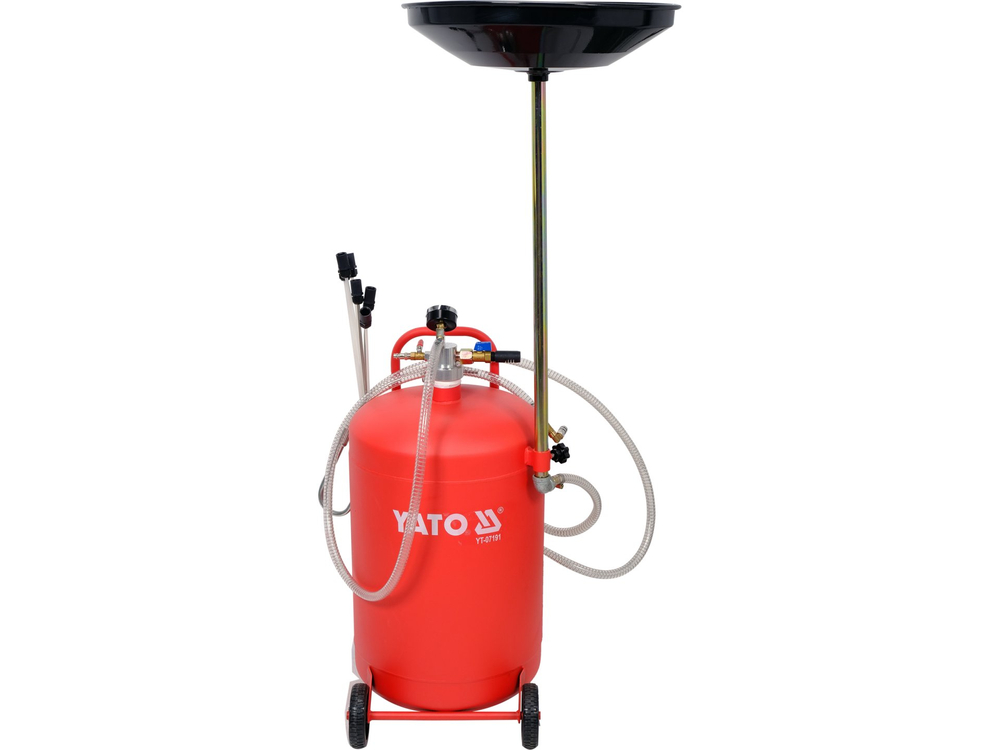

Professional beaker-sucking machine allows you to quickly drain oil from car enginesós and gearboxesós. Used for sinking and sucking oil and operating fluids from carsós, motorcycles and agricultural machinery.
- Tank capacity of 65 l
- Wide 5 l funnel
- Detailed suction of lingering oil from linesós and pipes
- Working pressure: 8 bar
- suction pressure: 0.7-0.8 MPa
- suction pressure: 0.18 MPa
- equipped with 4 có³, including 2 swivel castors for easy movement of the device
- height: 135 cm
- storage holder for suction probes helps keep your work area neat and clean
- included 6 suction probes – 4 flexible and 2 metal – fit most carów models
Usage warnings:
Warning 1. Read the operating instructions and labels before starting work. 2. Attention! Exhaust gas is toxic. Do not operate the generator indoors without adequate ventilation. 3. Keep children away from the generator. 4. Do not refill fuel and oil while the generator is running. 5. If the generator will be placed in a closed room, measures must be taken to prevent fire and explosion. 6. Do not connect the generator to the home electrical network. 7. Do not use the generator in high humidity conditions. 8. Keep flammable products away from the generator. 9. When refueling: - stop the engine, - do not smoke, - do not spill fuel.1. Always wear safety goggles during setup and usage of the product. 2. Before use, read and understand to all warnings and safety precautions in the user manual. 3. Check any leakage of pipes and adapters. 4. Before connect to the air supply make sure all valves and switches are in the "OFF" position. 5. Do not exceed 0,8 MPa / 0,18 MPa maximum air pressure of extraction / tank ejection. 6. The temperature for engine oil should be between 40℃ and 60℃ before extraction. 7. Do not use this machine for uses which are not indicated in the manual. 8. Follow local regulations for proper disposal of used oil. Used engine oil should be properly disposed or recycled. Contact your local waste authority for information on recycling. Never reuse an old engine oil.
