80w soldering iron for 900m arrowhead with lcd display and temperature control 50-480c

Precision crank soldering iron with push-button temperature control, suitable for the very popular 900M series interchangeable soldering tips.

Functions:

• Temperature stabilization function: enables you to maintain the set temperature of the soldering tip under different conditions of heat demand to make a proper soldering joint. The tip depending on the size of the soldered component gives off more or less heat, and the device with the help of a built-in tip temperature sensor continuously reads its real value and compares it to the set temperature, then depending on the needs, increases or decreases the power consumption to maintain the set temperature.

• Temperature calibration function: allows you to recalibrate the built-in temperature sensor. Depending on the quality, size and wear of the arrowhead, the discerning user with the help of the temperature measuring device can calibrate the sensor himself. The correct reading not only has a positive effect on temperature stability, but also helps the experienced user avoid the error of overheating the connection in PCBs.

Temperature calibration on YT-82701: briefly press the red button, then use the temperature adjustment buttons to set the real temperature of the arrowhead and wait about 3 seconds to confirm the setting. During the calibration process, the temperature on the display blinks.

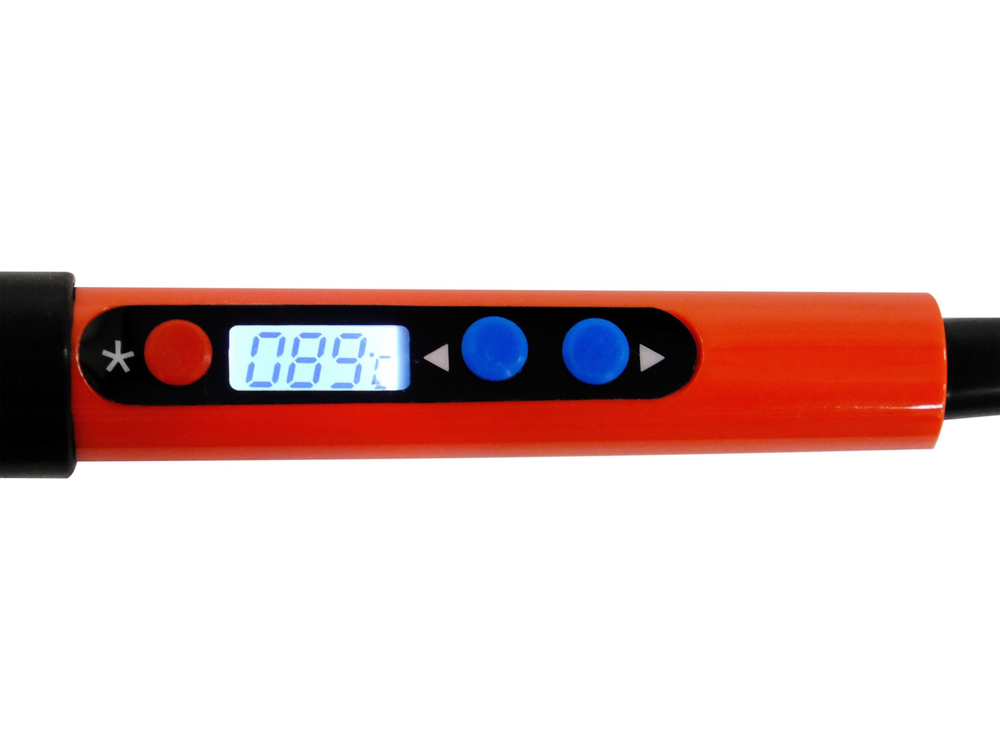

Built-in LCD display

Displays the set and then the actual temperature of the mainsheet, and allows you to perform temperature calibration.

Additional information:

• power: 80 W
• temperature range: 50 - 480°C
• temperature accuracy: +-2°C
• temperature stabilization
• temperature calibration
• .ceramic heater
• button on-off
• cable length: 1 m

The YT-82701 flask soldering iron heats up to an operating temperature of 350°C in approximately 20 seconds
