YT-71000
DIGITAL LEVEL ALUMINIUM BOX WITH TWO SIDES MAGNETS
Brand
Symbol
YT-71000
Producer code
5906083078019
Series
Scope of the measured angle
360 ( 4x90) ˚
Measuring accuracy
0.01 ˚
The accuracy of the measured angle
0 / 90˚: ± 0.1˚; 1° - 89°: ± 0,2° ˚
Measuring unit
Steps, millimeters / meters, percentage of inclination, slope in the imperial system of measures on the foot
Dimensions
58x58x32 mm
Material
aluminium
Magnet
Yes, in the base
Display type
illuminated LCD
Backlight
Yes
Power supply
battery
Type of battery
2x1.5V; AAA
Functions
zeroing and relative angle measurement, maintenance of the measurement result on the screen
Automatic switching off
3 min
Operating temperature range
0~40 ˚C
Storage temperature
-10 ~ +50 ˚C

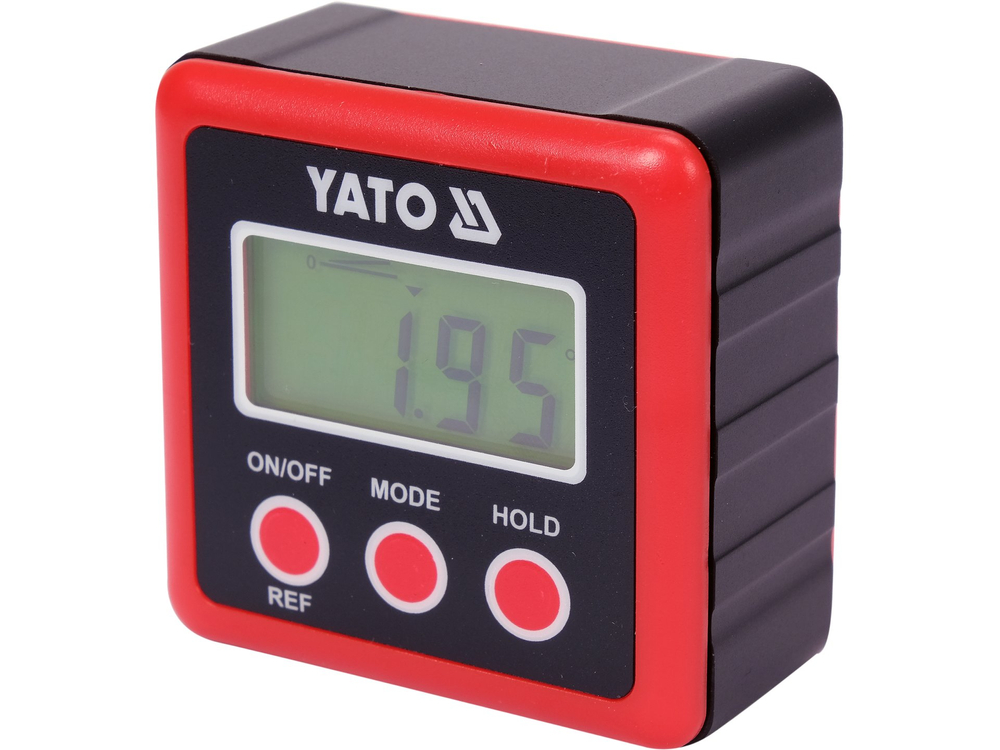

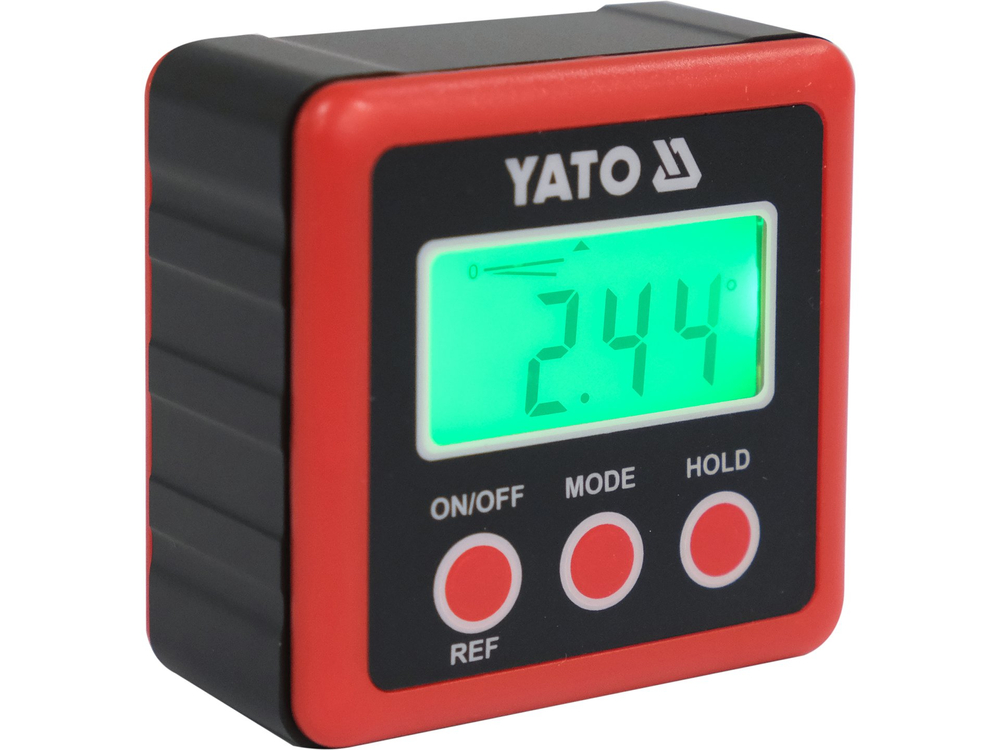

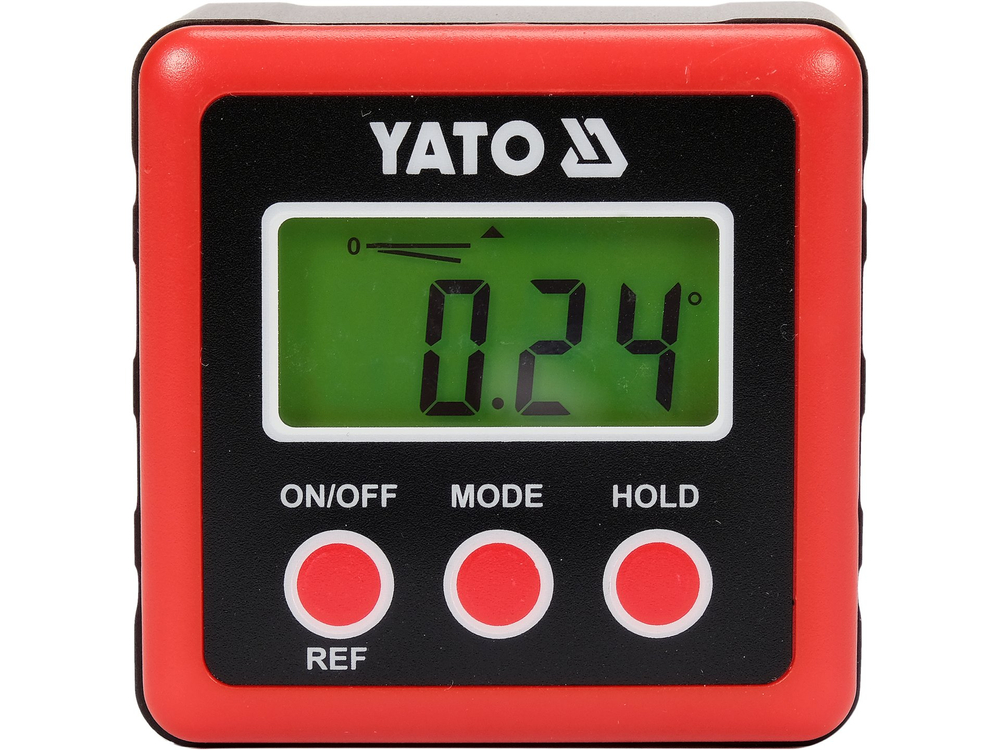

Electronic angle meter with magnet
- body made of aluminum
- strong magnets are mounted in the base
- body dimensions approx. 58 x 58 x 32 mm
- measuring range 4 x 90°
- display resolution +/- 0.01°
- .measurement accuracy +/- 0.1° for 0-90°
- power supply 2 batteries 1.5 v type AAA
- weight 71g
Accessible functions:
- changing units of measurement
- result in degrees, percent, (mm/m, in/ft)
- lighting of the screen
- locking measurement
Magnetic mounting allows for precise alignment of, for example, a circular saw and efficient assembly work on steel structures.
For taking quick and accurate measurements during construction,renovation and assembly work.
Particularly suitable for the use in the construction industry
Particularly for setting up steel structures, machinery or setting up circular saws.
For quick and accurate measurements during construction,repair and installation work.
According to the enclosed instructions for use.
According to the enclosed instructions for use.
